LPJK4036A4NL 1000 base-t gigabit rj45 magjack tab up green&yellow green&yellow led
Click to open expanded view

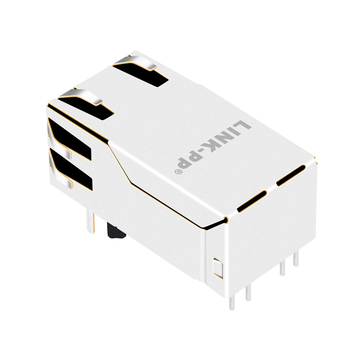

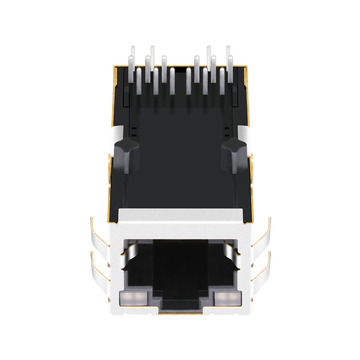

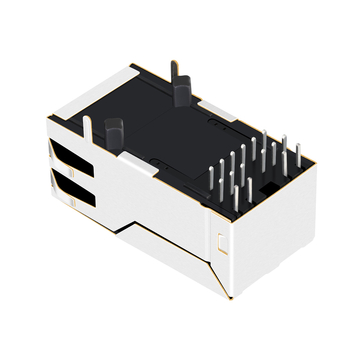

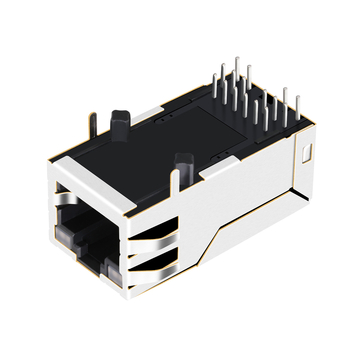

LPJK4036A4NL 1000 Base-T Gigabit RJ45 Magjack Tab Up Green&Yellow/Green&Yellow LED

Product summary

Product
LPJK4036A4NL 1000 Base-T Gigabit RJ45 Magjack Tab Up Green&Yellow/Green&Yellow LED
SKU
178852
P/N
LPJK4036A4NL
Price
$ 4.41
Stock
4500 in Stock
Sold
15.6K
Unit price $ 4.41
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK4036A4NLSKU: 178852

LINK-PP originalDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJK4036A4NL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.410
1–99 pcs
$ 3.616
100–599 pcs
$ 3.175
600–1,199 pcs
$ 2.426
1,200–5,999 pcs
$ 2.073
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
4500 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 4.41
Packaging Details
60 pcs
840 pcs
Tray
37×30×30 cm
0.011 kg
9 kg

LINK-PP LPJK4036A4NL Gigabit RJ45 Mag jack connector 1000 Base-T (Length 32.5mm,1x1 Port, Tab Up, Green&Yellow/Green&Yellow Led)

The LPJK4036A4NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, , Ethernet Control and Game Controller.

LINK-PP Part Number LPJK4036A4NL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 12p8c (RJ45, Ethernet) Application-Lan Ethernet( NoN PoE )
Number of Ports 1x1 Port Speed 10/100/1000 Base-T
Latch UP Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green&Yellow/Green&Yellow

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.531/13.50 Package Length (Inches/mm)

1.280/32.50

Package Width (Inches) 0.650/16.50 Temperature

-40℃ TO 85℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJK4036A4NL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Height is 13.50 mm and the front is 16.50 mm wide, which cleared the gland plate. We had 20 mm of depth behind the cover and the boot folded into it. Forty boxes were reworked this way. by LINK-PP Technical Support
  • A:
    The box sits on the crane leg and the steel reaches 62℃ on an August afternoon. Our board runs near 71℃ inside. The part is rated to 85℃, so there is margin left at the top. by LINK-PP Technical Support
  • A:
    Each side has a green and a yellow lens. The fitter reads link and traffic from either end of the box. Green follows the link and yellow follows activity on the pair. A dark lens means that side lost its partner. by LINK-PP Technical Support
  • A:
    The board sits under a lid that opens upward, so the plug has to leave from the top. With the clip on top the lead rises into the cable duct above the card. Nothing presses on the latch when the lid shuts. by LINK-PP Technical Support
  • A:
    The plug we buy has twelve positions even though gigabit uses eight. The extra four carry the down lamp return and a spare pair. Fitting a twelve position mouth means one part number covers both builds. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    24 Reviews

  • 5 Stars
    92%
    4 Stars
    8%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (24)
No data
G***s
Verified Purchase
5.0
2026-11-15
Single port on a plain front, no lamp to mask. Both lamps lit first try.
M***t
Verified Purchase
5.0
2026-07-06
Bench test was about the twelve contacts. We use eight for the pairs and leave four open, which keeps the footprint compatible with the 10p8c jacks on the same board. No stub, no reflection worth chasing. Insertion force felt the same as the older part.
K***d
Verified Purchase
5.0
2025-12-01
Width was the only niggle: 16.50 mm is 0.57 mm wider than the old jack, so the bezel opening grew. Once redrawn the panel closed up clean. It sat within spec on the press force. :-)
R***d
Verified Purchase
5.0
2025-08-24
Tab up latch, releases from the top where the hand goes. Right angle worked as advertised on the rail.
Q***y
Verified Purchase
5.0
2025-02-17
LPJK4036A4NL sat on the old 16.50 mm pads without a re-route. It cleared the rail as advertised.
