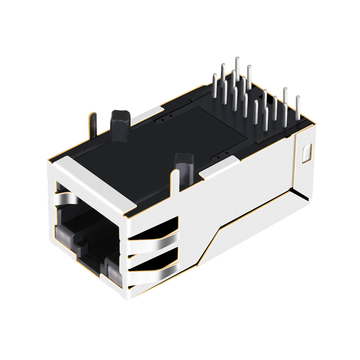

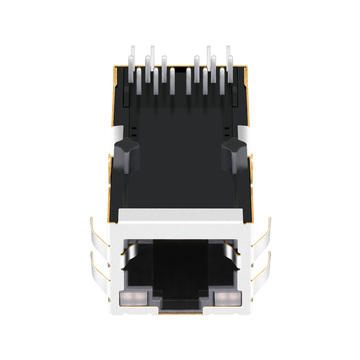

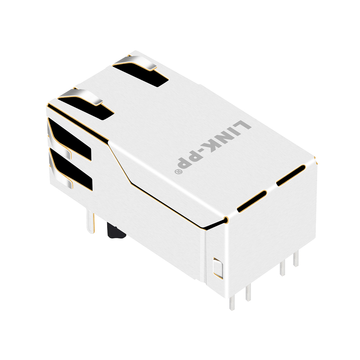

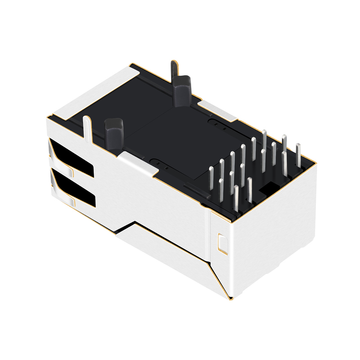

LPJK0036A4NL 1000 base-t gigabit rj45 magjack tab up green&yellow green&yellow led
Click to open expanded view

LPJK0036A4NL 1000 Base-T Gigabit RJ45 Magjack Tab Up Green&Yellow/Green&Yellow LED

Product summary

Product
LPJK0036A4NL 1000 Base-T Gigabit RJ45 Magjack Tab Up Green&Yellow/Green&Yellow LED
SKU
178850
P/N
LPJK0036A4NL
Price
$ 4.41
Stock
1100 in Stock
Sold
29K
Unit price $ 4.41
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK0036A4NLSKU: 178850

LINK-PP originalDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJK0036A4NL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.410
1–99 pcs
$ 3.616
100–599 pcs
$ 3.175
600–1,199 pcs
$ 2.426
1,200–5,999 pcs
$ 2.073
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1100 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 4.41
Packaging Details
60 pcs
840 pcs
Tray
37×30×30 cm
0.011 kg
9 kg

LPJK0036A4NL 1000 Base-T Gigabit RJ45 Magjack Tab Up Green&Yellow/Green&Yellow LED

The LPJK0036A4NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, , Ethernet Control and Game Controller.

LINK-PP Part Number LPJK0036A4NL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 12p8c (RJ45, Ethernet) Application-Lan Ethernet( NoN PoE )
Number of Ports 1x1 Port Speed 10/100/1000 Base-T
Latch UP Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green&Yellow/Green&Yellow

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.531/13.50 Package Length (Inches/mm)

1.280/32.50

Package Width (Inches) 0.650/16.50 Temperature

0℃ TO 70℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJK0036A4NL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Our panel slot is 17 mm, so the body slides in with 0.5 mm of play each side. A wider part would have needed a new stamping. The cutout on the second loom line was already that size. Both lines use this one part now. by LINK-PP Technical Support
  • A:
    The loom shakes at 8 Hz through every pick. Our plug has stayed seated for five months across three shifts. The clip sits on top, so gravity works with it. We have replaced no cable in that time. by LINK-PP Technical Support
  • A:
    Twelve contacts cover the four pairs with room for the fault line. Our harness uses eight of them and leaves four idle. That spare capacity let us add a second hook bank later. No new connector was needed. by LINK-PP Technical Support
  • A:
    The shell runs 32.50 mm back from the mouth, deeper than the small parts we used. Our cabinet has 36 mm behind the panel. The body clears the relay bank by 3 mm. We checked that on the drawing before ordering. by LINK-PP Technical Support
  • A:
    Each side holds a green and a yellow lens, so four lamps report on one mouth. Our panel drives green for the link and yellow for a hook fault. The other side mirrors the pair. The window has four holes cut to match. by LINK-PP Technical Support
  • A:
    One loom carries 2,688 hooks and the pattern file is 40 MB. On a hundred megabit link a pattern change took 6 minutes. Gigabit brought that under 40 seconds. Our mill now switches patterns between shifts. by LINK-PP Technical Support

Customer Reviews

  • 5

    24 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (24)
No data
H***t
Verified Purchase
5.0
2026-11-15
The window is the reason we picked this one. Each lens carries green and yellow, which gives us four states from two lamps: green alone is link at 1G, yellow alone is 100 megabit, both lit is activity. Our panel legend fits one line. No fuss getting the link up.
V***k
Verified Purchase
5.0
2026-08-25
Twelve positions in the mouth, eight of them loaded. It pinned out first time.
D***n
Verified Purchase
5.0
2026-03-08
LPJK0036A4NL took the cutout square, no filing needed. It sat within spec on the height.
J***y
Verified Purchase
5.0
2026-01-15
Side entry let us keep the jack on the board edge. The plug enters from the panel and the boot stays outside. All three lines on our list closed. It cleared the rail as advertised. :D
N***m
Verified Purchase
4.0
2025-08-13
The inner bag was torn, though all ten bodies were in their sleeves. Eight cores carried 1G on a 45 m run with no retrain. No surprises once the reel was open.
