LPJG4806EBNL 100 1000 base-t rj45 magjack tab down green yellow led
Click to open expanded view

LPJG4806EBNL 100/1000 Base-T RJ45 Magjack Tab Down Green/Yellow LED

Product summary

Product
LPJG4806EBNL 100/1000 Base-T RJ45 Magjack Tab Down Green/Yellow LED
SKU
178672
P/N
LPJG4806EBNL
Price
$ 2.83
Stock
4778 in Stock
Sold
15.3K
Unit price $ 2.83
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJG4806EBNLSKU: 178672

LINK-PP originalDatasheetAll downloads

Compatible P/N:
LPJG4806EBNL
Volume pricing Online tiers · larger qty or custom price on request
$ 2.830
1–99 pcs
$ 2.319
100–599 pcs
$ 2.036
600–1,199 pcs
$ 1.555
1,200–5,999 pcs
$ 1.329
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
4778 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.83
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.008 kg
9 kg

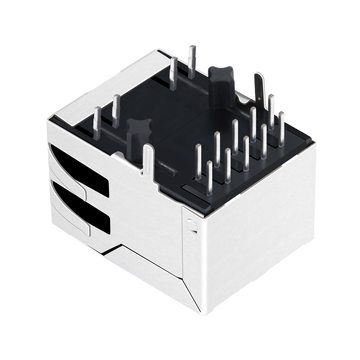

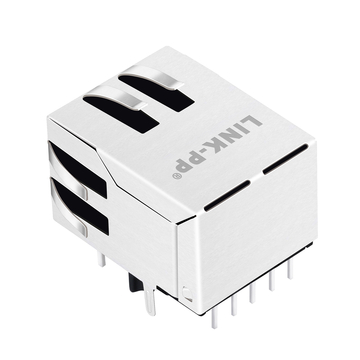

LINK-PP LPJG4806EBNL 100/1000 Base-T Gigabit magnetics jack rj45 pcb mount connector (Single Port,Tab Down, Green/Yellow Led)

The LPJG4806EBNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number LPJG4806EBNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 1000 Base-T
Latch Down Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs Without LED Option

Green/Yellow

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.528/13.40 Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm) 0.626/15.90 Temperature

-40℃ TO 85℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG4806EBNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:

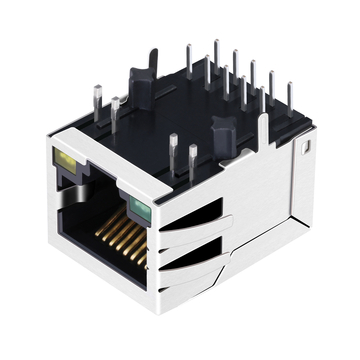

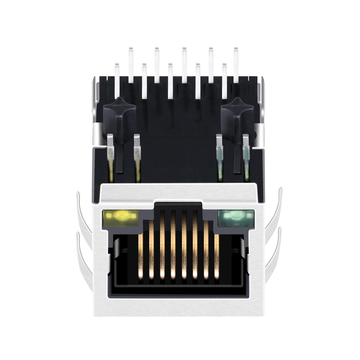

    A green lens and a yellow lens sit either side of the clip above the mouth. Our door window is cut to that spacing. The green one reports the link, the yellow one a scale fault. The legend runs the same way. by LINK-PP Technical Support
  • A:
    The site sees -15℃ on January mornings and the cabinet has no heater. This part is rated to -40℃. The link came up on every cold start and the batching ran on time. No retrain appeared in our log. by LINK-PP Technical Support
  • A:
    The cabinet sits beside the aggregate hopper and the air is grey all day. Our plug has a boot and the door gasket seals the plate. We found no grit on the contacts after a season. The mouth still grips the plug. by LINK-PP Technical Support
  • A:
    The cabinet is mild steel and the lid gasket presses the shell at the cutout wall. Our EMC scan stayed inside limits with no fingers at all. That kept the mould simple. The bond read under 0.06 ohm. by LINK-PP Technical Support
  • A:
    Six load cells and two moisture probes feed the batch controller every 200 ms. On a hundred megabit link the weight display lagged the scale by a beat. Gigabit took the lag out. Our operator trusts the readout now. by LINK-PP Technical Support

Customer Reviews

  • 5

    32 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (32)
No data
J***t
Verified Purchase
4.0
2026-11-15
The reel flange was bent on one side, though all bodies were sealed. The mounting posts carried ground to our plane and 8 cores held 1G on a 50 m run. The parts were exactly as described.
D***n
Verified Purchase
5.0
2026-05-15
Latch down keeps the boot outside the plate. The panel cut matched the drawing.
T***n
Verified Purchase
5.0
2026-03-07
Our checklist wanted 1G, a blind plate and a 13.40 mm body. This one met all 3. The posts press into the board and the can sits flat. It sat within spec on the height. :-)
Y***y
Verified Purchase
5.0
2025-08-03
LPJG4806EBNL has no tabs, so the posts carry ground. The plug seats flush, as described.
S***n
Verified Purchase
5.0
2025-05-01
Cold start at -40 ℃. The second order matched the first on the meter.
