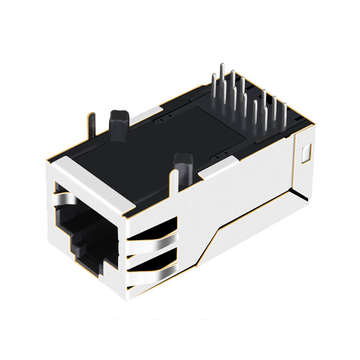

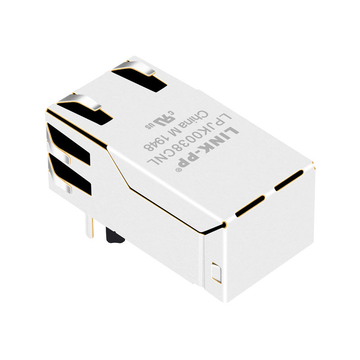

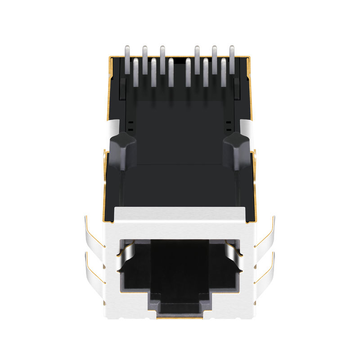

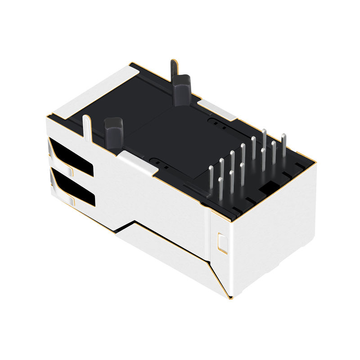

LPJK0038CNL 10 100 1000 base-t gigabit rj45 magjack tab up without led

LPJK0038CNL 10/100/1000 Base-T Gigabit RJ45 Magjack Tab Up Without LED

Product summary

Product
LPJK0038CNL 10/100/1000 Base-T Gigabit RJ45 Magjack Tab Up Without LED
SKU
169818
P/N
LPJK0038CNL
Price
$ 4.36
Stock
1200 in Stock
Sold
8.5K
Unit price $ 4.36
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK0038CNLSKU: 169818

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJK0038CNL
0813-1X1T-A6
Compatible:
LINK-PP
Volume pricing Online tiers · larger qty or custom price on request
$ 4.360
1–99 pcs
$ 3.574
100–599 pcs
$ 3.138
600–1,199 pcs
$ 2.397
1,200–5,999 pcs
$ 2.049
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1200 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 4.36
Packaging Details
60 pcs
960 pcs
Tray
37×30×30 cm
0.011 kg
10.1 kg

LINK-PP LPJK0038CNL 100/1000 Base-T Shielded RJ45 Magjack for Smart Meters and Satellite (1x1 Port, Tab Up, Without Led)

The LPJK0038CNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Automation, , Ethernet Control and Game Controller.

LINK-PP Part Number: LPJK0038CNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 12p8c (RJ45, Ethernet) Application-Lan Ethernet( NoN PoE )
Number of Ports 1x1 Port Speed 10/100/1000 Base-T
Latch UP Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Without Leds

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.531/13.50 Package Length (Inches/mm)

1.280/32.50

Package Width (Inches) 0.654/16.60 Temperature

0℃ TO 70℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJK0038CNL Drawing LPJK0038CNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Nothing changed, since the mating plug is still an ordinary RJ45. Our crimp tool and dies worked as before. The extra positions never see a plug contact. A hundred leads came out with no rejects. by LINK-PP Technical Support
  • A:
    It releases on the top face, so you need clear space there. In our stack we kept 8 mm between the decks. The clip opened without touching the upper board. Below that gap we would test before committing. by LINK-PP Technical Support
  • A:
    They are not. They come out as separate tails at the back of the body. We joined them to the chassis plane on our board. Leaving them floating also worked but gave a worse common mode reading. by LINK-PP Technical Support
  • A:
    Compare it with the LPJG0813CNL if you want a lamp option in the same envelope. That part is 13.40 mm high against 13.50 here. The pin field and the 12p8c block are close enough to swap. Ask their team for the drawing overlay before you commit. by LINK-PP Technical Support
  • A:
    You lose the visual link check and nothing electrical. We read port state from the switch firmware instead. On the bench a cable tester at the far end covered us. The magnetics and the contacts are the same as the lit version. by LINK-PP Technical Support
  • A:
    It can, since only eight contacts carry the four pairs. The four extra positions sit outside the plug body on our board. We tied them to the shield rather than leaving them open. That kept the return path short. by LINK-PP Technical Support

Customer Reviews

  • 5

    62 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (62)
No data
M***n
Verified Purchase
5.0
2026-11-13
Twelve positions, eight cores, and the gigabit link trained. No surprises on the turns ratio.
S***g
Egypt
Verified Purchase
5.0
2026-03-28
Gigabit on eight cores, a clean run with no renegotiation.
C***n
Turkey
Verified Purchase
5.0
2025-10-10
Latch up and twelve positions, a clean match for our connector.
M***s
New Zealand
Verified Purchase
5.0
2025-04-11
The tabs bond at the cutout, and the scan floor stayed low. We had worried that 16.6 millimetres of shell would pick up more. It did not, a clean result :)
M***d
Republic of Korea
Verified Purchase
5.0
2024-11-18
Gold contacts, clean option.
