LPJK0036A47NL 100 1000 base-t tab up 1x1 port shielded rj45 female connector with yellow&green yellow&green led

LPJK0036A47NL 100/1000 Base-T Tab Up 1x1 Port Shielded RJ45 Female Connector With Yellow&Green/Yellow&Green Led

Product summary

Product
LPJK0036A47NL 100/1000 Base-T Tab Up 1x1 Port Shielded RJ45 Female Connector With Yellow&Green/Yellow&Green Led
SKU
155459
P/N
LPJK0036A47NL
Price
$ 4.41
Stock
3400 in Stock
Sold
600
Unit price $ 4.41
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK0036A47NLSKU: 155459

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJK0036A47NL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.410
1–99 pcs
$ 3.615
100–599 pcs
$ 3.174
600–1,199 pcs
$ 2.425
1,200–5,999 pcs
$ 2.072
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3400 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 4.41
Packaging Details
60 pcs
840 pcs
Tray
37×30×30 cm
0.011 kg
9 kg

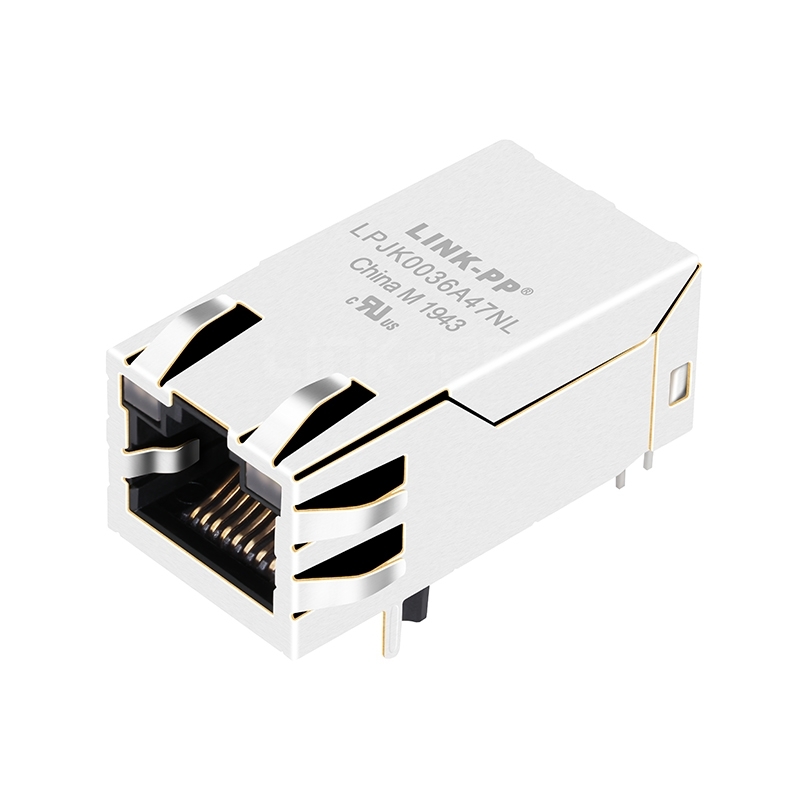

LINK-PP LPJK0036A47NL 100/1000 Base-T Shielded RJ45 Female Connector for Media Player and Game Controller (Length 32.5mm,1x1 Port, Tab Up, Yellow&Green/Yellow&Green Led)


The LPJK0036A47NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, , Ethernet Control and Game Controller.


LINK-PP Part Number:
LPJK0036A47NL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
12p8c (RJ45, Ethernet) Application-Lan
Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UPCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow&Green/Yellow&Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches)
0.654/16.60Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJK0036A47NL Drawing LPJK0036A47NL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    There are two tabs, one on each side of the shell. Both bent outward and met the chassis spring on our bracket. We measured continuity on each side separately. The rear of the shell is open, so the sides carry the ground. by LINK-PP Technical Support
  • A:
    They can if you accept both lighting at once. We wanted link and activity apart, so we used two outputs. A single output works fine for a simple on or off indication. Our driver sank about 4 mA on each lead. by LINK-PP Technical Support
  • A:
    The mating area comes in six, fifteen or thirty micro inch gold. We ordered the fifteen micro inch option for this product. Our field returns over a year showed no wear through. Thirty would suit a part that gets plugged daily. by LINK-PP Technical Support
  • A:
    Each colour has its own pair of leads behind the body. We found eight leads in total, two pairs on each side of the port. That let us drive link and activity separately. The common legs are marked on our drawing. by LINK-PP Technical Support
  • A:
    It does not, the plug that mates with it is an ordinary eight contact RJ45. The four extra positions in the jack sit outside the plug body. So your existing crimp tool and dies still work. We built a hundred leads with ours. by LINK-PP Technical Support
  • A:
    Both sides carry the same pair on this part number. That is why the drawing shows yellow and green twice. We wired the left pair to link and the right pair to activity. The panel read the same from either side of the row. by LINK-PP Technical Support
