LPJ46201AENL 10 100 base-t tab down green yellow led 1x4 ethernet port rj45 connector

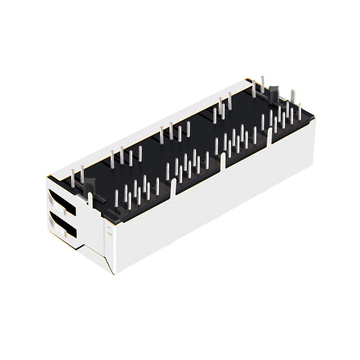

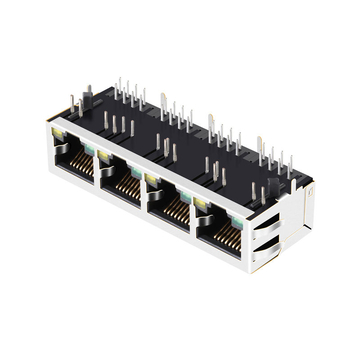

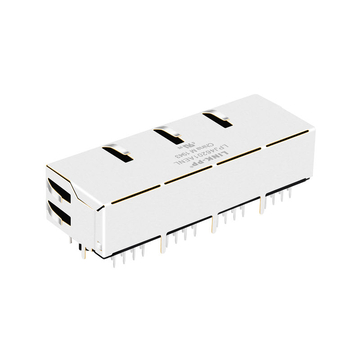

LPJ46201AENL 10/100 Base-T Tab Down Green/Yellow LED 1x4 Ethernet Port RJ45 Connector

Product summary

Product
LPJ46201AENL 10/100 Base-T Tab Down Green/Yellow LED 1x4 Ethernet Port RJ45 Connector
SKU
155156
P/N
LPJ46201AENL
Price
$ 7.58
Stock
3462 in Stock
Sold
37.8K
Unit price $ 7.58
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ46201AENLSKU: 155156

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJ46201AENL
Volume pricing Online tiers · larger qty or custom price on request
$ 7.580
1–99 pcs
$ 6.218
100–599 pcs
$ 5.460
600–1,199 pcs
$ 4.171
1,200–5,999 pcs
$ 3.564
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3462 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 40
Total Price:
$ 7.58
Packaging Details
40 pcs
360 pcs
Tray
33×33×21 cm
0.023 kg
8.3 kg

LINK-PP LPJ46201AENL 10/100 Base-T Ethernet Port RJ45 Connector for Network Card and Hub (1x4 Port , Tab Down,Green/Yellow LED)


The LPJ46201AENL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Hub, Network Card,Ethernet Control and Monitoring System.


LINK-PP Part Number:
LPJ46201AENL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x4 PortSpeed
10/100 Base-T
Latch
DownCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.533/13.55Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
2.328/59.12
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJ46201AENL Drawing LPJ46201AENL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    One placement, one part number, guaranteed alignment, and a damaged contact takes the whole block off the board. Where volumes are low and the equipment has a long life ahead of it, single port replacement can justify the extra assembly. by LINK-PP Technical Support
  • A:
    No. Both are RJ45 interfaces; the difference is how the contacts are populated, not the rate. Ten out of a hundred uses two pairs. Reading the contact count as a speed rating is a common mistake and an expensive one when the wrong part reaches production. by LINK-PP Technical Support
  • A:
    Because two greens make you look twice. Green for link and yellow for activity gives two answers in one glance, which matters on a rack at night. It costs nothing at the connector and it is the cheapest diagnostic change we have made. by LINK-PP Technical Support
  • A:
    When the edge is short. Four ports across 59.12mm fit a space that six would overrun, and the shorter body leaves room for a power entry or a second row. You give up density and gain layout freedom, which is the right trade on a product that ships in modest volume. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    17 Reviews

  • 5 Stars
    88%
    4 Stars
    12%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (17)
No data
L***k
Singapore
Verified Purchase
5.0
2026-11-15
The tray sits under this board, so tab down was the only workable choice. Four ports in 59.12 mm saved us three separate jacks, and the LEDs sit above each opening.
K***k
Indonesia
Verified Purchase
4.0
2026-11-01
One carton shell had a bent tab, but four ports linked clean at 10/100.
S***n
Malaysia
Verified Purchase
4.0
2026-11-01
Works fine, but a damaged contact means replacing the whole block rather than one port.
S***n
India
Verified Purchase
5.0
2026-10-23
Four ports, green and yellow.
M***g
Viet Nam
Verified Purchase
5.0
2026-02-14
The 59.12mm body is shorter than the 1x6, which mattered on a board with a tight edge.
