LPJ46401BENL 10 100 base-t tab down green yellow led 1x4 port rj45 filter connector module

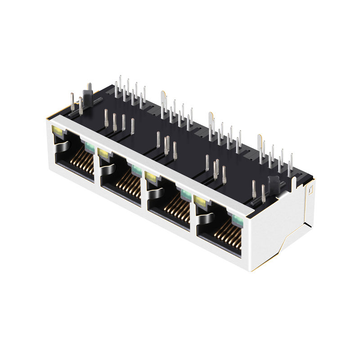

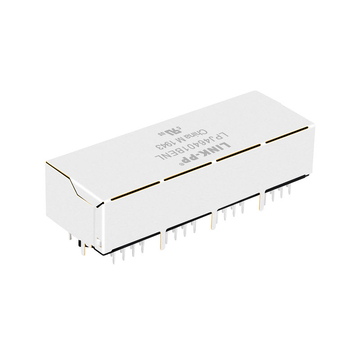

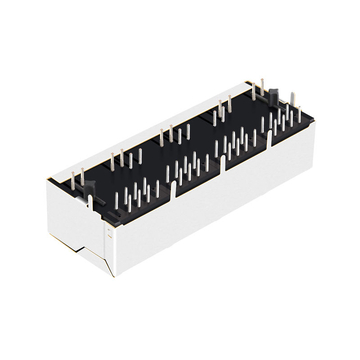

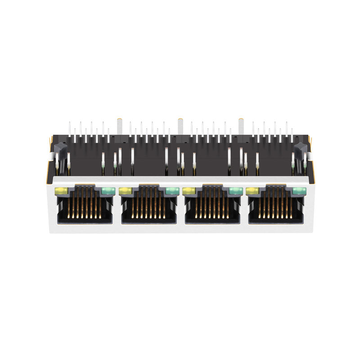

LPJ46401BENL 10/100 Base-T Tab Down Green/Yellow LED 1x4 Port RJ45 Filter Connector Module

Product summary

Product
LPJ46401BENL 10/100 Base-T Tab Down Green/Yellow LED 1x4 Port RJ45 Filter Connector Module
SKU
155152
P/N
LPJ46401BENL
Price
$ 8.47
Stock
5200 in Stock
Sold
850
Unit price $ 8.47
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ46401BENLSKU: 155152

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJ46401BENL
Volume pricing Online tiers · larger qty or custom price on request
$ 8.470
1–99 pcs
$ 6.942
100–599 pcs
$ 6.096
600–1,199 pcs
$ 4.656
1,200–5,999 pcs
$ 3.979
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
5200 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 40
Total Price:
$ 8.47
Packaging Details
40 pcs
360 pcs
Tray
33×33×21 cm
0.023 kg
8.3 kg

LINK-PP LPJ46401BENL 10/100 Base-T Filter Connector Module for Hard Disk Players and Internet Of things Gateways (1x4 Port , Tab Down,Green/Yellow LED)


The LPJ46401BENL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as VoIP Gateways, PoE Repeater,DVD and Webcams.


LINK-PP Part Number:
LPJ46401BENL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x4 PortSpeed
10/100 Base-T
Latch
DownCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.533/13.55Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
2.328/59.12
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ46401BENL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The yellow lamp reads clearly through a 2 mm smoked polycarbonate window, which is what our door uses. Green is dimmer at the edge of the window but still visible. We kept the lamps on the upper edge for that reason. by LINK-PP Technical Support
  • A:
    The board hangs under a shelf. A tab down part lets the cable drop away from the door. A tab up version pushed the boots into the hinge. Since the swap the door has closed without pinching a cord. by LINK-PP Technical Support
  • A:
    The four mouths are cut into one metal strip, and the spacing is fixed by the die. Our board house placed the pads from the drawing and every mouth lined up. We did not need a jig on the line. by LINK-PP Technical Support
  • A:
    Each lane uses four of the eight contacts, so the block is fully wired for four links. Our sort line runs three lanes and keeps the fourth for a spare. Nothing on the board sits unused. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    16 Reviews

  • 5 Stars
    88%
    4 Stars
    13%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (16)
No data
S***e
Saudi Arabia
Verified Purchase
5.0
2026-11-14
Four ports fitted as one module worked well in the chassis rail.
S***y
Greece
Verified Purchase
5.0
2026-10-19
Latch down, handy with the door hinge.
M***n
Turkey
Verified Purchase
5.0
2026-10-19
This is the four port version of a six port block we also buy, and the two are not interchangeable mechanically. The height differs by 0.05mm and the width by 28mm, so you cannot swap one for the other in an existing panel. We keep both because our product line has two enclosure sizes. Otherwise the electrical performance is the same, same ratio, same LED scheme, same magnetics.
E***t
Romania
Verified Purchase
5.0
2026-02-22
We order these in batches of 200 for a product that has been in production for six years. Consistency is what I care about, and the last four lots have been identical, same LED brightness, same insertion loss, same latch feel. What I check on receipt is the LED legs, because they are the most fragile part of the assembly and a bent leg is a rework. Two out of twenty in one lot needed straightening, which is normal for a through hole part.
M***n
Czech Republic
Verified Purchase
5.0
2026-02-03
We build industrial switches with four ports and this four port block is the entire front face of the unit. Having the transformer and the LEDs in one part means four fewer placements per port and no separate light pipe to lose on the line. The 59.12mm width is what our extrusion was designed around, and the 13.55mm height clears the lid with 0.5mm to spare, which is tighter than I would like but it works.
