LPJG16459BDNL 100 1000 base-t gigabit rj45 magjack tab up yellow green led

LPJG16459BDNL 100/1000 Base-T Gigabit RJ45 Magjack Tab Up Yellow/Green LED

Product summary

Product
LPJG16459BDNL 100/1000 Base-T Gigabit RJ45 Magjack Tab Up Yellow/Green LED
SKU
155132
P/N
LPJG16459BDNL
Price
$ 3.35
Stock
4150 in Stock
Sold
850
Unit price $ 3.35
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG16459BDNLSKU: 155132

LINK-PP original3D ModelAll downloads

Compatible:
Pulse
LINK-PP
Compatible P/N:
LPJG16459BDNL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.350
1–99 pcs
$ 2.748
100–599 pcs
$ 2.413
600–1,199 pcs
$ 1.843
1,200–5,999 pcs
$ 1.575
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
4150 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.35
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.008 kg
9 kg

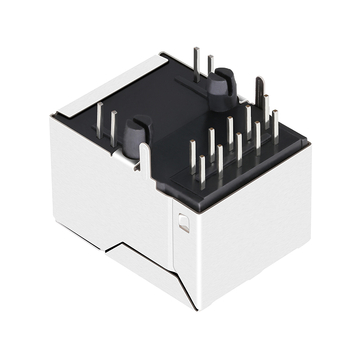

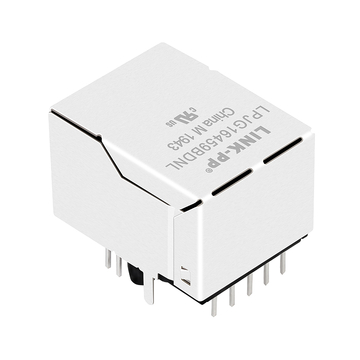

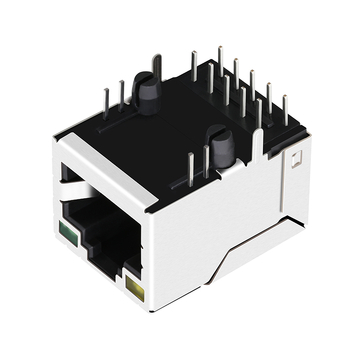

LINK-PP LPJG16459BDNL 100/1000 Base-T Gigabit ethernet jack with magnetics for Industrial PC and Fieldbus System (Single Port, Tab UP, Yellow/Green Led)

The LPJG16459BDNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number: LPJG16459BDNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 10/100/1000 Base-T
Latch UP Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs Without LED Option

Yellow/Green

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.530/13.45 Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm) 0.628/15.95 Temperature

-40℃ TO 85℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

3D Model LPJG16459BDNL.zip
3D Model LPJG16459BDNL.glb

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    This jack is listed for -40℃ to 85℃. That range covers both a cold store and a hot cabinet. We have units in a chiller aisle running at gigabit. Nothing drifted in the link over a full season. by LINK-PP Technical Support
  • A:
    Depth from the face to the solder tails is 21.25 mm. Height is 13.45 mm and the face measures 15.95 mm across. Those numbers matched the cutout we already had, so no plate change was needed. by LINK-PP Technical Support
  • A:
    Yes, the shell has no fingers, so the plate does not need a finger cut. The bond comes through the retaining posts. We ran 300 of them on steel plates with no bonding issue at all. by LINK-PP Technical Support
  • A:

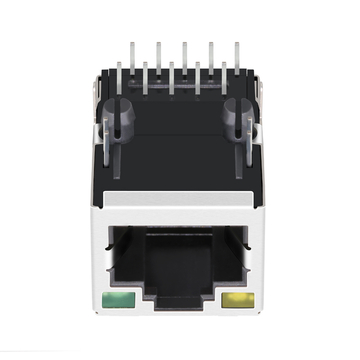

    There are two lamps, yellow on one side and green on the other. They sit above the mouth and read link and traffic. A bare plate version exists, but this one ships with both lenses already fitted. by LINK-PP Technical Support
  • A:
    The part is rated for 100/1000 Base-T, and our boards negotiate at gigabit without a manual setting. All four pairs are landed on eight cores. On a 60 m run the link came up at gigabit on the first attempt. by LINK-PP Technical Support

Customer Reviews

  • 5

    83 Reviews

  • 5 Stars
    99%
    4 Stars
    1%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (83)
No data
H***n
Norway
Verified Purchase
4.0
2026-11-16
One of the twelve had a bent latch, yet every unit trained a clean 1G on the bench.
X***y
Turkey
Verified Purchase
5.0
2026-07-27
Twelve units at -40℃ in a cold store and every port still trains a clean 1G. =)
K***t
Malaysia
Verified Purchase
5.0
2025-12-18
Eight cores per port proved handy on the gigabit link.
F***d
Republic of Korea
Verified Purchase
5.0
2025-07-31
Handy cold rated jack, no tabs.
P***u
United States
Verified Purchase
5.0
2025-03-15
Yellow and green lamps read clean through our dark bezel.
