LPJK0036A78NL 100 1000 base-t tab up yellow green led 1x1 port rj45 connector module

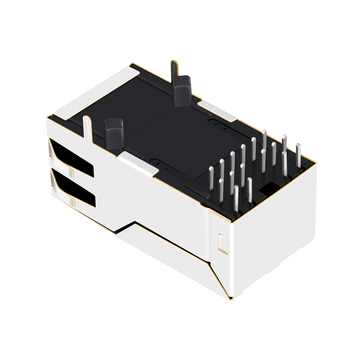

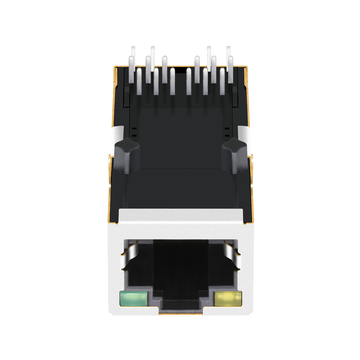

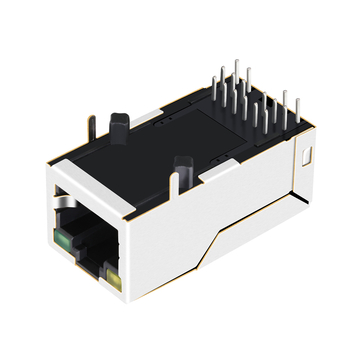

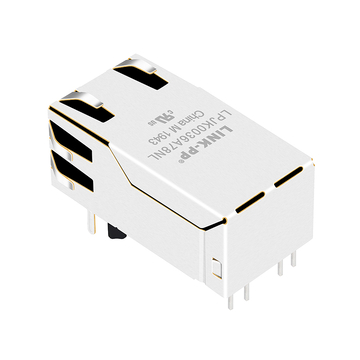

LPJK0036A78NL 100/1000 Base-T Tab Up Yellow/Green Led 1x1 Port RJ45 Connector Module

Product summary

Product
LPJK0036A78NL 100/1000 Base-T Tab Up Yellow/Green Led 1x1 Port RJ45 Connector Module
SKU
151338
P/N
LPJK0036A78NL
Price
$ 4.41
Stock
1000 in Stock
Sold
7K
Unit price $ 4.41
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK0036A78NLSKU: 151338

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJK0036A78NL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.410
1–99 pcs
$ 3.615
100–599 pcs
$ 3.174
600–1,199 pcs
$ 2.425
1,200–5,999 pcs
$ 2.072
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1000 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 4.41
Packaging Details
60 pcs
840 pcs
Tray
37×30×30 cm
0.011 kg
9 kg

LINK-PP LPJK0036A78NL 100/1000 Base-T RJ45 Connector Module for Solar Inverter and Switches (1x1 Port, Tab Up, Yellow/Green Led)


The LPJK4036AGNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Home, , Solar Inverter and Game Controller.


LINK-PP Part Number:
LPJK0036A78NL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
12p8c (RJ45, Ethernet) Application-Lan
Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UPCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches)
0.654/16.60Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJK0036A78NL Drawing LPJK0036A78NL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Customer Reviews

  • 4.9

    72 Reviews

  • 5 Stars
    93%
    4 Stars
    7%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (72)
No data
G***s
Switzerland
Verified Purchase
5.0
2026-11-13
Twelve positions fit our connector pattern, a clean drop in.
S***n
Ukraine
Verified Purchase
5.0
2026-03-30
Gigabit, clean.
S***e
Czech Republic
Verified Purchase
5.0
2025-12-04
Against the eight position body, this one adds four positions at the same 13.50 mm height. The extra pins carry a second lamp return, which our board needed. Eight cores train at gigabit and the shield bonds at the cutout. Stocking both was silly, so this replaced the old number, a clean list.
C***g
Argentina
Verified Purchase
4.0
2025-06-02
The bag arrived unlabeled, so we counted every body by hand. All eight were present though, and both rates trained on the bench. Clean batch, we reordered.
H***d
Saudi Arabia
Verified Purchase
5.0
2024-10-30
Tabs bonded at the cutout and the scan stayed clean and low.
