Name: LPJG4928HENL 1000 Base-T Single Port RJ45 with POE Magnetics Jack Green/Yellow Led
Brand: LINK-PP
SKU: 141723
Price: 1.865 USD
Availability: InStock
Rating: 5 (65 reviews)

Breadcrumb: Home; Products; Integrated RJ45 Connector; Single Port RJ45 Connector; 1000 Base-T RJ45 Connector; 141723

Click to open expanded view

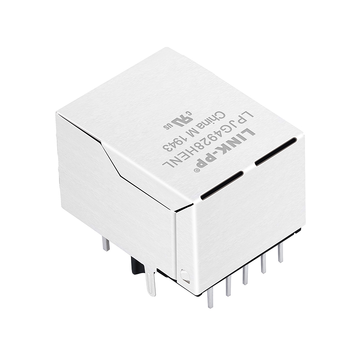

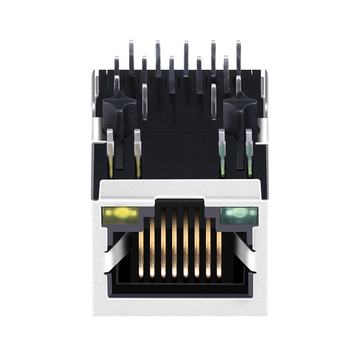

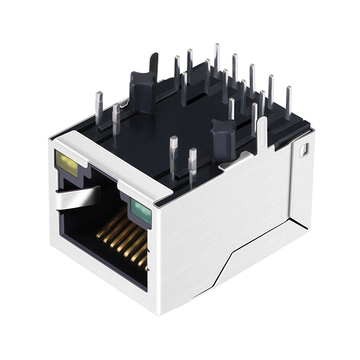

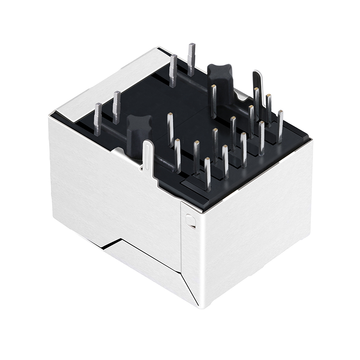

LPJG4928HENL 1000 Base-T Single Port RJ45 with POE Magnetics Jack Green/Yellow Led

# 141723

Product: LPJG4928HENL 1000 Base-T Single Port RJ45 with POE Magnetics Jack Green/Yellow Led
SKU: 141723
P/N: LPJG4928HENL
Price: $ 3.968
Stock: 10 in Stock
Sold: 3.1K
Product URL: https://www.l-p.com/products/456997.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

: LPJG4928HENL 1000 Base-T Single Port RJ45 with POE Magnetics Jack Green/Yellow Led

65 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
Quantity

65 Reviews

1 Questions

Request Stock

3.1K Sold

$ 3.968

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 3.968

100

$ 3.254

600

$ 2.857

1200

$ 2.183

6000

$ 1.865

Manufacture: LINK-PP

P/N: LPJG4928HENL

Compatible:: LINK-PP

Compatible P/N:: LPJG4928HENL

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Packaging Details:

N.W/pcs: 0.008kg
Package: Tray
SPQ: 50pcs
Qty/carton: 1200pcs
Carton size: 32*30*31cm
G.W./carton: 9.5kg

Add to wish

Description

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

Single Port RJ45 with POE Jack 10/100/1000 Base-T Integrated Magnetics, Green/Yellow LED, Tab Down, RoHS

LINK-PP Part Number:	LPJG4928HENL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	10p8c (RJ45, Ethernet)	Application-Lan	Ethernet(PoE+)
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	Down	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without	LED Option	Green/Yellow
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.524/13.30	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.627/15.93	Temperature	-40℃ TO 85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Videos

RJ45 with POE Magnetics Jack

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LPJG4928HENL.pdf

3D Model

ZIP
LPJG4928HENL.zip

Questions & Answers
Ask a Question

No data

Q: Which kind of certification you have ? By M***n on 2020-03-19

A: ISO9001, SGS, UL, RoHs. By admin on 2020-03-19
