Integrated RJ45 Connector
Single Port RJ45 Connector
1000 Base-T RJ45 Connector
105909

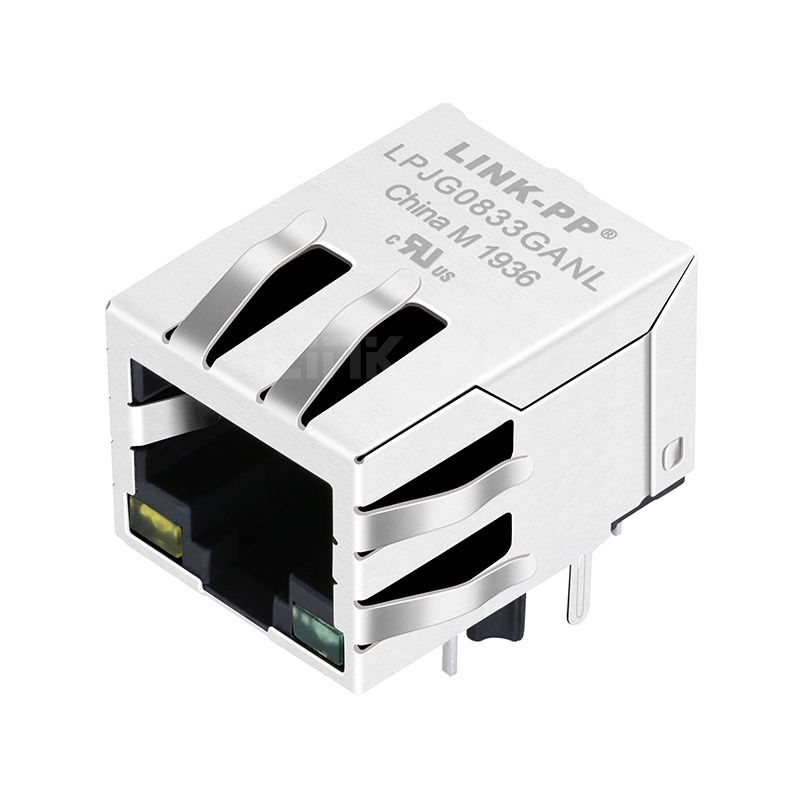

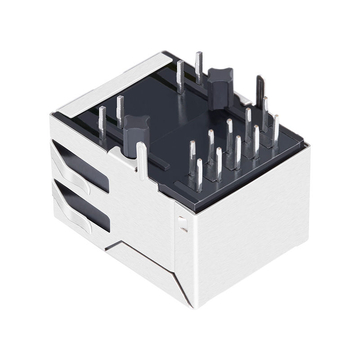

10/100/1000 Base-T Shielded 10 Pin RJ45 Connector
  • 10/100/1000 Base-T Shielded 10 Pin RJ45 Connector thumb image 1
  • 10/100/1000 Base-T Shielded 10 Pin RJ45 Connector thumb image 2
  • 10/100/1000 Base-T Shielded 10 Pin RJ45 Connector thumb image 3
  • 10/100/1000 Base-T Shielded 10 Pin RJ45 Connector thumb image 4
  • 10/100/1000 Base-T Shielded 10 Pin RJ45 Connector thumb image 5

10/100/1000 Base-T Shielded 10 Pin RJ45 Connector

#105909
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

10/100/1000 Base-T Shielded 10 Pin RJ45 Connector

  • $  4.145

    970 in Stock

 62 Reviews
0 Questions
Request Stock
11.5K Sold
$  4.145
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 4.145
100
$ 3.399
600
$ 2.985
1200
$ 2.28
6000
$ 1.949
P/N: LPJG0833GANL
Compatible:
LINK-PP
Tyco
Competitor P/N:
LPJG0833GANL
Shipping:
$ 29.47
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
970 in Stock .
Quantity:
Total Price:
$ 4.145
Packaging Details:
0.008kg
Tray
50pcs
1200pcs
32*30*31cm
9kg
Add to wish

Single Port RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics, Yellow/Green LED, Tab Down, RoHS

LINK-PP Part Number:
 LPJG0833GANL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
Down Cores per Port
12
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
0.626/15.90Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. 10 Pin RJ45 Connector

Download

LPJG0833GANL Drawing

3D Model
