Intel CW-SFP10G80-51-I Compatible LINK-PP 10G SFP+ CWDM Optical Transceiver Module (Industrial, SMF, 1510nm, 80km, LC, DOM) The Intel CW-SFP10G80-51-I Compatible LINK-PP module is an industrial-grade 10G SFP+ CWDM optical transceiver capable of 10Gbps data transmission up to 80 kilometers over single-mode fiber (SMF).The module features a three-part internal architecture composed of a cooled EML laser transmitter, an APD photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU intelligent control unit. This optimized hardware configuration ensures stable signal

Intel E10GSFPER Compatible LINK-PP 10G SFP+ Specifications The Intel E10GSFPER Compatible LINK-PP module is a commercial-grade 10G SFP+ optical transceiver engineered for extended-reach single-mode fiber networks. Operating at a 1550nm wavelength with a Duplex LC interface, this SFP+ 40km module delivers robust 10 Gbps data transmission while utilizing integrated Digital Diagnostic Monitoring to ensure continuous network visibility and reliability. Intel Part NumberE10GSFPERVendor NameLINK-PP Part Status Active Form Factor SFP+ Max Data Rate 10.7Gbps

Intel E10GSFPLR Compatible LINK-PP 10G SFP+ Specifications The Intel E10GSFPLR Compatible LINK-PP module is a high-performance 10Gbps SFP+ optical transceiver engineered for long-reach data transmission up to 10 kilometers over Single-Mode Fiber (SMF). It operates at a 1310nm wavelength using a Duplex LC connector and features Digital Optical Monitoring (DOM) to provide real-time diagnostic data for optimal network management. Intel Part NumberE10GSFPLRVendor NameLINK-PP Part Status Active Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1310nm Max

Intel E10GSFPSR Compatible LINK-PP 10G SFP+ Specifications E10GSFPSR is a 10GBASE-LRM SFP+ optical transceiver module featuring a Duplex LC/UPC interface, integrated digital optical monitoring (DOM), compliance with SFP+ MSA standards, and transmission distances of up to 220m over multi-mode fiber with stable optical output characteristics. Intel Part NumberE10GSFPSRVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1310nm Max Cable Distance 220m Connector Duplex LC Media MMF Transmitter Type FP Receiver Type PIN TX

Intel E10GSFPSRX Compatible LINK-PP 10G SFP+ Specifications E10GSFPSRX is a 10GBASE-SR SFP+ optical transceiver module designed for 850nm operation, delivering up to 300m transmission over multi-mode fiber (MMF), featuring a duplex LC/UPC interface, compliant with SFP+ MSA standards, and equipped with digital optical monitoring (DOM) for real-time parameter visibility. Intel Part NumberE10GSFPSRXVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 850nm Max Cable Distance 300m Connector Duplex LC Media MMF Transmitter Type

Intel E25GSFP28SRX Compatible LINK-PP 25G SFP28 Specifications Intel E25GSFP28SRX Compatible LINK-PP describes a 25G SFP28 transceiver compliant with the 25GBASE-ESR standard, utilizing 850nm VCSEL technology, a Duplex LC/UPC optical interface, and built-in DOM capabilities, while enabling reliable data transmission across 300m on OM3 MMF. Intel Part NumberE25GSFP28SRXVendor NameLINK-PP Form Factor SFP28 Max Data Rate 25.78125Gbps Wavelength 850nm Max Cable Distance 300m Connector Duplex LC Media MMF Transmitter Type VCSEL Receiver Type

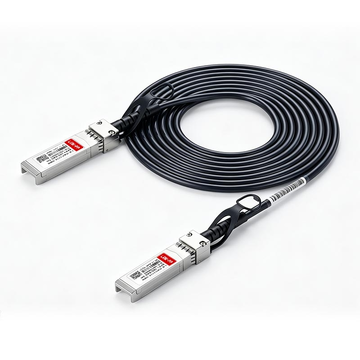

Intel XDACBL3M Compatible LINK-PP 3m (10ft) 10G SFP+ Copper Cable RoHS Compliant (3-meter, Passive, SFP+ to SFP+) The Intel XDACBL3M Compatible LINK-PP SFP+ Direct Attach Cable is Compliant With the SFF-8431,SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length(up to 7m).The 10G SFP+ Copper Cable offers a cost-effective connectivity for establishing a 10-Gigabit short-distance connectivity within a rack or between adjacent racks in data centers. Intel Part NumberXDACBL3MVendor NameLINK-PP Connector

Intel TXN31111 Compatible LINK-PP SFP 2.5G Optical Transceiver Module (MMF, 850nm, 300m, LC, DOM) The Intel TXN31111 Compatible LINK-PP SFP transceivers are high performance, cost effective modules supporting data rate of 2.5Gbps and 300m transmission distance with MMF. The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics

Intel SFP-16G31-LW Compatible LINK-PP 14Gb/s SFP+ Optical Transceiver Module (SMF, 1310nm, 10km, Duplex LC, DOM) The Intel SFP-16G31-LW Compatible LINK-PP SFP+ transceivers are high performance, cost effective modules supporting data rate of 14.025Gbps and 10km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement

Intel SFP-GEB-T-IL Compatible LINK-PP 10/100/1000BASE-T SFP SGMII Copper 100m RJ-45 Industrial Transceiver Module The Intel SFP-GEB-T-IL Compatible LINK-PP module is a high-performance, industrial-grade copper SFP transceiver operating over an SGMII interface. Powered by the Realtek RTL8213B chip, it supports 10/100/1000Mbps auto-negotiation and delivers reliable full-duplex links up to 100 meters over Category 5 UTP cabling. It features integrated Tx-disable and Rx_los functions as standard. Intel Part NumberSFP-GEB-T-ILVendor NameLINK-PP Part Status Active Form Factor

Intel SFP-GEB-T Compatible LINK-PP 10/100/1000BASE-T SFP SGMII Copper 100m RJ-45 Transceiver Module The Intel SFP-GEB-T Compatible LINK-PP SFP Copper Transceiver 10/100/1000Base-T or 1000Base-T only SFP Copper Transceiver is high performance, cost effective module, compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supports 1000Mb/s data-rate up to 100 meters reach over twisted-pair category 5 cable. Intel Part NumberSFP-GEB-TVendor NameLINK-PP Part Status Active Form Factor SFP SGMII

Intel SFP-GEB-T-IL Compatible LINK-PP 10/100/1000BASE-T SFP Specifications The Intel SFP-GEB-T-IL Compatible LINK-PP module is a high-performance, industrial-grade copper SFP transceiver operating over an SGMII interface. Powered by the Realtek RTL8213B chip, it supports 10/100/1000Mbps auto-negotiation and delivers reliable full-duplex links up to 100 meters over Category 5 UTP cabling. It features integrated Tx-disable and Rx_los functions as standard. Intel Part NumberSFP-GEB-T-ILVendor NameLINK-PP Part Status Active Form Factor SFP SGMII Max. Data Rate 1

Intel SFP-10G-T-30-RP Compatible LINK-PP 10GBASE-T SFP+ Specifications The Intel SFP-10G-T-30-RP Compatible LINK-PP module is a high-performance, cost-effective 10GBASE-T SFP+ (Small Form Factor Pluggable Plus) copper transceiver module. Designed for high-speed communication links over Cat6a/Cat7 copper cabling, it enables OEMs and network operators to deploy 10 Gbps Ethernet connectivity into existing SFP+ ports, extending the life and flexibility of network infrastructure. Intel Part NumberSFP-10G-T-30-RPVendor NameLINK-PP Part Status Active Form Factor SFP+

Intel CW-SFP10G80-61-I Compatible LINK-PP 10G SFP+ CWDM Optical Transceiver Module (Industrial, SMF, 1610nm, 80km, LC, DOM) The Intel CW-SFP10G80-61-I Compatible LINK-PP module is a heavy-duty industrial 10G SFP+ CWDM transceiver, built to deliver consistent 10Gbps data transmission over single-mode fiber at distances up to 80km. Equipped with a precision hardware setup consisting of a cooled EML laser, high-sensitivity APD-TIA receiver and intelligent MCU control circuit, this module maintains stable, interference-free signals even in extreme temperatures and tough industrial

Intel CW-SFP10G80-59-I Compatible LINK-PP 10G SFP+ CWDM Optical Transceiver Module (Industrial, SMF, 1590nm, 80km, LC, DOM) The Intel CW-SFP10G80-59-I Compatible LINK-PP module is an industrial-grade 10G SFP+ CWDM transceiver for stable 10Gbps transmission up to 80km over single-mode fiber. Adopting a professional three-core hardware design with cooled EML laser, APD-TIA receiver and MCU control circuit, it ensures reliable, anti-interference signal performance in extreme temperatures and harsh industrial scenarios. Complying with SFP+ MSA specifications and Class 1 laser safety

Intel CW-SFP10G80-57-I Compatible LINK-PP 10G SFP+ CWDM Optical Transceiver Module (Industrial, SMF, 1570nm, 80km, LC, DOM) The Intel CW-SFP10G80-57-I Compatible LINK-PP module is an industrial-grade 10G SFP+ CWDM transceiver for stable 10Gbps transmission up to 80km over single-mode fiber. Adopting a professional three-core hardware design with cooled EML laser, APD-TIA receiver and MCU control circuit, it ensures reliable, anti-interference signal performance in extreme temperatures and harsh industrial scenarios. Complying with SFP+ MSA specifications and Class 1 laser safety
