Extreme 10GB-BX100-D Compatible LINK-PP 10G SFP+ Specifications 10GB-BX100-D redefines long-haul connectivity as a single-strand BiDi SFP+ optical transceiver, engineered to master a 100km reach over single-mode fiber by utilizing a sophisticated 1550nm-TX/1490nm-RX wavelength split through a simplex LC/UPC connector with integrated DOM capabilities. Extreme Part Number10GB-BX100-DVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1550nm-TX/1490nm-RX Max Cable Distance 100km Connector Simplex LC Media SMF Transmitter Type

Extreme 10GB-ZR-SFPP-I Compatible LINK-PP 10G SFP+ Specifications The Extreme 10GB-ZR-SFPP-I Compatible LINK-PP module is an industrial-grade 10G SFP+ ZR optical transceiver engineered for long-haul data center and telecom applications. Operating at a 1550nm wavelength, it supports 10 Gbps Ethernet connectivity over single-mode fiber (SMF) up to 80km. Equipped with a duplex LC connector and advanced Digital Diagnostic Monitoring (DDM), this module ensures robust network performance in extreme temperature environments. Extreme Part Number10GB-ZR-SFPP-IVendor NameLINK-PP

Dell 430-4585-CW49 Compatible LINK-PP 10G SFP+ Specifications The Dell 430-4585-CW49 Compatible LINK-PP 10G SFP+ transceiver delivers dependable 10Gbps performance at the 1490nm CWDM wavelength and supports long-reach links up to 40km over single-mode fiber. Compact and hot-pluggable, it enables rapid rollout of high-speed optical connections for LINK-PP-compatible systems. Dell Part Number430-4585-CW49Vendor NameLINK-PP Form Factor SFP+ Max Data Rate 10Gbps Wavelength 1490nm Max Cable Distance 40km Connector Duplex LC Media SMF Transmitter

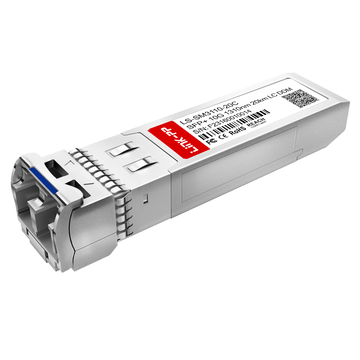

Allied Telesis AT-SP10LR20 Compatible LINK-PP 10G SFP+ Specifications The Allied Telesis AT-SP10LR20 Compatible LINK-PP module is an extended-reach 10Gbps SFP+ optical transceiver optimized for 20-kilometer links over Single-Mode Fiber. It utilizes a precision 1310nm DFB laser and a Duplex LC connector, complete with Digital Optical Monitoring to ensure high-performance data transport across wide-area networks. Allied Telesis Part NumberAT-SP10LR20Vendor NameLINK-PP Part Status Active Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1310nm Max

Arista SFP-10G32-BX40-I Compatible LINK-PP 10G SFP+ Specifications Engineered for single-fiber efficiency, the Arista SFP-10G32-BX40-I Compatible LINK-PP industrial-grade 10G SFP+ transceiver duplexes a 1330nm-TX/1270nm-RX wavelength over a single strand of single-mode fiber via a Simplex LC/UPC interface, delivering integrated DOM monitoring across distances up to 40km under harsh temperature conditions. Arista Part NumberSFP-10G32-BX40-IVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1330nm-TX/1270nm-RX Max Cable Distance 40km

Arista SFP-10G32-BX10-I Compatible LINK-PP 10G SFP+ Specifications The Arista SFP-10G32-BX10-I Compatible LINK-PP module is a single-strand 10G BiDi SFP+ optical transceiver module that utilizes a single LC simplex connector to achieve bidirectional data rates up to 10Gbps, operating via 1330nm-TX and 1270nm-RX wavelengths over single-mode fiber for a maximum reach of 10km. Arista Part NumberSFP-10G32-BX10-IVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1330nm-TX/1270nm-RX Max Cable Distance 10km Connector Simplex LC Media

Broadcom SFP-10GLR-31 Compatible LINK-PP 10G SFP+ Specifications The Broadcom SFP-10GLR-31 Compatible LINK-PP module is a high-performance 10Gbps SFP+ optical transceiver engineered for long-reach data transmission up to 10 kilometers over Single-Mode Fiber (SMF). It operates at a 1310nm wavelength using a Duplex LC connector and features Digital Optical Monitoring (DOM) to provide real-time diagnostic data for optimal network management. Broadcom Part NumberSFP-10GLR-31Vendor NameLINK-PP Part Status Active Form Factor SFP+ Max Data Rate 10.7Gbps

Brocade 10G-SFPP-BXU-80K Compatible LINK-PP 10G SFP+ Specifications Brocade 10G-SFPP-BXU-80K Compatible LINK-PP operates as a single-fiber BiDi SFP+ transceiver utilizing a 1490nm-TX/1550nm-RX wavelength pair to achieve simultaneous bidirectional 10Gbps data transmission over a single strand of single-mode fiber up to an 80km reach via a simplex LC/UPC interface with integrated DOM support. Brocade Part Number10G-SFPP-BXU-80KVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1490nm-TX/1550nm-RX Max Cable Distance 80km Connector

Generic DW-SFP10G40-23-I Compatible LINK-PP C23 10G DWDM SFP+ Transceiver Module (SMF, 1558.98nm, 40km, LC, Industrial, DOM) The Generic DW-SFP10G40-23-I Compatible LINK-PP C23 SFP+ transceiver supports up to 40km link lengths over single-mode fiber (SMF) via an LC duplex connector. This transceiver is compliant with SFF-8431 and SFF-8432 MSA standards. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to

*{padding:0;margin:0;} body { margin: 0 auto; padding: 0; font-size: 13px; font-family: 'Open Sans',Arial,Helvetica,sans-serif; font-style: normal; font-weight: 400; color: #232323; -webkit-text-size-adjust: none; background: #fff; line-height: 20px; -webkit-tap-highlight-color: rgba(0,0,0,0); } .tab-title{ font-size: 16px; font-weight: 600; margin-top: 30px; display: block; line-height: 24px; color: #232323; } .single-tab{ border-collapse: collapse; border-spacing: 0; margin: 10px 0;

Ciena XCVR-S10U33 Compatible LINK-PP 10G SFP+ Specifications The Ciena XCVR-S10U33 Compatible LINK-PP module is a 10G SFP+ BIDI transceiver supporting 10.7Gbps bit rates. It operates with a 1330nm DFB laser transmitter and 1270nm PIN receiver, reaching up to 10km on single-mode fiber. The module complies with SFP+ MSA, SFF-8472, and RoHS, with a +3.3V power supply. Ciena Part NumberXCVR-S10U33Vendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1330nm-TX/1270nm-RX Max Cable Distance 10km Connector Simplex LC Media SMF

Cisco SFP-10G-BX20U-I Compatible LINK-PP 10G SFP+ Specifications Elevate your network with the Cisco SFP-10G-BX20U-I Compatible LINK-PP 10G SFP+ BIDI transceiver. Engineered for demanding industrial environments (-40°C to +85°C) , this high-performance module delivers robust 10.3Gbps data rates over single-mode fiber up to 20km. Featuring a 1270nm TX/1330nm RX single LC interface and real-time Digital Diagnostic Monitoring (DDM) , it ensures cost-effective, reliable long-reach connectivity. Cisco Part NumberSFP-10G-BX20U-IVendor NameLINK-PP Form Factor SFP+

D-Link DEM-436XT-BXU Compatible LINK-PP 10G SFP+ Specifications This commercial-grade BiDi SFP+ transceiver delivers highly efficient 10Gbps throughput over a single single-mode fiber up to 20km. Operating at 1270nm-TX/1330nm-RX with a simplex LC/UPC connector, it integrates advanced WDM and DOM capabilities. Engineered for top-tier switch compatibility, these specifications ensure reliable data center and enterprise network expansion. D-Link Part NumberDEM-436XT-BXUVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1270nm-TX/1330nm-RX

Dell 430-4909-I Compatible LINK-PP 10G SFP+ Specifications Dell 430-4909-I Compatible LINK-PP module is an industrial-grade 10GBASE-LRM SFP+ optical transceiver operating at 1310nm, supporting up to 220m transmission over OM3 multi-mode fiber with a duplex LC/UPC interface and integrated DOM for real-time monitoring across MMF links. Dell Part Number430-4909-IVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1310nm Max Cable Distance 220m Connector Duplex LC Media MMF Transmitter Type FP Receiver Type PIN TX Power

ETU-LINK EB54X-A0DI Compatible LINK-PP 10G SFP+ Specifications EB54X-A0DI is an industrial-grade 10G SFP+ BiDi optical transceiver featuring a 1550nm-TX/1490nm-RX wavelength pair over a single-strand SMF via simplex LC/UPC interface, supporting up to 100km transmission with integrated DOM for real-time diagnostics and optimized bidirectional bandwidth efficiency. ETU-LINK Part NumberEB54X-A0DIVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1550nm-TX/1490nm-RX Max Cable Distance 100km Connector Simplex LC Media SMF

Extreme 10GB-BX20-D-I Compatible LINK-PP 10G SFP+ Specifications The Extreme 10GB-BX20-D-I Compatible LINK-PP module is a single-channel, bidirectional (BiDi) 10G SFP+ optical transceiver module that enables simultaneous data transmission and reception over a single strand of single-mode fiber, operating at a wavelength pair of 1330nm-TX/1270nm-RX to support link lengths of up to 20km. Extreme Part Number10GB-BX20-D-IVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1330nm-TX/1270nm-RX Max Cable Distance 20km Connector Simplex LC
