LINK-PP LP14BC01000C SFP+ 1X4 Cage Press-Fit With EMI Spring FingerLINK-PP Part NumberLP14BC01000CPart StatusActiveConnector StyleCageConnector TypeSFP+Mounting TypeThrough Hole, Right AngleTerminationPress-FitPort Matrix Configuration1x4 PortNumber of Ports4FeaturesEMI ShieldedOperating Temperature Range-40 – 85°CIncluded LightpipeNoEMI Containment Feature TypeEMI Springs

LINK-PP LP14BC01200S SFP+ 1X4 Cage With Lightpipe EMI Spring Finger  LINK-PP Part Number LP14BC01200S Part Status Active Connector Style Cage Connector Type SFP+ Port Matrix Configuration1x4 PortNumber of Ports4 Operating Temperature Range-40 – 85°CMounting StyleThrough Hole, Right Angle Included LightpipeYesTerminationPress-FitHeight (Inches/mm)0.534/13.57Length  (Inches/mm)2.244/57.00Width (Inches/mm)2.316/5

LINK-PP LP14BC01100 SFP+ 1X4 Cage Press-Fit With EMI Spring Finger Lightpipe LINK-PP Part Number LP14BC01100 Part Status Active Connector Style Cage Connector Type SFP+ Port Matrix Configuration1x4 PortNumber of Ports4 Operating Temperature Range-40 – 85°CMounting StyleThrough Hole, Right Angle Included LightpipeYesTerminationPress-FitHeight (Inches/mm)0.380/9.65Length  (Inches/mm)2.160/54.87Width (Inches/mm)2.278/

LINK-PP LP28BC01303 SFP+ 2x8 Cage Connector With EMI Spring Finger Light Pipe LINK-PP Part Number LP28BC01303 Part Status Active Connector Style Receptacle with Cage, Ganged (2x8) Connector Type SFP+ Data Rate (Max)(Gb/s)16Mounting TypeThrough Hole, Right AngleTerminationPress-FitFeaturesEMI Shielded Port Matrix Configuration2x8 PortsNumber of Ports16 Operating Temperature Range-40 – 85°CIncluded LightpipeOuter Light Pipe

LINK-PP LP28BC01203 SFP+ 2x8 Cage Connector With EMI Spring Finger Light Pipe LINK-PP Part Number LP28BC01203 Part Status Active Connector Style Receptacle with Cage, Ganged (2x8) Connector Type SFP+ Data Rate (Max)(Gb/s)16Mounting TypeThrough Hole, Right AngleTerminationPress-FitFeaturesEMI Shielded Port Matrix Configuration2x8 PortsNumber of Ports16 Operating Temperature Range-40 – 85°CIncluded LightpipeInner Light Pipe

LINK-PP LP26BC01303 SFP+ 2x6 Cage Connector With EMI Spring Finger Light Pipe LINK-PP Part Number LP26BC01303 Part Status Active Connector Style Receptacle with Cage, Ganged (2x6) Connector Type SFP+ Data Rate (Max)(Gb/s)16Mounting TypeThrough Hole, Right AngleTerminationPress-FitFeaturesEMI Shielded Port Matrix Configuration2x6 PortsNumber of Ports12 Operating Temperature Range-40 – 85°CIncluded LightpipeInner Light Pipe

LINK-PP LP26BC01003 SFP+ 2x6 Cage Connector With EMI Spring Finger LINK-PP Part Number LP26BC01003 Part Status Active Connector Style Receptacle with Cage, Ganged (2x6) Connector Type SFP+ Data Rate (Max)(Gb/s)16Mounting TypeThrough Hole, Right AngleTerminationPress-FitFeaturesEMI Shielded Port Matrix Configuration2x6 PortsNumber of Ports12 Operating Temperature Range-40 – 85°CIncluded LightpipeNo Height (Inches/mm)1.061/26.9

LINK-PP LP26BC01203 SFP+ 2x6 Cage Connector With EMI Spring Finger Light Pipe LINK-PP Part Number LP26BC01203 Part Status Active Connector Style Receptacle with Cage, Ganged (2x6) Connector Type SFP+ Data Rate (Max)(Gb/s)16Mounting TypeThrough Hole, Right AngleTerminationPress-FitFeaturesEMI Shielded Port Matrix Configuration2x6 PortsNumber of Ports12 Operating Temperature Range-40 – 85°CIncluded LightpipeInner Light Pipe

LINK-PP LP21BC01003 SFP+ 2x1 Cage Connector With EMI Spring Finger LINK-PP Part Number LP21BC01003 Part Status Active Connector Style Receptacle with Cage, Ganged (2x1) Connector Type SFP+ Data Rate (Max)(Gb/s)16Mounting TypeThrough Hole, Right AngleTerminationPress-FitFeaturesEMI Shielded Port Matrix Configuration2x1 PortsNumber of Ports2 Operating Temperature Range-40 – 85°CPluggable I/O ApplicationsSFP+ Included LightpipeNoEMI

LINK-PP LP26BC01103 SFP+ 2x6 Cage Connector With EMI Spring Finger Light Pipe LINK-PP Part Number LP26BC01103 Part Status Active Connector Style Receptacle with Cage, Ganged (2x6) Connector Type SFP+ Data Rate (Max)(Gb/s)16Mounting TypeThrough Hole, Right AngleTerminationPress-FitFeaturesEMI Shielded Port Matrix Configuration2x6 PortsNumber of Ports12 Operating Temperature Range-40 – 85°CIncluded LightpipeInner/Outer Light Pipe

LINK-PP LP28BC01103 SFP+ 2x8 Cage Connector With EMI Spring Finger Light Pipe LINK-PP Part Number LP28BC01103 Part Status Active Connector Style Receptacle with Cage, Ganged (2x8) Connector Type SFP+ Data Rate (Max)(Gb/s)16Mounting TypeThrough Hole, Right AngleTerminationPress-FitFeaturesEMI Shielded Port Matrix Configuration2x8 PortsNumber of Ports16 Operating Temperature Range-40 – 85°CIncluded LightpipeInner/outer Light Pipe

LINK-PP LP21BC01103 SFP+ 2x1 Cage Connector With EMI Spring Finger Outer/Inner LightPipe LINK-PP Part Number LP21BC01103 Part Status Active Connector Style Receptacle with Cage, Ganged (2x1) Connector Type SFP+ Data Rate (Max)(Gb/s)16Mounting TypeThrough Hole, Right AngleTerminationPress-FitFeaturesEMI Shielded Port Matrix Configuration2x1 PortsNumber of Ports2 Operating Temperature Range-40 – 85°CPluggable I/O ApplicationsSFP+

LINK-PP LP21BC01303 SFP+ 2x1 Cage Connector With EMI Spring Finger Outer LightPipe LINK-PP Part Number LP21BC01303 Part Status Active Connector Style Receptacle with Cage, Ganged (2x1) Connector Type SFP+ Data Rate (Max)(Gb/s)16Mounting TypeThrough Hole, Right AngleTerminationPress-FitFeaturesEMI Shielded Port Matrix Configuration2x1 PortsNumber of Ports2 Operating Temperature Range-40 – 85°CPluggable I/O ApplicationsSFP+ Circuit

LINK-PP LP16BC01630SA SFP+ 1X6 Cage Press-Fit With EMI Spring Finger Light Pipe Heat Sink LINK-PP Part Number  LP16BC01630SA Part Status Active Connector Style Cage Connector Type SFP+ Port Matrix Configuration1x6 PortNumber of Ports6 Operating Temperature Range-55 – 85°CMounting StyleThrough Hole, Right Angle Included LightpipeNoTerminationPress-FitHeight (Inches/mm)0.352/8.95Length

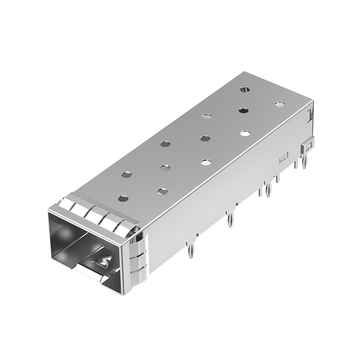

LINK-PP LP11BC02000 SFP+ 1x1 Cage With Grounding Pin EMI Spring Finger LINK-PP Part Number LP11BC02000 Part Status Active Connector Style Cage Connector Type SFP+ Mounting TypeThrough Hole, Right AngleTerminationPress-Fit Port Matrix Configuration1x1 PortNumber of Ports1 FeaturesEMI ShieldedPCB Mounting StyleThrough Hole - Press-Fit Included LightpipeNoEMI Containment Feature TypeEMI

LINK-PP LP11BC02000 REVB SFP+ 1x1 Cage With Grounding Pin EMI Spring Finger LINK-PP Part Number LP11BC02000 REVB Part Status Active Connector Style Cage Connector Type SFP+ Mounting TypeThrough Hole, Right AngleTerminationPress-Fit Port Matrix Configuration1x1 PortNumber of Ports1 FeaturesEMI ShieldedPCB Mounting StyleThrough Hole - Press-Fit Included LightpipeNoEMI Containment Feature TypeEMI SpringsHeight (Inches/mm)0.
