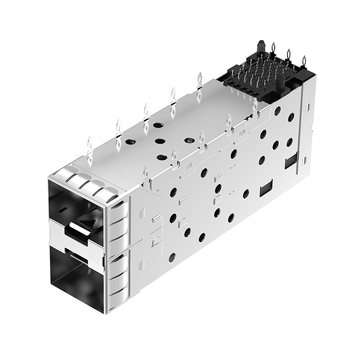

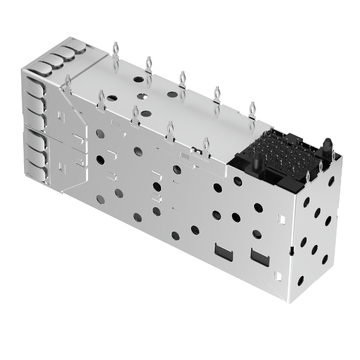

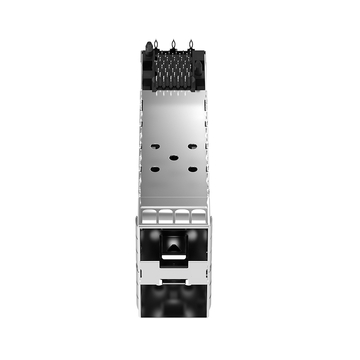

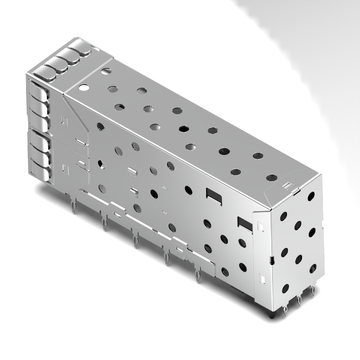

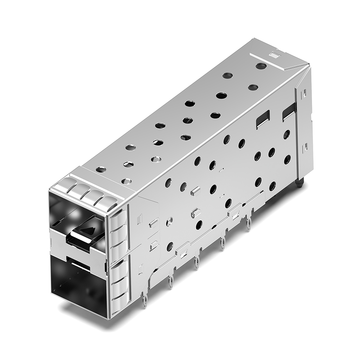

LP21BC01001 SFP+ 2x1 Cage&Connector Press-Fit With EMI Spring Finger

Name: LP21BC01001 SFP+ 2x1 Cage&Connector Press-Fit With EMI Spring Finger
Brand: LINK-PP
SKU: 169981
Price: 3.58 USD
Availability: InStock
Rating: 5 (52 reviews)

Product: LP21BC01001 SFP+ 2x1 Cage&Connector Press-Fit With EMI Spring Finger
SKU: 169981
P/N: LP21BC01001
Price: $ 3.58
Stock: 1996 in Stock
Sold: 4.8K
Product URL: https://www.l-p.com/products/468747.htm

52 Reviews

4 Questions

4.8KSold

Unit price $ 3.58

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

P/N: LP21BC01001SKU: 169981

LINK-PP originalDatasheet All downloads

Compatible:: TE; Pulse; LINK-PP

Compatible P/N:: LP21BC01001

Volume pricing Online tiers · larger qty or custom price on request

$ 3.580

1–99 pcs

$ 2.983

100–999 pcs

$ 2.754

1,000–4,999 pcs

$ 2.429

5,000–9,999 pcs

$ 2.301

≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

1996 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 99.00.

Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).

Quantity:

Total Price:

$ 3.58

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LP21BC01001 2x1 Port SFP+ Cage Connector External Springs

LINK-PP Part Number	LP21BC01001	Part Status	Active
Product Type	Receptacle with Cage, Ganged (2x1)	Form Factor	SFP+
Data Rate (Max)(Gb/s)	-	Mounting Type	Through Hole, Right Angle
Termination	Press-Fit	Features	EMI Shielded
Port Matrix Configuration	2x1 Ports	Number of Ports	2
Operating Temperature Range	-40 – 85°C	Pluggable I/O Applications	SFP+
Circuit Application	-	EMI Containment Feature Type	External Springs
Included Lightpipe	NO	Cage Material	COPPER ALL OY 30u”
Length (Inches/mm)	63.25/2.490	Width (Inches/mm)	14.00/0.551
Height (Inches/mm)	25.53/1.005	PCB Thickness (Recommended)	2.36MM( .093 INCH)

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LP21BC01001-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Q:
How do we inspect the press fit tails after assembly? by D***n

A:
Turn the board over and look along both rows with a magnifier before anything else goes on the shelf. A tail that has folded back or missed its plated hole is obvious from underneath, while a marginal one can look fine from the top. We also check that the shell sits square to the board edge, since a tilted cage usually means the tool was not supported evenly. Catching it at that stage is far cheaper than a rework. by LINK-PP Technical Support
Q:
Do the EMI fingers need a metal panel to work? by D***d

A:
Yes, they are formed from the same stamped shell and press against a conductive faceplate around the cutout. Without metal there is nothing to bond to and the springs are just a mechanical feature. A meter across the shell and the faceplate confirmed the bond on the first article, and we repeated that reading after painting, since a coated surface can break the path. Keep that chassis bond separate from the signal reference on the board. by LINK-PP Technical Support
Q:
No light pipe is listed. Where do the indicators go? by R***n

A:
They stay on the board behind the cage, since this shell has no moulded guide to carry a lamp out to either opening. Host software still reports link and activity per port, and on a two port block the positions are usually labelled anyway. If the operator wants a lamp at the faceplate, that is a separate part with its own cutout. We relied on the switch display and marked both ports on the silkscreen. by LINK-PP Technical Support
Q:
Two stacked ports: how much room does the upper patch lead need? by M***k

A:
The upper opening sits about twenty five millimetres above the board, and a stiff patch lead needs a clear arc above that before it turns into the cable tray. We left a finger width of free height over the shell and checked it with the enclosure lid closed, because a recessed panel is where this gets tight. The lower latch is reached from underneath, so leave a little space below the bottom opening too. A quick cardboard mock up saved us a panel revision. by LINK-PP Technical Support
