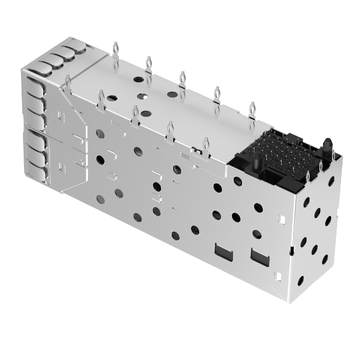

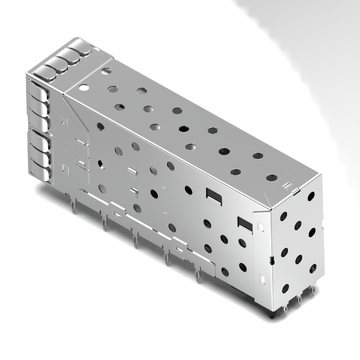

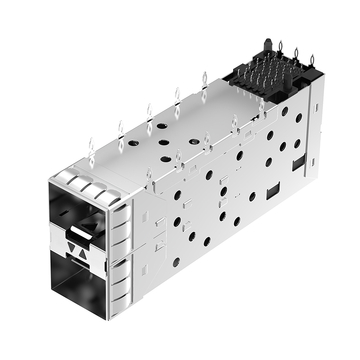

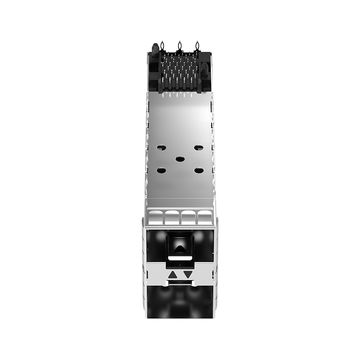

LP21BC01201 sfp+ 2x1 cage&connector press-fit with inner light pipe emi spring finger

LP21BC01201 SFP+ 2x1 Cage&Connector Press-Fit With Inner Light Pipe EMI Spring Finger

Product summary

Product
LP21BC01201 SFP+ 2x1 Cage&Connector Press-Fit With Inner Light Pipe EMI Spring Finger
SKU
169984
P/N
LP21BC01201
Price
$ 3.72
Stock
1180 in Stock
Sold
1.6K
Unit price $ 3.72
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP21BC01201SKU: 169984

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LP21BC01201
Volume pricing Online tiers · larger qty or custom price on request
$ 3.720
1–99 pcs
$ 3.100
100–999 pcs
$ 2.862
1,000–4,999 pcs
$ 2.561
5,000–9,999 pcs
$ 2.391
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1180 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 3.72

LINK-PP LP21BC01201 2x1 Port SFP+ Cage Connector With Inner LightPipe

LINK-PP Part Number LP21BC01201 Part Status Active
Product Type Receptacle with Cage, Ganged (2x1) Form Factor SFP+
Data Rate (Max)(Gb/s) 16 Mounting Type Through Hole, Right Angle
Termination Press-Fit Features EMI Shielded
Port Matrix Configuration 2x1 Ports Number of Ports 2
Operating Temperature Range -40 – 85°C Pluggable I/O Applications SFP+
Included Lightpipe With Cage Material COPPER ALL OY 30u”
Length (Inches/mm) 2.490/63.25 Width (Inches/mm) 0.551/14.00
Height (Inches/mm) 1.005/25.53 PCB Thickness (Recommended) 2.36MM( .093 INCH)

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP21BC01201-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The wide temperature range is only useful if the whole assembly can take it, so we looked past the cage to the solder fillets and the bezel finish. A steel faceplate and a plastic light pipe move by different amounts across that span, and we left a little clearance at the post instead of clamping it tight. On the thermal soak we cycled the panel twice and rechecked the fit afterwards. The transceiver you choose needs its own industrial rating, since the shell does not set the link budget. by LINK-PP Technical Support
  • A:
    The spring fingers around both openings press against the faceplate, so the contact only works if the bezel is bare metal at that spot. Our first sample had powder coat over the landing area and an emissions scan showed a noisy slot; stripping a narrow band behind the cutout fixed it. We bonded the shell at a single chassis stud away from the signal return, which avoided a loop through the board. Check the coating drawing as well as the mechanical one. by LINK-PP Technical Support
  • A:
    Retention comes from the finished hole, not the drill size on the drawing, so we asked the fabricator to measure a plated barrel on the first article and report the copper thickness along with the bore. Two bays mean the insertion force adds up, and a thin panel will dish if the support is only at the corners. We put a backing tool under the whole strip, recorded the force curve on the first press, and kept that setting for the run. Pull one shell afterwards as a record. by LINK-PP Technical Support
  • A:
    The clear post on this two bay housing has to pass through a hole in the faceplate without being pushed sideways. Our first panel had the opening half a millimetre low and the post rubbed hard enough to haze the tip. We opened the hole to the drawing tolerance, added a small lead in chamfer, and checked the fit with the cage seated before any board was pressed. A dry assembly with the bezel screwed down catches this earlier than an electrical test does. by LINK-PP Technical Support

Customer Reviews

  • 5

    37 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (37)
No data
B***o
Verified Purchase
5.0
2026-11-14
The light pipe runs inside the frame, so our front panel needs no window. We read the link from the module port itself. That saved a machining step on the bezel. It has been in service with the same cage.
A***d
Verified Purchase
5.0
2026-06-01
Springs held the module. It held up at full rate through the burn-in.
N***k
Turkey
Verified Purchase
5.0
2025-10-30
The edit suite takes two 10G modules per desk behind a plain steel blank. With the light pipe inside the cage we skipped the window, so the blank stayed solid and dust stayed out. 24 desks are running and no cage has pulled a tail.
M***k
Verified Purchase
5.0
2025-07-28
Cage walls bonded to the chassis frame. No surprises on the opening pitch.
D***y
Verified Purchase
5.0
2024-12-24
This frame is rated to 85℃ and our rack runs a warm 48℃ in summer. No module has dropped on the four cards we built. The tails have not moved either. The DDM readings matched the drawing. =)
