LP21BC01303 sfp+ 2x1 cage assembly with integrated connector with outer light pipe emi spring finger press-fit through hole right angle
Click to open expanded view

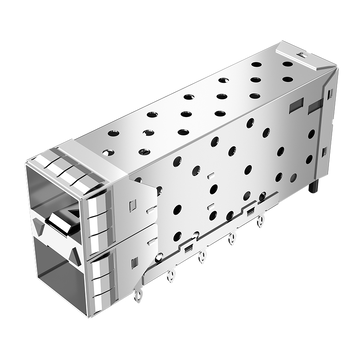

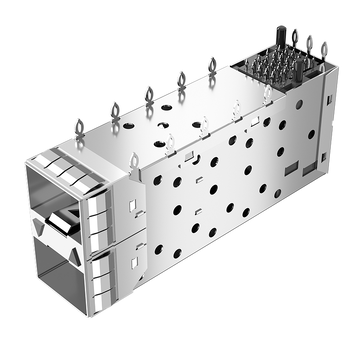

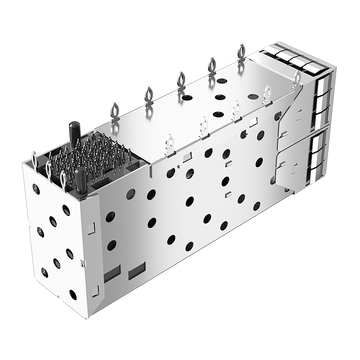

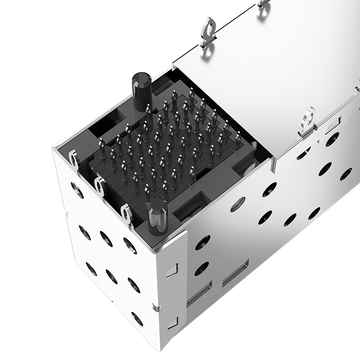

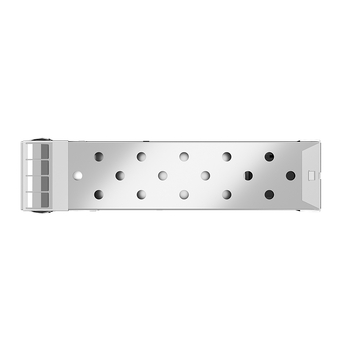

LP21BC01303 SFP+ 2x1 Cage Assembly With Integrated Connector With Outer Light Pipe EMI Spring Finger Press-Fit Through Hole Right Angle

Product summary

Product
LP21BC01303 SFP+ 2x1 Cage Assembly With Integrated Connector With Outer Light Pipe EMI Spring Finger Press-Fit Through Hole Right Angle
SKU
203144
P/N
LP21BC01303
Price
$ 4.12
Stock
162 in Stock
Sold
9.9K
Unit price $ 4.12
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP21BC01303SKU: 203144

LINK-PP originalDatasheetAll downloads

Volume pricing Online tiers · larger qty or custom price on request
$ 4.120
1–99 pcs
$ 3.433
100–999 pcs
$ 2.943
1,000–4,999 pcs
$ 2.796
5,000–9,999 pcs
$ 2.649
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
162 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 4.12

LINK-PP LP21BC01303 SFP+ 2x1 Cage Assembly With Integrated Connector With Outer Light Pipe EMI Spring Finger Press-Fit Through Hole Right Angle

LINK-PP Part Number LP21BC01303 Part Status Active
Product Type Cage Assembly with Integrated Connector Form Factor SFP+
Max Data Rate 16 Gbps Features EMI Shielded
Port Matrix Configuration 2×1 Number of Ports 2
Included Connector Yes Included Heat Sink No
Included Lightpipe Yes EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.106/2.70 Recommended PCB Thickness (Inches/mm) 0.093/2.36
Length (Inches/mm) 2.490/63.25 (REF) Width (Inches/mm) 0.583/14.80 (REF)
Height (Inches/mm) 1.016/25.80 (REF) Cage Material Stainless Steel
Contact Plating Gold Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP21BC01303.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Around 22N per unit across a ganged 2x1, so no, do not press it by hand. Use a flat ram or an arbor press with a support plate under the board. Hand pressing a 40 pin part will tilt it and bend tails, and a bent tail is a rework that usually damages the plated hole. by LINK-PP Technical Support
  • A:
    Yes. The cage is mechanically an SFP+ receptacle rated to 16Gb/s, so any SFP+ module up to that rate fits and aligns. The cage does not set the data rate, the module and the host SerDes do. Just check the thermal path, because a 16G module runs warmer than a 10G one in the same opening. by LINK-PP Technical Support
  • A:
    It depends on the pipe geometry rather than the hole size. The outer pipe sits above the port and routes light forward, so it needs a clear line of sight from the pipe end to the bezel hole. Measure the pipe end positions on the drawing against your bezel and allow 0.5mm of clearance, because the pipe is plastic and will not tolerate a press fit against the bezel. by LINK-PP Technical Support
  • A:
    The tails suit a 1.6mm to 2.0mm board with 0.6mm finished holes, and we have pressed them into both without issue. The datasheet leaves PCB thickness blank, so confirm with the supplier before you release the drill drawing, because a 0.05mm hole difference changes the retention force noticeably. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    23 Reviews

  • 5 Stars
    91%
    4 Stars
    9%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (23)
No data
B***t
Canada
Verified Purchase
4.0
2026-11-16
One corner of the carton was crushed, but both openings took modules and the tails landed, within spec.
C***x
Austria
Verified Purchase
5.0
2026-11-04
2x1, connector in, outer pipes, worth it.
T***t
Poland
Verified Purchase
5.0
2026-10-24
16G rating covers SFP28 too, so one part fits all, no fuss. :)
P***y
Ukraine
Verified Purchase
5.0
2026-10-12
Our line card holds two SFP28 ports in the space of one cage, and the assembly arrives with the connector already in place, so nothing had to be soldered by hand. Press-fit tails sat in the 1.6 mm board without a reflow. The outer pipe guides the two lamps through the faceplate cutout, worth it.
H***a
Egypt
Verified Purchase
5.0
2026-10-12
We had been using a two piece solution, cage plus separate connector, and the connector occasionally lifted during rework. The single piece part removed that failure mode entirely, and rework now means replacing one part instead of two.
