amphenol u77-e16d3-3001 compatible link-pp lp11bcs2030 sfp+ 1x1 cage with heat sink solder through hole right angle

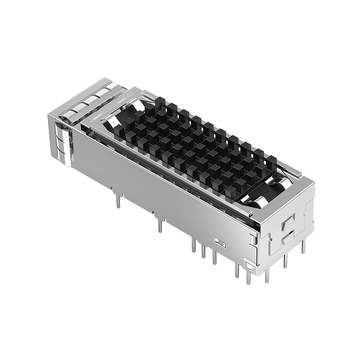

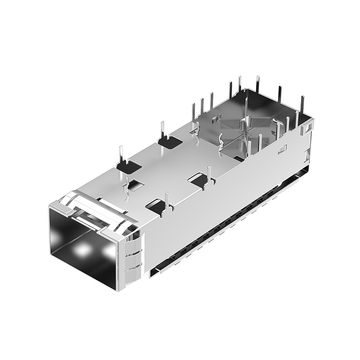

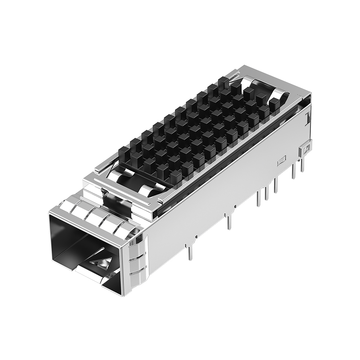

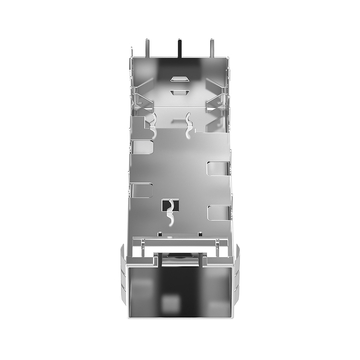

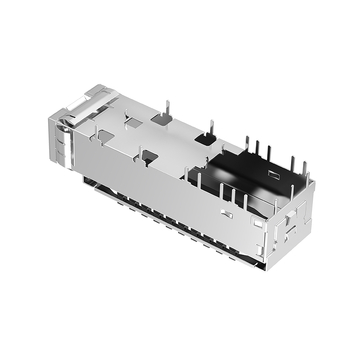

Amphenol U77-E16D3-3001 Compatible LINK-PP LP11BCS2030 SFP+ 1x1 Cage With Heat Sink Solder Through Hole Right Angle

Product summary

Product
Amphenol U77-E16D3-3001 Compatible LINK-PP LP11BCS2030 SFP+ 1x1 Cage With Heat Sink Solder Through Hole Right Angle
SKU
203828
P/N
LP11BCS2030
Price
$ 2.39
Stock
2500 in Stock
Sold
590
Unit price $ 2.39
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11BCS2030SKU: 203828

Compatible with Amphenol U77-E16D3-3001Datasheet3D ModelAll downloads

Compatible P/N:
U77-E16D3-3001
Volume pricing Online tiers · larger qty or custom price on request
$ 2.390
1–99 pcs
$ 1.990
100–999 pcs
$ 1.837
1,000–4,999 pcs
$ 1.620
5,000–9,999 pcs
$ 1.535
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2500 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 2.39

Amphenol U77-E16D3-3001 Compatible LINK-PP LP11BCS2030 SFP+ 1x1 Cage With Heat Sink Solder Through Hole Right Angle

LINK-PP Part Number LP11BCS2030 Amphenol Part Number U77-E16D3-3001
Product Type Cage With Heat Sink Form Factor SFP+
Cage COPPER ALLOY,Ni PL ATED PACKAGING TRAY PACKAGING
Port Matrix Configuration 1x1 Port Number of Ports 1
Operating Temperature Range -55 – 85°C Mounting Style Through Hole, Right Angle
Included Lightpipe No Termination Solder
Height (Inches/mm) 0.531/13.5 Length (Inches/mm) 1.941/49.30
Width (Inches/mm) 0.594/15.10 EMI Containment Feature Type
EMI Springs

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11BCS2030.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Look at the spring fingers around the opening first, because those are what tie the shell to a grounded panel. On our build the bezel had a painted surface, so we masked a small contact land and verified continuity with a meter after assembly. The tails also need a solid ground plane connection under the part. A quick continuity check from the shell to chassis earth catches most of the problems before the EMC scan does, and it takes only a minute per board. by LINK-PP Technical Support
  • A:
    There is no moulded guide on this shell, so the two indicator lamps have to be handled on the board or the chassis instead. We placed the LEDs behind small openings in the front panel and ran the label legend next to the port, then tied each lamp to a host GPIO in firmware. If you want the light at the connector itself, that becomes a bracket or panel feature rather than something the cage supplies, which is worth settling early in the layout review. by LINK-PP Technical Support
  • A:
    This version is a through hole right angle shell with solder tails, so it belongs in a wave or selective solder step after the surface mount pass, not in the reflow oven with the fine pitch devices. Keep tall components away from the tail area so the nozzle or wave has access, and use a support fixture that does not press on the fins. We asked the assembler to confirm hole fill on the first article and then kept the same profile for the production run. by LINK-PP Technical Support
  • A:
    The finned cap sits higher than a bare one bay shell, so measure from the board surface to the underside of whatever sits above it. Our original enclosure had a stiffener rib crossing that zone and we had to shift the rib by a few millimetres rather than shave the fins. Leave a clear air path along the fin direction too, because a closed pocket will trap warm air around the module. A check with the intended transceiver plugged in is worth doing before the sheet metal is committed. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    15 Reviews

  • 5 Stars
    93%
    4 Stars
    7%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (15)
No data
G***y
Verified Purchase
5.0
2026-06-07
Before fitting a rack of these, check the board thickness, because the solder tails run 3.02 mm past the board line. The cage is 49.30 mm long and EMI shielded round the mouth and the seam. Our cross connect row took 12 cages and every one sat square. No fuss seating it in the faceplate.
D***t
Verified Purchase
5.0
2025-10-06
A cage with a heat sink, not a jack at all. It held up through the pull test.
K***n
Verified Purchase
5.0
2025-05-07
No light pipe in the box, so we read the port lamps on the line card instead, which was fine. The parts were exactly as described. :D
L***e
Verified Purchase
4.0
2024-06-29
One cage came with a creased heat sink fin, but the springs closed on the mouth and the optic locked home. No surprises on the insertion force.
E***d
Verified Purchase
5.0
2023-07-15
3.02 mm tails past the board, easy to inspect. No drama at the press station.
