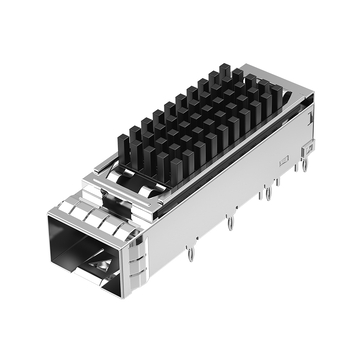

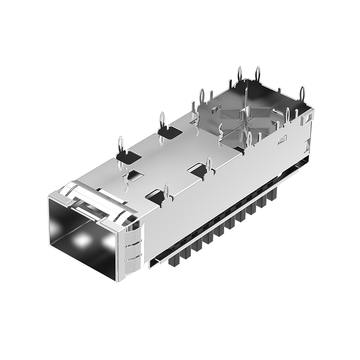

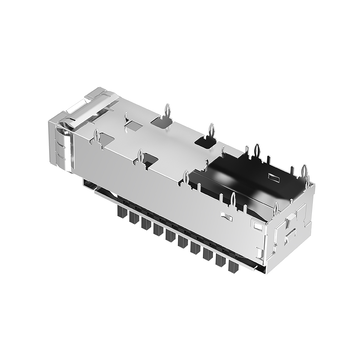

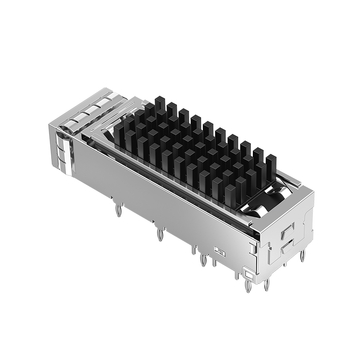

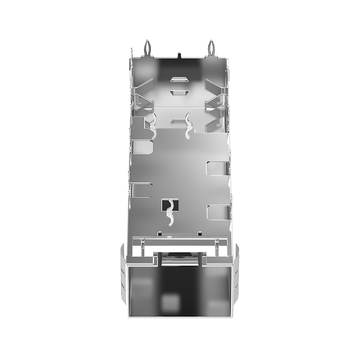

Amphenol U77-E16E8-2001 Compatible LINK-PP LP11BC02050 SFP+ 1x1 Cage With Heat Sink Press-Fit Through Hole

Name: Amphenol U77-E16E8-2001 Compatible LINK-PP LP11BC02050 SFP+ 1x1 Cage With Heat Sink Press-Fit Through Hole
Brand: LINK-PP
SKU: 203732
Price: 3.00 USD
Availability: InStock
Rating: 4.9 (15 reviews)

Product: Amphenol U77-E16E8-2001 Compatible LINK-PP LP11BC02050 SFP+ 1x1 Cage With Heat Sink Press-Fit Through Hole
SKU: 203732
P/N: LP11BC02050 REVB
Price: $ 3.00
Stock: 110 in Stock
Sold: 2.9K
Product URL: https://www.l-p.com/products/493184.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

15 Reviews

3 Questions

2.9K Sold

$ 3.00

Free shipping over $99. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 3.00

$ 2.85

100

$ 2.70

1000

$ 2.55

2500

$ 2.40

P/N: LP11BC02050 REVB SKU: 203732

Compatible:: LINK-PP; Amphenol

Compatible P/N:: U77-E16E8-2001

Shipping:

To Be Negotiated

$ 44.65

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 10 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

110 in Stock .

Quantity:

Total Price:

$ 3.00

Specifications
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

Amphenol U77-E16E8-2001 Compatible LINK-PP REVB 1x1 SFP+ Cage Specifications

The LINK-PP LP11BC02050 REVB is an SFP+ 1x1 cage with an integrated heat sink, designed for applications requiring enhanced thermal management around the transceiver interface. Compatible with Amphenol U77-E16E8-2001, it features EMI springs and a through-hole, right-angle configuration for stable board-level integration.

Supporting press-fit termination and a single-port 1x1 layout, the LP11BC02050 REVB provides a practical cage solution without an integrated lightpipe. Its -55°C to +85°C operating temperature range makes it suitable for networking, telecommunications, and other equipment requiring reliable SFP+ interface protection and heat dissipation.

Amphenol U77-E16E8-2001 Compatible LINK-PP LP11BC02050 REVB 1x1 SFP+ Cage Specifications

LINK-PP Part Number	LP11BC02050 REVB	Amphenol Part Number	U77-E16E8-2001
Connector Style	Cage With Heat Sink	Connector Type	SFP+
Mounting Style	Through Hole, Right Angle	PACKAGING	Tray
Port Matrix Configuration	1x1 Port	Number of Ports	1
Operating Temperature Range	-55~+85℃	EMI Containment Feature Type	EMI Springs
Included Lightpipe	No	Termination	Press-Fit

Model Comparison Table

	Current Model U77-E16E8-2001	U77-E16F3-3001	U77-E16E3-3001	U77-E16D3-3001	U77-E16E8-2001

Compatible	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Connector	Cage With Heat Sink	Cage With Heat Sink	Cage With Heat Sink	Cage With Heat Sink	Cage With Heat Sink
Operating Temperature	-55~+85℃	-	-	-55 – 85°C	-55 – 85°C
Pluggable I/O Product Type	Cage With Heat Sink	Cage With Heat Sink	Cage With Heat Sink	Cage With Heat Sink	Cage With Heat Sink
EMI Containment Feature Type	EMI Springs	Internal/External EMI Springs	Internal/External EMI Springs	EMI Springs	EMI Springs
Lightpipe Options	Not Optional	Not Optional	Not Optional	Not Optional	Not Optional
Termination Method to Printed Circuit Board	Through Hole - Press-Fit	Through Hole - Solder	Through Hole - Solder	Through Hole - Solder	Through Hole - Press-Fit
Amphenol	U77-E16E8-2001	U77-E16F3-3001	U77-E16E3-3001	U77-E16D3-3001	U77-E16E8-2001
Connector Style	Cage With Heat Sink	Cage With Heat Sink	Cage With Heat Sink	Cage With Heat Sink	Cage With Heat Sink
Mounting Style	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
PACKAGING	Tray			TRAY PACKAGING	Tray
Port Matrix Configuration	1x1 Port	1x1 Port	1x1 Port	1x1 Port	1x1 Port
Number of Ports	1	1	1	1	1
Included Lightpipe	No	No	No	No	No
Termination	Press-Fit	Sorder	Sorder	Solder	Press-Fit

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LP11BC02050 REVB.pdf Download

Questions & Answers
Ask a Question

No data

Q: Can LP11BC02050 REVB be interchanged with other LINK‑PP SFP+ cage parts in our existing PCB layout? By E***e

A: LP11BC02050 REVB has unique integrated heat‑sink structure without light pipe. Download its PDF drawing to double‑check footprint and height before swapping with other cage series. By admin
Q: What are the key specs of this heat‑sink SFP+ cage, does it come with light pipe? By S***o

A: This LINK‑PP cage uses through‑hole right‑angle press‑fit termination, operating temperature‑55°C~+85°C, equipped with EMI springs. It does NOT include integrated light pipe, built‑in heat sink for high‑power transceivers. By admin
Q: What warranty and technical support do I get purchasing these press‑fit heat‑sink cages? By P***u

A: We offer 5‑year product warranty plus 30‑day return & exchange service. Our engineering team can provide guidance for thermal evaluation and PCB hole dimension suggestions. By admin
