Is the LP11BC02200 press‑fit cage mechanically compatible with the solder‑type LP11BCS2100 from LINK‑PP?

Both share the same 1x1 SFP+ footprint and outer dimensions (53.20×14.00×9.70mm). The key difference is termination: LP11BC02200 uses press‑fit pins while LP11BCS2100 uses solder tails. Check the PDF drawing for pin pattern details.

Can I get a better unit price if I order 2000+ pieces of the LP11BC02200 press‑fit cage?

Yes, volume tiered pricing applies. Orders over $1000 get $15 off, over $3000 get $50 off. For 2000+ units, contact our sales team for a custom bulk quotation — we also offer flexible lead times for recurring orders.

What warranty and technical support do you provide for press‑fit cage products?

We offer a 5‑year product warranty and 30‑day return/exchange service. Our technical team can help with press‑fit force calculations, PCB hole size recommendations, and compatibility verification before you place a bulk order.

Breadcrumb: Home; Products; Fiber Optic Cages & Connectors; SFP+ Cages & Connectors; 1X1 SFP+ Cage; 170629

Click to open expanded view

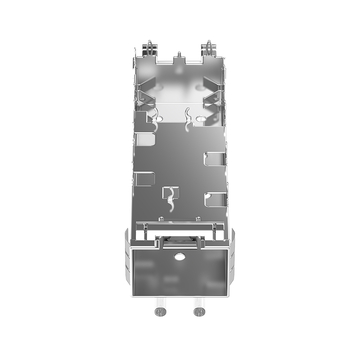

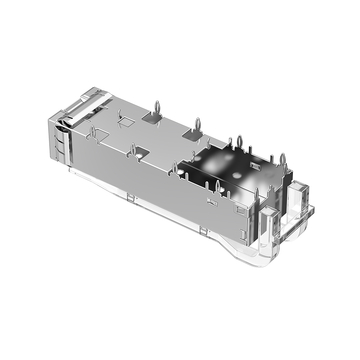

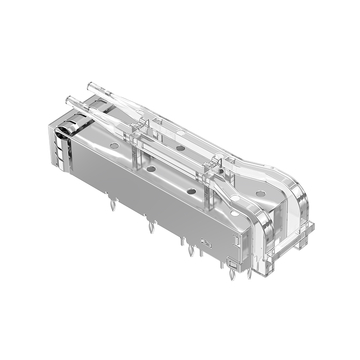

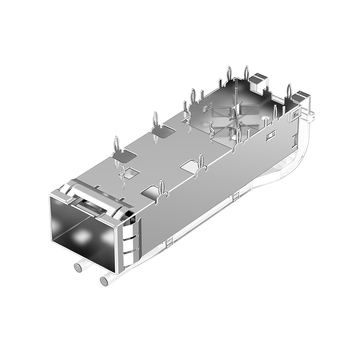

LP11BC02200 SFP+ 1x1 Cage Press-Fit With Light Pipe

Name: LP11BC02200 SFP+ 1x1 Cage Press-Fit With Light Pipe
Brand: LINK-PP
SKU: 170629
Price: 0.87 USD
Availability: InStock
Rating: 5 (62 reviews)

Product: LP11BC02200 SFP+ 1x1 Cage Press-Fit With Light Pipe
SKU: 170629
P/N: LP11BC02200
Price: $ 0.87
Stock: 4000 in Stock
Sold: 1K
Product URL: https://www.l-p.com/products/469206.htm

62 Reviews

3 Questions

1KSold

Unit price $ 0.87

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

P/N: LP11BC02200SKU: 170629

LINK-PP originalDatasheet All downloads

Compatible:: LINK-PP

Compatible P/N:: LP11BC02200

Volume pricing Online tiers · larger qty or custom price on request

$ 0.870

1–99 pcs

$ 0.727

100–999 pcs

$ 0.671

1,000–4,999 pcs

$ 0.592

5,000–9,999 pcs

$ 0.561

≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

4000 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 99.00.

Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).

Quantity:

Total Price:

$ 0.87

Specifications
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LP11BC02200 1x1 SFP+ Cage Specifications

The LINK-PP LP11BC02200 is an SFP+ 1x1 cage featuring a copper alloy, nickel-plated construction with an integrated light pipe and EMI springs. Designed for reliable PCB integration, it supports press-fit termination and through-hole, right-angle mounting for stable installation.

With a single-port configuration and a -55°C to +85°C operating temperature range, the LP11BC02200 SFP+ cage provides effective EMI containment and reliable mechanical performance for networking, telecommunications, industrial, and data center equipment. Tray packaging supports efficient assembly and handling.

LINK-PP LP11BC02200 1x1 SFP+ Cage Specifications

LINK-PP Part Number	LP11BC02200	Part Status	Active
Connector Style	Cage	Connector Type	SFP+
Cage	COPPER ALLOY,Ni PL ATED	PACKAGING	TRAY PACKAGING
Port Matrix Configuration	1x1 Port	Number of Ports	1
Operating Temperature Range	-55 – 85°C	Mounting Style	Through Hole, Right Angle
Included Lightpipe	With	Termination	Press-Fit
Height (Inches/mm)	0.382/9.70	Length (Inches/mm)	2.094/53.20
Width (Inches/mm)	0.551/14.00	EMI Containment Feature Type	EMI Springs

Model Comparison Table

	Current Model LP11BC02200	LP11BC02000E	LP11BC02000	LP11BC02000	LP11BCS2060	LP11BCS2050

Compatible	LINK-PP	LINK-PP	LINK-PP	LINK-PP	LINK-PP	LINK-PP
Connector	Cage	Cage	Cage	Cage	Cage	Cage
Operating Temperature	-55 – 85°C	-55 – 85°C	-55 – 85°C	-55 – 85°C	-55 – 85°C	-55 – 85°C
Pluggable I/O Product Type	Cage	Cage	Cage	Cage	Cage	Cage
EMI Containment Feature Type	EMI Springs	EMI Springs	EMI Springs	EMI Springs	EMI Springs	EMI Springs
Lightpipe Options	With Lightpipe	Not Optional	Not Optional	Not Optional
Termination Method to Printed Circuit Board	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Solder	Through Hole - Solder
Part Status	Active	Active	Active	Active	Active	Active
Connector Style	Cage	Cage	Cage	Cage	Cage	Cage
Cage	COPPER ALLOY,Ni PL ATED				COPPER ALLOY,Ni PL ATED	COPPER ALLOY,Ni PL ATED
PACKAGING	TRAY PACKAGING				TRAY PACKAGING	TRAY PACKAGING
Port Matrix Configuration	1x1 Port	1x1 Port	1x1 Port	1x1 Port	1x1 Port	1x1 Port
Number of Ports	1	1	1	1	1	1
Mounting Style	Through Hole, Right Angle	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole, Right Angle	Through Hole, Right Angle
Included Lightpipe	With	No	No	No	-	-
Termination	Press-Fit	Through Hole - Press-Fit	Press-Fit	Press-Fit	Sorder	Solder
Height	0.382/9.70	0.384/9.75	0.384/9.75	0.384/9.75	0.581/14.75	0.581/14.75
Length (Inches/mm)	2.094/53.20	1.919/48.75	1.919/48.75	1.919/48.75	1.941/49.30	1.941/49.30

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LP11BC02200(1).pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Q:
Is the LP11BC02200 press‑fit cage mechanically compatible with the solder‑type LP11BCS2100 from LINK‑PP? by C***n

A:
Both share the same 1x1 SFP+ footprint and outer dimensions (53.20×14.00×9.70mm). The key difference is termination: LP11BC02200 uses press‑fit pins while LP11BCS2100 uses solder tails. Check the PDF drawing for pin pattern details. by LINK-PP Technical Support
Q:
Can I get a better unit price if I order 2000+ pieces of the LP11BC02200 press‑fit cage? by N***r

A:
Yes, volume tiered pricing applies. Orders over $1000 get $15 off, over $3000 get $50 off. For 2000+ units, contact our sales team for a custom bulk quotation — we also offer flexible lead times for recurring orders. by LINK-PP Technical Support
Q:
What warranty and technical support do you provide for press‑fit cage products? by K***g

A:
We offer a 5‑year product warranty and 30‑day return/exchange service. Our technical team can help with press‑fit force calculations, PCB hole size recommendations, and compatibility verification before you place a bulk order. by LINK-PP Technical Support
