LP11BC02050 sfp+ 1x1 cage with heat sink press-fit through hole right angle

LP11BC02050 SFP+ 1x1 Cage With Heat Sink Press-Fit Through Hole Right Angle

Product summary

Product
LP11BC02050 SFP+ 1x1 Cage With Heat Sink Press-Fit Through Hole Right Angle
SKU
170768
P/N
LP11BC02050
Price
$ 2.39
Stock
1900 in Stock
Sold
1.1K
Unit price $ 2.39
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11BC02050SKU: 170768

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LP11BC02050
Volume pricing Online tiers · larger qty or custom price on request
$ 2.390
1–99 pcs
$ 1.993
100–999 pcs
$ 1.840
1,000–4,999 pcs
$ 1.623
5,000–9,999 pcs
$ 1.538
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1900 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 2.39

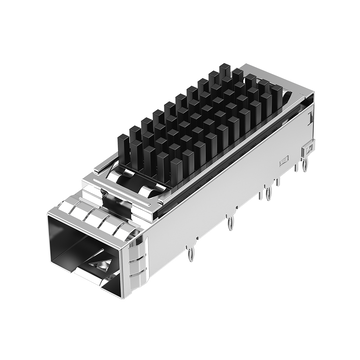

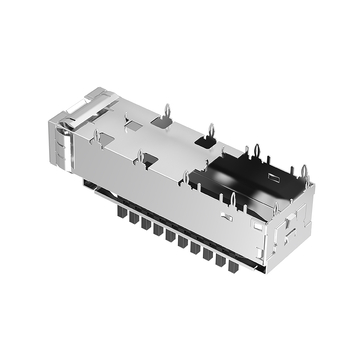

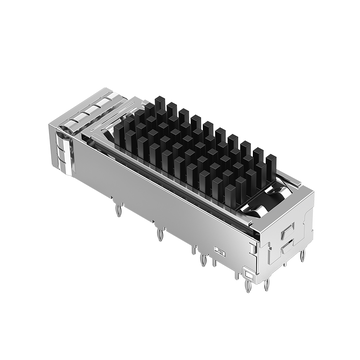

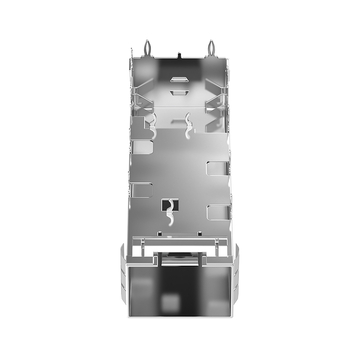

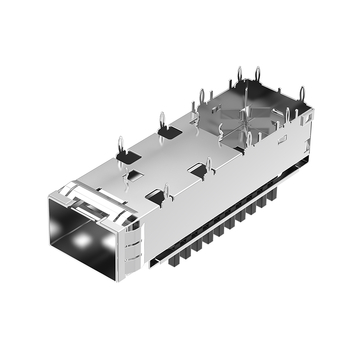

LINK-PP LP11BC02050 SFP+ 1x1 Cage With Heat Sink Press-Fit Through Hole Right Angle

LINK-PP Part Number LP11BC02050 Part Status Active
Product Type Cage With Heat Sink Form Factor SFP+
Cage COPPER ALLOY,Ni PL ATED PACKAGING Tray
Port Matrix Configuration 1x1 Port Number of Ports 1
Operating Temperature Range -55 – 85°C Mounting Style Through Hole, Right Angle
Included Lightpipe No Termination Press-Fit
Height (Inches/mm) 0.581/14.75 Length (Inches/mm) 1.933/49.10
Width (Inches/mm) 0.551/14.00 EMI Containment Feature Type
EMI Springs

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11BC02050.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    From the host side. The cage has no light pipe, so there is nothing to carry a board LED out to the faceplate, and the module status has to be read over the management bus or from the switch software. On a single port cage this is rarely a problem because the port is usually labelled and the host already reports it. If you need a visible lamp at the panel, choose the version of this family that includes the pipe. by LINK-PP Technical Support
  • A:
    Not the assembly process, but it tells you where the plating and spring alloy were chosen to keep contact force at low temperature. Nickel underplate over a copper alloy is the usual reason, and the spring temper matters more than the housing plastic. We store and solder it like any other press fit cage. The rating is worth paying for only if the equipment actually starts cold, otherwise a standard minus forty part does the same job for less. by LINK-PP Technical Support
  • A:
    Yes, that is the usual order, because pressing a cage first makes every later operation awkward and the tall shell gets in the way of the placement head. We fit the small parts, reflow them, then press the cage last with a support block under the board. What matters is keeping the panel flat during the press; a warped board bends the tails even when the tool is aligned. Leave clear space around both sides of the shell for the fixture. by LINK-PP Technical Support
  • A:
    The sink is part of the cage and presses onto the module body through the opening in the top of the shell, so the module case itself is the contact surface. We use a thin interface pad because the plated cage and the module shell are never perfectly flat, and the pad takes up that gap. Check the module height against the drawing before you commit the board, since a taller housing will lift the sink and lose contact. The sink stayed warm and the readings never moved. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    20 Reviews

  • 5 Stars
    90%
    4 Stars
    10%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (20)
No data
S***d
Verified Purchase
5.0
2026-11-14
14.75 mm high and 14.00 mm wide. The plate needed one cutout, as described.
L***e
Verified Purchase
5.0
2026-07-22
Heat sink on top. It matched the drawing on every pair.
M***e
Verified Purchase
4.0
2025-11-27
Two cages in the tray had bent spring fingers, but the openings were true and the modules seated. The packing held up through the trip.
G***r
Netherlands
Verified Purchase
5.0
2025-09-07
A bus shelter uplink box has one slot and the board sits inside a sealed shell, so the cage has to be all metal. This one is stamped and plated with no plastic around the opening, the press fit pins went in without solder, and the shelter link has stayed up all season, good.
E***m
Verified Purchase
5.0
2025-01-19
Press fit pins, so the cage goes into the board without solder. It matched the drawing on the hole pattern.
