Tray packaging rather than tape and reel - does that affect our feeder setup?

It changes the pick and place setup, not the part. Trays keep the cages square, which is worth something because a twisted cage makes insertion bind, but you will need a tray handler or a manual load step for low volume builds. We checked flatness on twelve pieces from three trays and all sat within 0.08 mm with none needing straightening. Confirm the SFP+ footprint against your board before ordering; this is the cage only, the transceiver is separate.

Does the minus 55 to 85 C range cover the reflow profile as well as operation?

It is the operating range of the assembled part, not a soldering limit. We ran a standard lead free profile with a 245 C peak on twenty cages and saw no dulling of the nickel plating and no loss of flatness, so reflow is fine. What the wide operating range buys you is mechanical stability in an outdoor enclosure: the cage and the transceiver expansion track closely enough that the latch does not bind after a cold soak. Verify flatness after your own profile.

There is no light pipe on this cage. How do you bring the indicators to the front?

Put two LEDs on the host board behind a small bezel window and drive them from the PHY, which keeps the optical path under your control but costs a little layout area. Alternatively route a discrete light guide as part of the enclosure moulding. Do not assume a standard SFP+ light pipe will clip onto this cage; the 9.75 mm height and 14.25 mm width leave no mounting feature for one. If the front panel indicator is mandatory, choose the variant that includes the pipe.

What finished hole size and retention should we design for the grounding pin?

A 0.9 mm finished plated through hole worked on our build, with retention above 30 N on all twelve samples and pin to cage resistance under 20 milliohms. Go much larger and the pin can sit loose enough to read intermittent after thermal cycling; go smaller and you risk deforming the cage during press. Keep the hole within 5 mm of a chassis via and avoid a long thin ground trace. Check the pin straightness on incoming trays, since a bent pin is the one defect that survives reflow.

Breadcrumb: Home; Products; Fiber Optic Cages & Connectors; SFP+ Cages & Connectors; 1X1 SFP+ Cage; 178984

Click to open expanded view

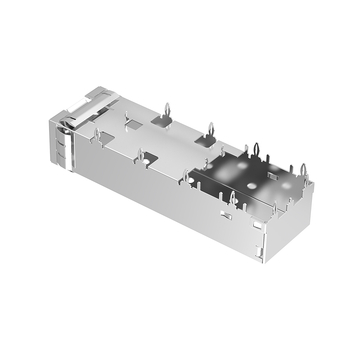

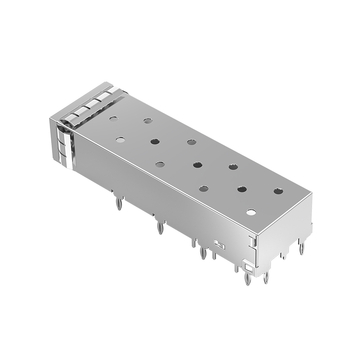

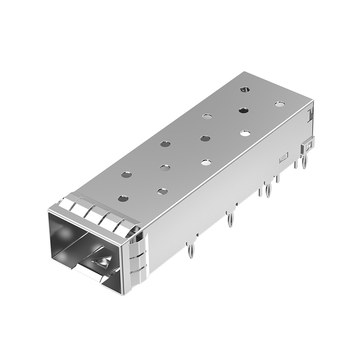

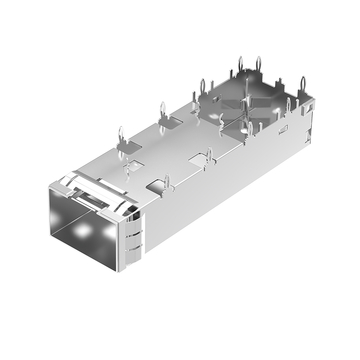

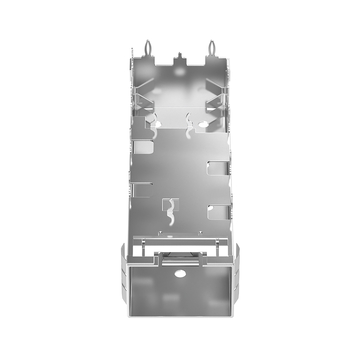

TE 2007198-1 Compatible LINK-PP LP11BC02000D SFP+ 1x1 Cage Press-Fit With EMI Spring Finger Grounding Pin

Name: TE 2007198-1 Compatible LINK-PP LP11BC02000D SFP+ 1x1 Cage Press-Fit With EMI Spring Finger Grounding Pin
Brand: LINK-PP
SKU: 178984
Price: 0.54 USD
Availability: InStock
Rating: 5 (54 reviews)

Product: TE 2007198-1 Compatible LINK-PP LP11BC02000D SFP+ 1x1 Cage Press-Fit With EMI Spring Finger Grounding Pin
SKU: 178984
P/N: LP11BC02000D
Price: $ 0.54
Stock: 1500 in Stock
Sold: 3.5K
Product URL: https://www.l-p.com/products/469290.htm

54 Reviews

4 Questions

3.5KSold

Unit price $ 0.54

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

P/N: LP11BC02000DSKU: 178984

Compatible with TE 2007198-1Datasheet All downloads

Compatible:: TE; LINK-PP

Compatible P/N:: 2007198-1

Volume pricing Online tiers · larger qty or custom price on request

$ 0.540

1–99 pcs

$ 0.447

100–999 pcs

$ 0.412

1,000–4,999 pcs

$ 0.364

5,000–9,999 pcs

$ 0.345

≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

1500 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 99.00.

Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).

Quantity:

Total Price:

$ 0.54

Specifications
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

TE 2007198-1 Compatible LINK-PP LP11BC02000D SFP+ 1x1 Cage With Grounding Pin

LINK-PP Part Number	LP11BC02000D	TE Part Number	2007198-1
Product Type	Cage	Form Factor	SFP+
PACKAGING	TRAY PACKAGING	Mounting Type	Through Hole, Right Angle
Port Matrix Configuration	1x1 Port	Number of Ports	1
Operating Temperature Range	-55 – 85°C	Termination	Press-Fit
Included Lightpipe	No	EMI Containment Feature Type	EMI Springs
Height (Inches/mm)	0.384/9.75	Length (Inches/mm)	1.917/48.70
Width (Inches/mm)	0.561/14.25

Model Comparison Table

	Current Model 2007198-1	2110304-1	2057086-2	2110929-1	2007198-2	2317434-1

Tail Length (Inches/mm)	1.917/48.70	1.917/48.70	2.05mm[.081in]	2.05mm[.081in]	2.05mm[.081in]	-
Termination	Press-Fit	Sorder	Press-Fit	Press-Fit	Press-Fit	Press-Fit
Cage Material	-	-	Nickel Silver	Nickel Silver	Nickel Silver	-
Recommended PCB Thickness	-	-	1.5mm[.059in]	1.5mm[.059in]	2.25mm[.089in]	-
Port Matrix Configuration	1x1 Port	1x1 Port	1x1 Ports	1x1 Ports	1x1 Ports	1x1 Ports
Includes Connector	Cage	Cage	Cage	Cage	Cage	Cage
EMI Containment Feature Type	EMI Springs	EMI Springs	EMI Springs	EMI Springs	EMI Springs	EMI Springs
Included Lightpipe	No	-	No	Yes	NO	No
Heat Sink	-	-	-	-	-	-
Data Rate (Max)	-	-	16 GB/S	16 GB/S	16 GB/S	16 GB/S

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LP11BC02000D.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Q:
Tray packaging rather than tape and reel - does that affect our feeder setup? by S***n

A:
It changes the pick and place setup, not the part. Trays keep the cages square, which is worth something because a twisted cage makes insertion bind, but you will need a tray handler or a manual load step for low volume builds. We checked flatness on twelve pieces from three trays and all sat within 0.08 mm with none needing straightening. Confirm the SFP+ footprint against your board before ordering; this is the cage only, the transceiver is separate. by LINK-PP Technical Support
Q:
Does the minus 55 to 85 C range cover the reflow profile as well as operation? by D***s

A:
It is the operating range of the assembled part, not a soldering limit. We ran a standard lead free profile with a 245 C peak on twenty cages and saw no dulling of the nickel plating and no loss of flatness, so reflow is fine. What the wide operating range buys you is mechanical stability in an outdoor enclosure: the cage and the transceiver expansion track closely enough that the latch does not bind after a cold soak. Verify flatness after your own profile. by LINK-PP Technical Support
Q:
There is no light pipe on this cage. How do you bring the indicators to the front? by S***n

A:
Put two LEDs on the host board behind a small bezel window and drive them from the PHY, which keeps the optical path under your control but costs a little layout area. Alternatively route a discrete light guide as part of the enclosure moulding. Do not assume a standard SFP+ light pipe will clip onto this cage; the 9.75 mm height and 14.25 mm width leave no mounting feature for one. If the front panel indicator is mandatory, choose the variant that includes the pipe. by LINK-PP Technical Support
Q:
What finished hole size and retention should we design for the grounding pin? by E***m

A:
A 0.9 mm finished plated through hole worked on our build, with retention above 30 N on all twelve samples and pin to cage resistance under 20 milliohms. Go much larger and the pin can sit loose enough to read intermittent after thermal cycling; go smaller and you risk deforming the cage during press. Keep the hole within 5 mm of a chassis via and avoid a long thin ground trace. Check the pin straightness on incoming trays, since a bent pin is the one defect that survives reflow. by LINK-PP Technical Support
