F5 Networks F5-UPG-QSFP28-SR4 Compatible LINK-PP 100G QSFP28 Specifications The F5 Networks F5-UPG-QSFP28-SR4 Compatible LINK-PP module is a high-performance 100G QSFP28 SR4 optical transceiver designed for short-reach data communication. Operating at a 4x25.78Gbps data rate, this commercial-grade QSFP28 module ensures exceptional signal integrity. It features a maximum power consumption of just 2.5W, making this 100GBASE-SR4 solution incredibly energy-efficient for modern enterprise networking environments. F5 Networks Part NumberF5-UPG-QSFP28-SR4Vendor NameLINK-PP

F5 Networks F5-UPG-QSFP28-LR4-I Compatible LINK-PP 100G QSFP28 Specifications The F5 Networks F5-UPG-QSFP28-LR4-I Compatible LINK-PP module is an industrial-grade QSFP28 LR4 100G optical transceiver designed for robust high-speed data transmission over single-mode fiber. Utilizing LAN-WDM technology operating within the 1310nm band, this module supports a 10km reach and features a duplex LC interface with built-in Digital Diagnostics Monitoring for real-time network optimization in harsh environments. F5 Networks Part NumberF5-UPG-QSFP28-LR4-IVendor NameLINK-PP Form

F5 Networks F5-UPG-QSFP28-IR4 Compatible LINK-PP 100G QSFP28 Specifications The F5 Networks F5-UPG-QSFP28-IR4 Compatible LINK-PP module is a high-performance 100G QSFP28 CWDM4 optical transceiver expertly designed for modern data center interconnects. Featuring a built-in four-wavelength DFB laser and robust PIN detector, this single-mode module delivers up to 25.78Gbps per channel. Operating seamlessly under commercial temperatures, it guarantees efficient 100GBASE Ethernet links with exceptional reliability. F5 Networks Part NumberF5-UPG-QSFP28-IR4Vendor NameLINK-PP

F5 Networks F5-UPG--R Compatible LINK-PP 1G SFP Specifications The F5 Networks F5-UPG--R Compatible LINK-PP module is a high-performance, commercial-grade SFP transceiver delivering data rates up to 1.25 Gbps. Featuring an 850nm VCSEL transmitter and a duplex LC interface, it operates efficiently over multi-mode fiber for distances up to 550 meters. Complete with digital optical monitoring support, it ensures reliable and stable gigabit network connectivity. F5 Networks Part NumberF5-UPG--RVendor NameLINK-PP Form Factor SFP Max Data Rate 1.25Gbps Wavelength

F5 Networks F5-UPG-QSFP+ Compatible LINK-PP 40G QSFP+ Specifications The F5 Networks F5-UPG-QSFP+ Compatible LINK-PP module is a high-performance 40G QSFP+ transceiver designed for efficient optical communication. Built for single-mode fiber applications, this commercial-grade module perfectly complies with the IEEE 802.3ba 40GBASE-FR4 standard. It features a hot-pluggable form factor and operates reliably within a standard temperature range, ensuring stable enterprise networking connectivity. F5 Networks Part NumberF5-UPG-QSFP+Vendor NameLINK-PP Form Factor QSFP+

F5 Networks F5-UPG-QSFP+ Compatible LINK-PP 40G QSFP+ Specifications The F5 Networks F5-UPG-QSFP+ Compatible LINK-PP module is a premium 40G QSFP+ optical transceiver engineered for high-speed network connections. Operating at an 850nm wavelength, this high-performance module supports data center infrastructure with robust 40Gbps connectivity over multimode fiber. It integrates an MPO connector and advanced DOM capabilities, ensuring seamless commercial-grade performance and exceptional reliability. F5 Networks Part NumberF5-UPG-QSFP+Vendor NameLINK-PP Form Factor

F5 Networks F5-UPG-SFPLX-R Compatible LINK-PP 1G SFP Specifications The F5 Networks F5-UPG-SFPLX-R Compatible LINK-PP module is a 1G SFP optical transceiver designed for stable gigabit transmission over single-mode fiber. It delivers dependable performance at a 1310nm operating wavelength with a reach of up to 10km. F5 Networks Part NumberF5-UPG-SFPLX-RVendor NameLINK-PP Form Factor SFP Max Data Rate 1.25Gbps Wavelength 1310nm Max Cable Distance 10km Connector Duplex LC Transmitter Type FP 1310nm Media SMF Receiver Type PIN TX

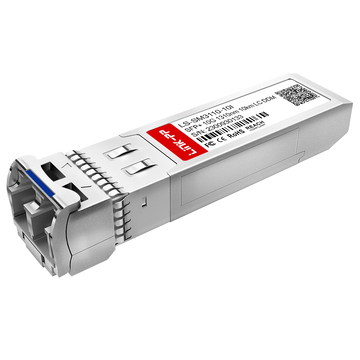

F5 Networks F5-UPG-SFP+LR-R-I Compatible LINK-PP 10G SFP+ Specifications The F5 Networks F5-UPG-SFP+LR-R-I Compatible LINK-PP module is a ruggedized, industrial-grade 10Gbps optical transceiver built to withstand extreme temperatures while delivering reliable data transport over Single-Mode Fiber. Utilizing a 1310nm laser and a Duplex LC connector, it achieves a maximum reach of 10 kilometers and includes built-in DOM for continuous operational monitoring. F5 Networks Part NumberF5-UPG-SFP+LR-R-IVendor NameLINK-PP Part Status Active Form Factor SFP+ Max Data

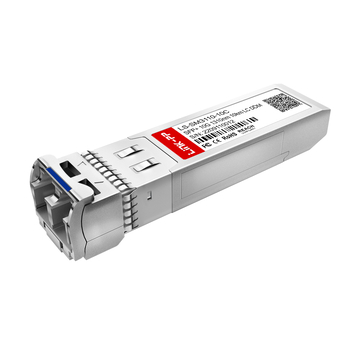

F5 Networks F5-UPG-SFP+LR-R Compatible LINK-PP 10G SFP+ Specifications The F5 Networks F5-UPG-SFP+LR-R Compatible LINK-PP module is a high-performance 10Gbps SFP+ optical transceiver engineered for long-reach data transmission up to 10 kilometers over Single-Mode Fiber (SMF). It operates at a 1310nm wavelength using a Duplex LC connector and features Digital Optical Monitoring (DOM) to provide real-time diagnostic data for optimal network management. F5 Networks Part NumberF5-UPG-SFP+LR-RVendor NameLINK-PP Part Status Active Form Factor SFP+ Max Data Rate 10

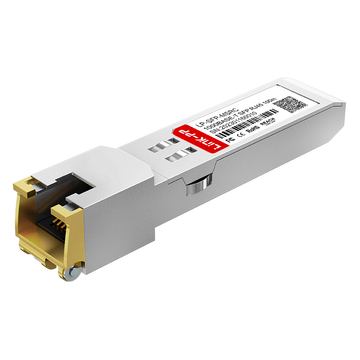

F5 Networks F5-UPG-SFPC-R Compatible LINK-PP 1000BASE-T SFP Specifications The F5 Networks F5-UPG-SFPC-R Compatible LINK-PP module is a high-performance copper SFP transceiver operating over standard Category 5 twisted-pair cabling. Delivering a fixed 1000Mbps data rate via a SERDES interface, this module fully complies with IEEE 802.3ab standards. It features a robust metallic enclosure for low EMI and operates reliably within a commercial temperature range of 0 to 70°C. F5 Networks Part NumberF5-UPG-SFPC-RVendor NameLINK-PP Part Status Active Form Factor

F5 Networks F5-UPG-SFP+-R Compatible LINK-PP 10G SFP+ Specifications F5-UPG-SFP+-R is a 10GBASE-SR SFP+ optical transceiver module designed for 850nm operation, delivering up to 300m transmission over multi-mode fiber (MMF), featuring a duplex LC/UPC interface, compliant with SFP+ MSA standards, and equipped with digital optical monitoring (DOM) for real-time parameter visibility. F5 Networks Part NumberF5-UPG-SFP+-RVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 850nm Max Cable Distance 300m Connector Duplex LC Media MMF

F5 Networks F5-UPG-QSFP+ER4 Compatible LINK-PP 40G QSFP+ Specifications The F5 Networks F5-UPG-QSFP+ER4 Compatible LINK-PP module is a high-performance 40G QSFP+ transceiver designed for demanding optical communication applications. Fully compliant with the 40GBASE-ER4 standard, this optical module delivers an aggregate bandwidth exceeding 40Gbps. It operates efficiently over single-mode fiber, making it an optimal choice for reliable, high-speed data center interconnections and long-haul networking. F5 Networks Part NumberF5-UPG-QSFP+ER4Vendor NameLINK-PP Form

F5 Networks F5-UPG-QSFP+LR4 Compatible LINK-PP 40G QSFP+ Specifications The F5 Networks F5-UPG-QSFP+LR4 Compatible LINK-PP module is a premium 40GBASE-LR4 QSFP+ optical transceiver designed for high-speed data center networks. This commercial-grade 40G Ethernet module operates over single-mode fiber (SMF), delivering exceptional bandwidth and long-range reliability. Featuring a hot-swappable QSFP+ form factor, it ensures seamless integration, minimal latency, and maximum performance for enterprise-level telecommunication upgrades. F5 Networks Part

F5 Networks F5-UPG-QSFP28-ER4 Compatible LINK-PP 100G QSFP28 Specifications The F5 Networks F5-UPG-QSFP28-ER4 Compatible LINK-PP module is a high-performance 100G QSFP28 ER4 optical transceiver engineered for long-haul single-mode fiber communications. Operating over a LAN-WDM multiplexed grid across four channels, it strictly complies with QSFP28 MSA, IEEE 802.3ba 100GBASE-ER4, and OTN OTU4 standards to ensure robust 100Gbps transmission up to 40km with integrated DDM capabilities. F5 Networks Part NumberF5-UPG-QSFP28-ER4Vendor NameLINK-PP Form Factor QSFP28 Max

F5 Networks F5-UPG-QSFP28-LR4 Compatible LINK-PP 100G QSFP28 Specifications The F5 Networks F5-UPG-QSFP28-LR4 Compatible LINK-PP module is a 100GBASE-LR4 QSFP28 optical transceiver designed for high-speed Ethernet links over single-mode fiber. It supports an aggregate data rate of 103.125Gb/s, a maximum reach of 10km, and provides stable duplex LC connectivity with DDM support for real-time monitoring. F5 Networks Part NumberF5-UPG-QSFP28-LR4Vendor NameLINK-PP Form Factor QSFP28 Max Data Rate 103.1Gbps Wavelength 1295.56nm, 1300.05nm, 1304.58nm and

F5 Networks F5-UPG-QSFP28-wdm10 Compatible LINK-PP 100G QSFP28 CWDM Optical Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 10km, LC, DOM) The F5 Networks F5-UPG-QSFP28-wdm10 Compatible LINK-PP 100G QSFP CWDM4 Transceiver is designed for 10km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector. F5 Networks Part NumberF5-UPG-QSFP28-wdm1
