Our deployment includes roadside telecom enclosures and outdoor cabinets. Do you offer an industrial wide-temperature (-40°C to +85°C) version of this SR4 optic?

The standard LQ-M85100-SR4C is designed for commercial operating temperatures (0°C to +70°C / 32°F to 158°F) in standard data center and indoor server environments. However, industrial wide-temperature (-40°C to +85°C) custom configurations are available upon request for outdoor cabinets and harsh edge environments. Please reach out to our engineering team before ordering to request the industrial-grade version.

How does the LQ-M85100-SR4C compare to OEM brand optics (like Cisco QSFP-100G-SR4-S or H3C QSFP-100G-SR4-MM850) in terms of bit error rate and long-term reliability?

The LQ-M85100-SR4C delivers 100% equivalent optical performance to OEM parts at a fraction of the cost. Built with tier-1 850nm VCSEL transmitters and PIN receivers, each unit undergoes strict optical spectrum, eye pattern (mask margin > 20%), and BERT testing (< 1×10⁻¹²). It fully supports standard DDM/DOM real-time diagnostic monitoring and includes an industry-leading 5-year warranty.

What fiber patch cable types, polarity, and connector configurations are required to achieve the full 100-meter reach?

This module requires standard Multimode Fiber (MMF) terminated with an MTP/MPO-12 connector (Female, UPC polish, using the outer 8 fibers for 4x Tx and 4x Rx). Maximum reach is up to 70 meters on OM3 multimode fiber and up to 100 meters on OM4 multimode fiber when Host Forward Error Correction (FEC) is enabled. Standard Type-B (Key-Up to Key-Up) polarity trunk cables are recommended for switch-to-switch direct interconnects.

Can we use this 100G QSFP28 SR4 module to link a Cisco Nexus switch on one end and an Arista or Mellanox switch on the other without vendor-lock issues?

Yes, absolutely. We provide custom EEPROM vendor coding before shipment. You can specify the exact host switch models (e.g., Cisco, Arista, NVIDIA/Mellanox, Juniper, Dell, etc.) during checkout or via direct message, and each transceiver will be custom-coded and host-tested to guarantee seamless cross-platform interoperability without triggering unsupported transceiver alarms.

Does this transceiver comply with standard industry MSA specifications and international regulatory certifications?

Yes. The module strictly complies with QSFP28 MSA, SFF-8636, IEEE 802.3bm (100GBASE-SR4), and CAUI-4 electrical interfaces. Furthermore, our manufacturing facility and products are fully certified under ISO 9001, ISO 14001, ISO 27001, ISO 45001, RoHS (Directive EU 2015/863), CE, FCC, and UL safety standards.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 100G QSFP28/SFP-DD; 223380

Click to open expanded view

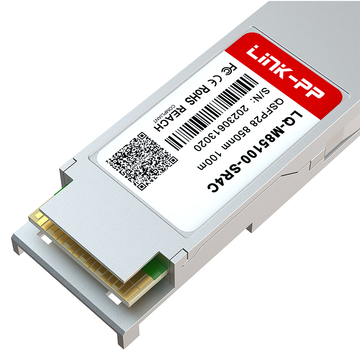

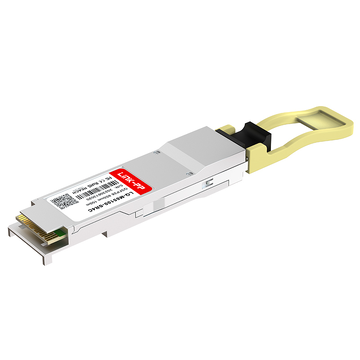

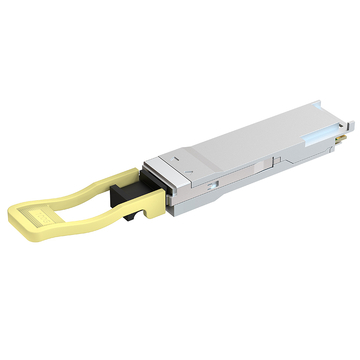

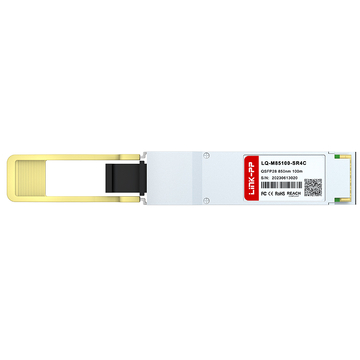

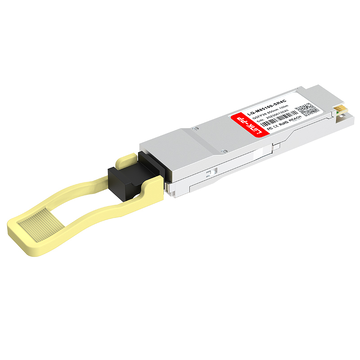

Alcatel-Lucent 3HE10551AA Compatible LINK-PP 100G QSFP28 850nm 100m MPO-12 DOM MMF Optical Transceiver Module

Name: Alcatel-Lucent 3HE10551AA Compatible LINK-PP 100G QSFP28 850nm 100m MPO-12 DOM MMF Optical Transceiver Module
Brand: LINK-PP
SKU: 223380
Price: 74.8 USD
Availability: InStock
Rating: 5 (24 reviews)

# 223380

Product: Alcatel-Lucent 3HE10551AA Compatible LINK-PP 100G QSFP28 850nm 100m MPO-12 DOM MMF Optical Transceiver Module
SKU: 223380
P/N: LQ-M85100-SR4C
Price: $ 85
Stock: 1929 in Stock
Sold: 885
Product URL: https://www.l-p.com/products/494393.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

24 Reviews

5 Questions

Request Stock

885 Sold

$ 85

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 85

$ 82.45

100

$ 79.9

1000

$ 77.35

3000

$ 74.8

Manufacture: LINK-PP

P/N: LQ-M85100-SR4C

Compatible:: Cisco; LINK-PP; Alcatel-Lucent; Allied Telesis; Arista Networks; Avago; Broadcom; Brocade; Check Point; Chelsio; Ciena; D-Link; Dell; Edge-Core; Extreme; F5 Networks; FS; Fortinet; Generic; H3C; HPE; HPE Aruba; HW; IBM; Intel; Juniper Networks; MRV; Mikrotik; NVIDIA/Mellanox; Palo Alto

Compatible P/N:: 3HE10551AA | 100m

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

Alcatel-Lucent 3HE10551AA Compatible LINK-PP 100G QSFP28 Specifications

The Alcatel-Lucent 3HE10551AA Compatible LINK-PP module is a high-performance 100G QSFP28 SR4 optical transceiver designed for short-reach data communication. Operating at a 4x25.78Gbps data rate, this commercial-grade QSFP28 module ensures exceptional signal integrity. It features a maximum power consumption of just 2.5W, making this 100GBASE-SR4 solution incredibly energy-efficient for modern enterprise networking environments.

Alcatel-Lucent Part Number	3HE10551AA	Vendor Name	LINK-PP
Form Factor	QSFP28	Max Data Rate	103.125Gbps
Wavelength	850nm	Max Cable Distance	70m@OM3/100m@OM4
Connector	MPO-12	Media	MMF
Transmitter Type	VCSEL	Receiver Type	PIN
DDM/DOM	Supported	Operating Temperature Range	0°C to +70°C
Modulation (Electrical)	4x 25G-NRZ	Modulation (Optical)	4x 25G-NRZ
Protocols	QSFP28 MSA, SFF-8636, IEEE 802.3bm, CAUI-4	Warranty	5 Years

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LQ-M85100-SR4C.pdf

Questions & Answers
Ask a Question

No data

Q: Our deployment includes roadside telecom enclosures and outdoor cabinets. Do you offer an industrial wide-temperature (-40°C to +85°C) version of this SR4 optic? By R***l on 2026-06-01

A: The standard LQ-M85100-SR4C is designed for commercial operating temperatures (0°C to +70°C / 32°F to 158°F) in standard data center and indoor server environments. However, industrial wide-temperature (-40°C to +85°C) custom configurations are available upon request for outdoor cabinets and harsh edge environments. Please reach out to our engineering team before ordering to request the industrial-grade version. By admin on 2026-06-01
Q: How does the LQ-M85100-SR4C compare to OEM brand optics (like Cisco QSFP-100G-SR4-S or H3C QSFP-100G-SR4-MM850) in terms of bit error rate and long-term reliability? By J***z on 2025-11-27

A: The LQ-M85100-SR4C delivers 100% equivalent optical performance to OEM parts at a fraction of the cost. Built with tier-1 850nm VCSEL transmitters and PIN receivers, each unit undergoes strict optical spectrum, eye pattern (mask margin > 20%), and BERT testing (< 1×10⁻¹²). It fully supports standard DDM/DOM real-time diagnostic monitoring and includes an industry-leading 5-year warranty. By admin on 2025-11-27
Q: What fiber patch cable types, polarity, and connector configurations are required to achieve the full 100-meter reach? By C***a on 2025-11-25

A: This module requires standard Multimode Fiber (MMF) terminated with an MTP/MPO-12 connector (Female, UPC polish, using the outer 8 fibers for 4x Tx and 4x Rx). Maximum reach is up to 70 meters on OM3 multimode fiber and up to 100 meters on OM4 multimode fiber when Host Forward Error Correction (FEC) is enabled. Standard Type-B (Key-Up to Key-Up) polarity trunk cables are recommended for switch-to-switch direct interconnects. By admin on 2025-11-25
Q: Can we use this 100G QSFP28 SR4 module to link a Cisco Nexus switch on one end and an Arista or Mellanox switch on the other without vendor-lock issues? By B***z on 2025-10-08

A: Yes, absolutely. We provide custom EEPROM vendor coding before shipment. You can specify the exact host switch models (e.g., Cisco, Arista, NVIDIA/Mellanox, Juniper, Dell, etc.) during checkout or via direct message, and each transceiver will be custom-coded and host-tested to guarantee seamless cross-platform interoperability without triggering unsupported transceiver alarms. By admin on 2025-10-08
Q: Does this transceiver comply with standard industry MSA specifications and international regulatory certifications? By C***g on 2025-08-01

A: Yes. The module strictly complies with QSFP28 MSA, SFF-8636, IEEE 802.3bm (100GBASE-SR4), and CAUI-4 electrical interfaces. Furthermore, our manufacturing facility and products are fully certified under ISO 9001, ISO 14001, ISO 27001, ISO 45001, RoHS (Directive EU 2015/863), CE, FCC, and UL safety standards. By admin on 2025-08-01
