Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 10G SFP+; 211262

Click to open expanded view

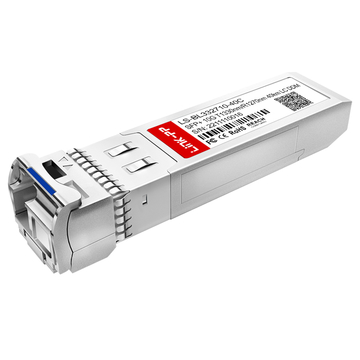

Brocade 10G-SFPP-BXD-40K Compatible LINK-PP 10G SFP+ BiDi 1330nm-TX/1270nm-RX 40km Simplex LC/UPC DOM SMF Optical Transceiver Module

Name: Brocade 10G-SFPP-BXD-40K Compatible LINK-PP 10G SFP+ BiDi 1330nm-TX/1270nm-RX 40km Simplex LC/UPC DOM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 211262
Price: 18.92 USD
Availability: InStock
Rating: 5 (27 reviews)

Product: Brocade 10G-SFPP-BXD-40K Compatible LINK-PP 10G SFP+ BiDi 1330nm-TX/1270nm-RX 40km Simplex LC/UPC DOM SMF Optical Transceiver Module
SKU: 211262
P/N: LS-BL332710-40C
Price: $ 22
Stock: 982 in Stock
Sold: 1.2K
Product URL: https://www.l-p.com/products/477205.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

27 Reviews

5 Questions

1.2K Sold

$ 22

Free shipping. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 22

100

$ 20.9

1000

$ 20.24

3000

$ 19.58

6000

$ 18.92

Manufacture: LINK-PP P/N: LS-BL332710-40C SKU: 211262

Compatible:: Cisco; LINK-PP; ADTRAN; Allied Telesis; Arista; Aruba; Broadcom; Brocade; Ciena; D-Link; DELL; Edgecore; Extreme; F5; FS; Fortinet; Generic; H3C; HW; Intel; Juniper; Mellanox; MikroTik; Netgear; Palo Alto; Planet; RAD; Ubiquiti

Compatible P/N:: 10G-SFPP-BXD | 10km; 10G-SFPP-BXD-I | 10km; 10G-SFPP-BXU | 10km; 10G-SFPP-BXU-I | 10km; 10G-SFPP-BXD-20K | 20km; 10G-SFPP-BXD-20K-I | 20km; 10G-SFPP-BXU-20K | 20km; 10G-SFPP-BXU-20K-I | 20km; 10G-SFPP-BXD-40K | 40km; 10G-SFPP-BXU-40K | 40km; SFP-10G23-BX40-I | 40km; SFP-10G32-BX40-I | 40km; 10G-SFPP-BXD-60K | 60km; 10G-SFPP-BXD-60K-I | 60km; 10G-SFPP-BXU-60K | 60km; 10G-SFPP-BXU-60K-I | 60km; 10G-SFPP-BXD-80K | 80km; 10G-SFPP-BXD-80K-I | 80km; 10G-SFPP-BXU-80K | 80km; 10G-SFPP-BXU-80K-I | 80km; 10G-SFPP-BXD-100K | 100km; 10G-SFPP-BXU-100K | 100km

Shipping:

Free Shipping

to United States via FedEx

Estimated delivery time : 3-10 days.

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Specifications
Features
Certification
Testing
Shipping
Usage
Support
Assurance
FAQ
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

Brocade 10G-SFPP-BXD-40K Compatible LINK-PP 10G SFP+ Specifications

The Brocade 10G-SFPP-BXD-40K Compatible LINK-PP module is a 10G BiDi SFP+ optical transceiver designed to double network capacity by utilizing a single strand of single-mode fiber, featuring a 1330nm-TX/1270nm-RX wavelength split and an LC simplex interface with DOM support to achieve a reliable 40km transmission reach.

Brocade Part Number	10G-SFPP-BXD-40K	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1330nm-TX/1270nm-RX	Max Cable Distance	40km
Connector	Simplex LC	Media	SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	-1 to +5dBm	RX Power	-17 to +1dBm
Receiver Sensitivity	-15dBm	Receiver Overload	0.5dBm
Operating Temperature Range	0 to 70°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI

Key Features of Brocade 10G-SFPP-BXD-40K Compatible LINK-PP 10G SFP+

The Brocade 10G-SFPP-BXD-40K Compatible LINK-PP module is a single-strand 10G BiDi SFP+ transceiver that combines a 40km reach, dual-wavelength signaling, and diagnostic monitoring. This integrated module maximizes fiber efficiency while delivering stable, full-duplex data rates.

Brocade 10G-SFPP-BXD-40K Compatible LINK-PP 10G SFP+ Optical Module

This hot-pluggable optical transceiver offers standard 10Gbps speeds in a compact form factor. It easily plugs into any compatible SFP+ port for immediate deployment.

10G-SFPP-BXD-40K: 10 Gbps Connectivity for Long-Haul Links

Designed for enterprise core networks and campus backbones, this module supplies steady 10Gbps bandwidth across separate facilities. It is ideal for aggregating data across extended distances.

10G-SFPP-BXD-40K Module with 1330nm-TX and 1270nm-RX Wavelength

The module utilizes a precise 1330nm transmit and 1270nm receive wavelength combination. This layout allows simultaneous two-way traffic on one fiber without signal overlapping.

10G-SFPP-BXD-40K Module Supporting 40km Transmission

Featuring a strong optical budget, the transceiver maintains link stability over single-mode fiber (SMF) up to 40km. It provides a reliable long-distance connection without requiring extra inline amplifiers.

10G-SFPP-BXD-40K Module with Simplex LC/UPC Interface

Equipped with a single simplex LC/UPC receptacle, the unit requires only one fiber patch cable instead of a duplex pair. This design saves physical space and simplifies cable routing.

10G-SFPP-BXD-40K Module with DOM for Real-Time Monitoring

Built-in Digital Optical Monitoring (DOM) continuously tracks internal telemetry such as laser power, temperature, and voltage. This enables network admins to quickly diagnose and fix link issues.

Brocade 10G-SFPP-BXD-40K Compatible LINK-PP 10G SFP+ Certification

The Brocade 10G-SFPP-BXD-40K Compatible LINK-PP meets strict international standards, holding recognized certifications including ISO 9001, CE, RoHS, and FCC to ensure safety, environmental compliance, and manufacturing excellence.

10G-SFPP-BXD-40K Quality Testing Program

Every transceiver module undergoes rigorous hardware inspection and optical performance testing before shipment to guarantee optimal signal integrity.

10G-SFPP-BXD-40K Quality Certifications

These official international credentials verify that the module meets strict manufacturing guidelines, offering peace of mind regarding long-term reliability and environmental safety.

10G-SFPP-BXD-40K Certified for Reliable Host-Device Compatibility

The module is fully tested and verified across a wide range of industry-standard enterprise switches and routers to ensure seamless plug-and-play network integration.

Rigorous Testing Ensures Reliable SFP+ Performance

Comprehensive quality inspections guarantee that every transceiver delivers flawless communication metrics under continuous enterprise workloads. Discover our complete testing protocols at the [Link-PP Test Support Center].

Rigorous Testing Ensures Reliable Transceiver Performance

Optical Spectrum Test

Confirm accurate laser output wavelength parameters.

Eye Pattern Test

Evaluate electrical signal wave shape clarity.

Bit Error Rate Test

Ensure packet transmission remains completely error-free.

Temperature Test

Validate hardware durability under extreme heat and cold.

Product Shipping for Brocade 10G-SFPP-BXD-40K Compatible LINK-PP 10G SFP+

Our efficient logistics process guarantees safe handling and swift global delivery for every order. We protect your hardware from warehouse to destination.

Anti-Static Protective Packaging

Prevent electrostatic discharge damage using specialized shielding bags.

Shock-Resistant Transport Protection

Cushion items against impact during transit using premium foam inserts.

Fast Order Processing and Dispatch

Accelerate warehouse fulfillment to minimize wait times after purchase.

Global Logistics and International Delivery

Ship items worldwide through reliable international courier services.

Brocade 10G-SFPP-BXD-40K Compatible LINK-PP 10G SFP+ Usage Demonstration

The Brocade 10G-SFPP-BXD-40K Compatible LINK-PP 10G SFP+ module is widely deployed in enterprise backbones, campus networks, and metropolitan aggregation layers. It provides an efficient solution for interconnecting high-density switches, edge routers, and data center racks over long distances while maximizing existing single-strand fiber infrastructure.

10G-SFPP-BXD-40K Technical Support

LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.

Pre-Sales Technical Consultation

Professional guidance to help you select the optimal 10G-SFPP-BXD-40K module for your network design and application needs.

Compatibility Verification Support

Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.

Deployment & Installation Assistance

Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.

Long-Term Technical Assurance

Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.

Brocade 10G-SFPP-BXD-40K Compatible LINK-PP 10G SFP+ After-Sales Assurance

LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.

15-day no-reason return and refund

Free replacement for dead-on-arrival (DOA) or defective items within the initial period

Free repair services for manufacturing defects throughout the warranty period

Warranty exclusions and conditions apply

Brocade 10G-SFPP-BXD-40K Compatible LINK-PP 10G SFP+ FAQ

Find quick technical answers regarding complementary wavelength pairing, single-mode fiber optimization, DOM telemetry data, and BiDi transmission latency performance.

01. What specific module model must be deployed at the opposite end of the fiber link?

You must use a matching 1270nm-TX/1330nm-RX transceiver at the remote site so that the transmit and receive optical channels cross correctly.

02. Why is it critical to use single-mode fiber instead of multi-mode fiber?

Multi-mode core diameters cause severe modal dispersion at 40km, whereas single-mode fiber guarantees the signal integrity needed for long-haul laser transmission.

03. What parameters can I track via the DOM interface?

The DOM feature reads internal telemetry, specifically monitoring internal module temperature, supply voltage, laser bias current, TX power, and RX power.

04. Does this BiDi technology introduce transmission latency compared to standard dual-fiber optical modules?

No, the internal WDM filters split wavelengths purely passively at light speed, meaning single-strand Bidirectional transmission introduces zero added latency.

Model Comparison Table

	Current Model 10G-SFPP-BXD-40K	SFP-10G32-BX40-I	SFP-10G23-BX40-I

Compatible	Brocade	Brocade	Brocade
Data Rate (Max)	10.7Gbps	10.7Gbps	10.7Gbps
Wavelength	1330nm-TX/1270nm-RX	1330nm-TX/1270nm-RX	1270nm-TX/1330nm-RX
Connector	Simplex LC	Simplex LC	Simplex LC
Cable Distance (Max)	40km	40km	40km
Cable Type	SMF	SMF	SMF
TX Power	-1 to +5dBm	-1 to +5dBm	-1 to +5dBm
Receiver Sensitivity	-15dBm	-15dBm	-17 to +1dBm
Operating Temperature	0 to 70°C	-40 to 85°C	-40 to 85°C
Vendor Name	LINK-PP	LINK-PP	LINK-PP
Form Factor	SFP+	SFP+	SFP+
Transmitter Type	DFB	DFB	DFB
Receiver Type	PIN	PIN	PIN
Receiver Overload	0.5dBm	0.5dBm	0.5dBm
Protocols	SFP+ MSA Compliant, CPRI, eCPRI	IEEE 802.3ae, SFP+ MSA, SFF-8472, SFF-8431, SFF-8432, CPRI, OBSAI	IEEE 802.3ae, SFP+ MSA, SFF-8472, SFF-8431, SFF-8432, CPRI, OBSAI

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-BL332710-40C.pdf

Questions & Answers
Ask a Question

No data

Q: Are these 10G BiDi SFP+modules hot-pluggable inside an active data center distribution frames chassis? By P***n on 2026-04-01

A: Yes, the standard SFP+ mechanical structure allows safe, live hot-swapping without interrupting adjacent operational port links. By admin on 2026-04-02
Q: Does the DOM telemetry on this SFP+ transceiver provide real-time laser bias current and absolute RX power readings? By S***z on 2026-02-19

A: Absolutely, the built-in SFF-8472 digital optical monitoring outputs live diagnostics directly to your CLI or SNMP dashboard. This lets you monitor transceiver health, internal voltage, and dBm line degradation instantly. By admin on 2026-02-20
Q: Can I get a volume discount if our company buys a batch of 500 units for a campus network core project? By T***n on 2026-01-29

A: Absolutely. Please contact our corporate sales team directly to receive customized tiered volume pricing and bulk logistics discounts. By admin on 2026-01-30
Q: Do you test every individual module for bit error rate limits prior to leaving the assembly line? By R***s on 2025-11-14

A: Yes, 100% of our optical transceivers pass strict bit error rate and hardware compatibility loop testing before packaging. By admin on 2025-11-15
Q: What exact wavelength pairing do I need on the remote switch to link up with this LS-BL332710-40C module? By M***n on 2025-09-08

A: You need its exact complementary model, the LS-BL273310-40C, which transmits at 1270nm and receives at 1330nm. Matching a 1330nm-TX with another 1330nm-TX on a single strand will result in zero traffic synchronization. By admin on 2025-09-09
