LP11GC01000E qsfp-dd 1x1 cage press-fit through hole right angle with emi spring finger

LP11GC01000E QSFP-DD 1x1 Cage Press-Fit Through Hole Right Angle With EMI Spring Finger

Product summary

Product
LP11GC01000E QSFP-DD 1x1 Cage Press-Fit Through Hole Right Angle With EMI Spring Finger
SKU
203702
P/N
LP11GC01000E
Price
$ 2.95
Stock
52 in Stock
Sold
948
Unit price $ 2.95
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11GC01000ESKU: 203702

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LP11GC01000E
Volume pricing Online tiers · larger qty or custom price on request
$ 2.950
1–99 pcs
$ 2.854
100–999 pcs
$ 2.730
1,000–4,999 pcs
$ 2.511
5,000–9,999 pcs
$ 2.306
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
52 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 2.95

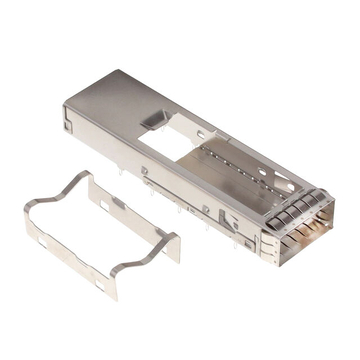

LINK-PP LP11GC01000E QSFP-DD 1x1 Cage With EMI Spring Finger Press-Fit Through Hole Right Angle

LINK-PP Part Number LP11GC01000E Part Status Active
Product Type Cage Form Factor QSFP-DD
Max Data Rate 400 Gbps Features EMI Shielded
Port Matrix Configuration 1×1 Number of Ports 1
Included Connector No Included Heat Sink No
Included Lightpipe No EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.081/2.05 Recommended PCB Thickness (Inches/mm) 0.057/1.44 (MIN)
Length (Inches/mm) 2.804/71.23 Width (Inches/mm) 0.820/20.82
Height (Inches/mm) 0.382/9.70 Cage Material Stainless Steel
Contact Plating None Cage Plating Nickel
Operating Temperature Range -55 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11GC01000E.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    On our samples the spring height was still inside tolerance at 200 cycles and had moved about 0.05mm by 500. We gauge spring height with a pin gauge at incoming inspection, because a spring that has relaxed shows up as an emissions failure rather than as a mechanical one. If it goes, you replace the cage, not the spring. by LINK-PP Technical Support
  • A:
    No, it applies to the cage and its materials. The module has its own narrower window, which is why we test the assembly: four hours at -50, then power up and time the link. The cage being rated colder than the module is what gives you margin on the cold start rather than on steady state. by LINK-PP Technical Support
  • A:
    The sink version is for airflow cooling and adds fin area above the cage. This one leaves the top flat so a cold plate or your own heatsink can sit directly on it. The footprint and the tail pattern are the same, so the two are interchangeable on the board, but the temperature rating differs: this one is -55 to 85. by LINK-PP Technical Support
  • A:
    By conduction into whatever sits on top of the cage. The cage roof is thin stainless, so the module presses against it and the heat goes into your cold plate, chassis wall, or the customer's own heatsink. At 400G that interface has to be designed, not assumed, because airflow alone across a bare cage will not hold a 400G module inside its window. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    24 Reviews

  • 5 Stars
    92%
    4 Stars
    8%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (24)
No data
K***e
Spain
Verified Purchase
5.0
2026-11-16
Handy no light pipe to line up, tray feeds without a jam. =)
C***n
Czech Republic
Verified Purchase
5.0
2026-10-25
Handy LP11GC01000E under our own sink.
D***e
Thailand
Verified Purchase
5.0
2026-10-03
This is the bare cage, so we bolt our aluminium block over it, which we are happy to do. With a 200G module inside and 90 lfm of airflow the case settled at 62℃, 4℃ under the limit our thermal team set, and the tails took two passes to seat on a 2.4 mm board.
A***o
Greece
Verified Purchase
5.0
2026-09-11
Glad the press-fit tails seat in one stroke, no solder needed.
S***y
Finland
Verified Purchase
4.0
2026-08-20
Two of the 6 cages came from transit with one finger bent flat, but the cages snapped into the chassis and the shield read 0.4 ohm on every one we checked.
