LP11GC017P0 qsfp-dd 1x1 cage assembly with heat sink light pipe emi spring finger

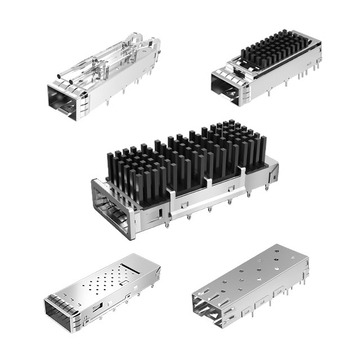

LP11GC017P0 QSFP-DD 1x1 Cage Assembly With Heat Sink Light Pipe EMI Spring Finger

Product summary

Product
LP11GC017P0 QSFP-DD 1x1 Cage Assembly With Heat Sink Light Pipe EMI Spring Finger
SKU
203749
P/N
LP11GC017P0
Price
$ 11.19
Stock
320 in Stock
Sold
6.8K
Unit price $ 11.19
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11GC017P0SKU: 203749

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LP11GC017P0
Volume pricing Online tiers · larger qty or custom price on request
$ 11.190
1–99 pcs
$ 10.812
100–999 pcs
$ 10.342
1,000–4,999 pcs
$ 9.515
5,000–9,999 pcs
$ 8.738
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
320 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 11.19

LINK-PP LP11GC017P0 QSFP-DD 1x1 Cage Assembly With Heat Sink Light Pipe EMI Spring Finger

LINK-PP Part Number LP11GC017P0 Part Status Active
Product Type Cage Assembly Form Factor QSFP-DD
Max Data Rate 400 Gbps Features EMI Shielded
Port Matrix Configuration 1×1 Number of Ports 1
Included Connector No Included Heat Sink Yes
Included Lightpipe Yes EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.081/2.05 Recommended PCB Thickness (Inches/mm) 0.062/1.57 (MIN)
Length (Inches/mm) 3.073/78.06 (REF) Width (Inches/mm) 0.766/19.46
Height (Inches/mm) 0.543/13.80 (REF) Cage Material Copper Alloy
Contact Plating None Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11GC017P0.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    It needs to be, and we fit a temporary cap over the pipe end. The ram also needs a relief cut for the fins, otherwise it lands on the sink instead of the shell. With both in place we pressed 16 units with no pipe damage and no tail issues. by LINK-PP Technical Support
  • A:
    Offset from the port centre line, on the latch side. It is on the cage drawing, and we cut our panel from that drawing rather than scaling from a photo. The first article was checked against a module before the panel went to production, which is worth the hour it takes. by LINK-PP Technical Support
  • A:
    Not on this part, because it does not cross the fin field. We measured 71 degrees case at 35 ambient with 1.4 m/s front to back, which is the same as the sink version without a pipe in the same chassis. A pipe routed across the fins would have cost most of the sink, so the routing is the whole design. by LINK-PP Technical Support
  • A:
    The pipe is routed beside the fin stack rather than through it. The sink still gets clean air across the fins, and the pipe carries the indicator out at the port opening. The trade is that the pipe exit is offset from the port centre, so the bezel opening has to come from the drawing rather than from the port pitch. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    22 Reviews

  • 5 Stars
    91%
    4 Stars
    9%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (22)
No data
W***n
Colombia
Verified Purchase
5.0
2026-11-15
EMI springs grip all four panel sides, and ours sits flush. :D
K***t
Brazil
Verified Purchase
4.0
2026-10-31
The 3D model was missing from the download link, but the cage pressed in square and the pipe came out clean against the bezel cutout.
H***o
Ukraine
Verified Purchase
5.0
2026-10-17
One port, cage only, ours dropped in.
R***i
Spain
Verified Purchase
5.0
2026-10-17
We had one failure in the first build and it was ours, not the part's: the temporary cap over the pipe stayed on during first article and the port looked dead. Since then the cap is red and it goes in the traveller. The cage itself has been the least troublesome item on that build.
Y***n
Hungary
Verified Purchase
5.0
2026-10-01
Tray packed, sixteen pieces, and every pipe came out of the tray straight and clear.
