LP11GC01070 qsfp-dd 1x1 cage with heat sink emi spring finger

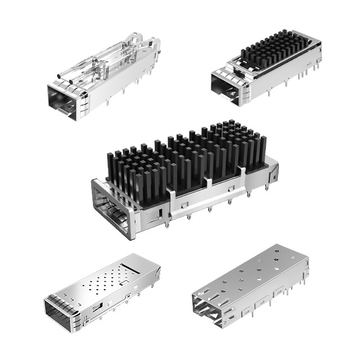

LP11GC01070 QSFP-DD 1x1 Cage With Heat Sink EMI Spring Finger

Product summary

Product
LP11GC01070 QSFP-DD 1x1 Cage With Heat Sink EMI Spring Finger
SKU
203737
P/N
LP11GC01070
Price
$ 5.28
Stock
160 in Stock
Sold
850
Unit price $ 5.28
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11GC01070SKU: 203737

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LP11GC01070
Volume pricing Online tiers · larger qty or custom price on request
$ 5.280
1–99 pcs
$ 5.103
100–999 pcs
$ 4.881
1,000–4,999 pcs
$ 4.491
5,000–9,999 pcs
$ 4.124
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
160 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 5.28

LINK-PP LP11GC01070 QSFP-DD 1x1 Cage With Heat Sink EMI Spring Finger

LINK-PP Part Number LP11GC01070 Part Status Active
Product Type Cage Assembly Form Factor QSFP-DD
Max Data Rate 400 Gbps Features EMI Shielded
Port Matrix Configuration 1×1 Number of Ports 1
Included Connector No Included Heat Sink Yes
Included Lightpipe No EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.091/2.30 Recommended PCB Thickness (Inches/mm) 0.063/1.60 (MIN)
Length (Inches/mm) 2.859/72.61 Width (Inches/mm) 0.852/21.65
Height (Inches/mm) 0.640/16.25 Cage Material Stainless Steel
Contact Plating None Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11GC01070.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Yes, because the mass sits above the board and the ram has to clear the fins. We made a ram with a relief cut so it lands on the shell rather than the sink, and we use a support plate under the board. With that, the tails seated first pass on 20 units, and coplanarity was inside 0.1mm. by LINK-PP Technical Support
  • A:
    Front to back, along the cage. Side flow across a fin stack this short does very little because the air does not travel far enough through the gap. On our 1U we measured 11 degrees of improvement with 1.2 m/s front to back, and less than 3 degrees with the same air from the side. by LINK-PP Technical Support
  • A:
    It is bonded to the cage, so there is no pad and no clip to place. The thermal path is module to cage roof to sink, and the contact pressure comes from the module latch pulling the module up. That is why the sink only works with the module fully latched and why a bowed cage cools nothing. by LINK-PP Technical Support
  • A:
    The page shows a dash in that field, so we did not rely on it. We confirmed with LINK-PP that the cage is rated -40 to 85, and we qualified the assembly at -40 cold start and 85 case. If you need the figure in writing for a qualification file, ask them for the datasheet revision rather than using the table on the page. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    23 Reviews

  • 5 Stars
    91%
    4 Stars
    9%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (23)
No data
P***d
Spain
Verified Purchase
5.0
2026-11-16
Handy springs, 0.2 ohm to chassis.
P***d
Austria
Verified Purchase
5.0
2026-10-18
Our 400G port ran at 71℃ on the case with the old low sink, so we swapped to this cage and the same module settled at 58℃ after an hour of traffic. The fins sit over the whole body and the sink clamps without a tool, and we are happy with that.
M***d
Argentina
Verified Purchase
5.0
2026-09-18
Press-fit means one stroke per cage, which saves rework on the 400G board. =)
R***d
Italy
Verified Purchase
4.0
2026-08-20
The tray said LP11GC01070 and two of the 24 cages came with a fin bent, but the rest pressed flat and every cage worked perfectly on our test board.
A***a
Belgium
Verified Purchase
5.0
2026-05-23
One thing we did not expect is how the sink changes the press. The mass above the board means the ram has to come down square, and a press with any tilt will seat one end and leave the other proud. We set ours up on a dummy board first, which is the cheapest hour you will spend on this part.
