amphenol ue36c1650005a3a compatible link-pp lp11gc01030m qsfp-dd 1x1 cage with heat sink emi spring finger

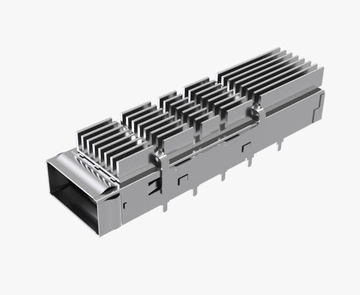

Amphenol UE36C1650005A3A Compatible LINK-PP LP11GC01030M QSFP-DD 1x1 Cage With Heat Sink EMI Spring Finger

Product summary

Product
Amphenol UE36C1650005A3A Compatible LINK-PP LP11GC01030M QSFP-DD 1x1 Cage With Heat Sink EMI Spring Finger
SKU
203744
P/N
LP11GC01030M
Price
$ 5.41
Stock
70 in Stock
Sold
930
Unit price $ 5.41
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11GC01030MSKU: 203744

Compatible with Amphenol UE36C1650005A3ADatasheet3D ModelAll downloads

Volume pricing Online tiers · larger qty or custom price on request
$ 5.410
1–99 pcs
$ 5.226
100–999 pcs
$ 4.999
1,000–4,999 pcs
$ 4.599
5,000–9,999 pcs
$ 4.223
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
70 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 5.41

Amphenol UE36C1650005A3A Compatible LINK-PP LP11GC01030M QSFP-DD 1x1 Cage With Heat Sink EMI Spring Finger

LINK-PP Part Number
LP11GC01030M Amphenol Part Number
UE36C1650005A3A
Product Type Cage with Heat Sink Form Factor QSFP-DD
Number of Positions - Mounting Type Through Hole, Right Angle
Termination Press-Fit Features EMI Shielded
Port Matrix Configuration 1x1 Ports Number of Ports 1
Operating Temperature Range -40 – 85°C Included Lightpipe No
Circuit Application Signal EMI Containment Feature Type EMI Springs
Height (Inches/mm) 0.435/11.06 Length (Inches/mm) 2.829/71.85
Width (Inches/mm) 0.821/20.85

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11GC01030M.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Mechanically a QSFP28 module will seat and latch in a QSFP-DD cage, they share the same front opening, and it will link at 100G. Electrically the cage is passive so it does not care. What changes is the thermal path, the sink is sized for a 14W 400G module so a 3.5W QSFP28 will run very cool, which is fine. Many customers use one cage for both to simplify the BOM. by LINK-PP Technical Support
  • A:
    We rate 300 insertions with force staying above 8N, and in our test it only dropped from 18N to 14N at 300 cycles. That is comfortable. Beyond 300 the fingers take a permanent set faster, so for a lab or test bench where modules are swapped daily, plan to replace the cage rather than the module. For a production switch, 300 cycles is more than the product life. by LINK-PP Technical Support
  • A:
    4.0kN to 4.4kN, and the backing plate must cover the full 71.85mm length plus 5mm on each side. A short plate lets the middle bow and you will crack the center vias, we saw that on our first board. Use a flat rock tool, press at 25mm per minute, and stop if force exceeds 4.8kN because that means the tails are misaligned. by LINK-PP Technical Support
  • A:
    Direct contact is the design intent and it is enough for a flat module can, which is standard on QSFP-DD. A pad adds about 1℃ of resistance but helps if your modules have a convex can or a rough finish. We do not supply a pad and adding one changes the insertion depth slightly, so check the cage stop first. The 72℃ number is without any pad. by LINK-PP Technical Support
  • A:
    At 45℃ ambient you need about 250 LFM to hold a 14W module at 72℃ case temperature. At 150 LFM it climbs to 78℃, at 400 LFM it drops to 68℃. Those numbers are with the fins parallel to airflow, crosswise costs you about 6℃. If your cabinet cannot deliver 250 LFM, either derate to a 12W module or add a second fan, do not assume the sink works in still air. by LINK-PP Technical Support

Customer Reviews

  • 5

    21 Reviews

  • 5 Stars
    95%
    4 Stars
    5%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (21)
No data
M***g
Switzerland
Verified Purchase
4.0
2026-09-23
Cage presses in fine and the thermal result is good, but two of the twenty arrived with a bent EMI finger and a scuffed sink. Straightened the finger, it works, but the inner box had no foam for a part this heavy.
A***m
Romania
Verified Purchase
5.0
2026-09-16
One thing worth knowing: because the sink adds 11mm of height and 71.85mm of length, the cage occupies real estate behind the front panel. Our first layout had a capacitor bank where the sink needed to be. Check the keep-out against the drawing before you place it, the mechanical drawing is accurate to 0.1mm.
F***e
Turkey
Verified Purchase
5.0
2026-08-23
Inspection notes: plating on the cage is uniform, no sharp edges on the spring fingers that could scratch a module can, heat sink screw threads are clean and the screws are captive. The 20.85mm width matched our panel cutout exactly. For a 400G part at this price, the mechanical finish is better than the two brand cages we sampled.
E***t
Canada
Verified Purchase
5.0
2026-08-18
We had been fighting a 400G link that dropped under sustained load. Turned out to be thermal throttling, not the optics. Swapped to this cage and the drops stopped because the module now sits 9℃ cooler. Same modules, same firmware, same fiber. I wish I had measured case temperature before blaming the transceivers for two weeks.
A***r
Portugal
Verified Purchase
5.0
2026-07-23
Deployed 40 units in an edge cabinet that swings from -10℃ to 55℃. Six months in, pulled 8: no cage discoloration, spring force 15N to 16N, fins clean with no corrosion, module case temperatures logged 70℃ to 76℃ at peak. Zero throttling events in telemetry. Boringly good, which is what I want from a passive part.
