amphenol ue36d1620005a4a compatible link-pp lp11gc01070 qsfp-dd 1x1 cage with heat sink press-fit through hole

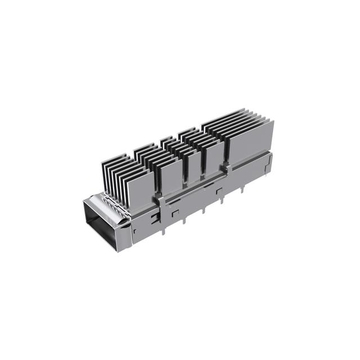

Amphenol UE36D1620005A4A Compatible LINK-PP LP11GC01070 QSFP-DD 1x1 Cage With Heat Sink Press-Fit Through Hole

Product summary

Product
Amphenol UE36D1620005A4A Compatible LINK-PP LP11GC01070 QSFP-DD 1x1 Cage With Heat Sink Press-Fit Through Hole
SKU
203747
P/N
LP11GC01070
Price
$ 5.28
Stock
150 in Stock
Sold
850
Unit price $ 5.28
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11GC01070SKU: 203747

Compatible with Amphenol UE36D1620005A4ADatasheet3D ModelAll downloads

Volume pricing Online tiers · larger qty or custom price on request
$ 5.280
1–99 pcs
$ 5.103
100–999 pcs
$ 4.881
1,000–4,999 pcs
$ 4.491
5,000–9,999 pcs
$ 4.124
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
150 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 5.28

Amphenol UE36D1620005A4A Compatible LINK-PP LP11GC01070 QSFP-DD 1x1 Cage With Heat Sink Press-Fit Through Hole

LINK-PP Part Number
LP11GC01070 Amphenol Part Number UE36D1620005A4A
Product Type Cage with Heat Sink Form Factor QSFP-DD
EMI Containment Feature Type EMI Springs Mounting Type Through Hole, Right Angle
Termination Press-Fit Features EMI Shielded
Port Matrix Configuration 1x1 Ports Number of Ports 1
Operating Temperature Range - Included Lightpipe No

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11GC01070.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Yes, because the mass sits above the board and the ram has to clear the fins. We made a ram with a relief cut so it lands on the shell rather than the sink, and we use a support plate under the board. With that, the tails seated first pass on 20 units, and coplanarity was inside 0.1mm. by LINK-PP Technical Support
  • A:
    Front to back, along the cage. Side flow across a fin stack this short does very little because the air does not travel far enough through the gap. On our 1U we measured 11 degrees of improvement with 1.2 m/s front to back, and less than 3 degrees with the same air from the side. by LINK-PP Technical Support
  • A:
    It is bonded to the cage, so there is no pad and no clip to place. The thermal path is module to cage roof to sink, and the contact pressure comes from the module latch pulling the module up. That is why the sink only works with the module fully latched and why a bowed cage cools nothing. by LINK-PP Technical Support
  • A:
    The page shows a dash in that field, so we did not rely on it. We confirmed with LINK-PP that the cage is rated -40 to 85, and we qualified the assembly at -40 cold start and 85 case. If you need the figure in writing for a qualification file, ask them for the datasheet revision rather than using the table on the page. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    13 Reviews

  • 5 Stars
    92%
    4 Stars
    8%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (13)
No data
A***a
Belgium
Verified Purchase
5.0
2026-05-23
One thing we did not expect is how the sink changes the press. The mass above the board means the ram has to come down square, and a press with any tilt will seat one end and leave the other proud. We set ours up on a dummy board first, which is the cheapest hour you will spend on this part.
L***t
Egypt
Verified Purchase
4.0
2025-12-25
Four stars because there is no height given for this part, and on a sink cage the total height with the fins is what sets the lid clearance.
F***a
Argentina
Verified Purchase
5.0
2025-11-27
If your chassis has a cold plate instead of airflow, buy the sinkless version. We have both in the same product family, and the sink version is only right where there is air crossing the fins. On our 1U the front to back flow is about 1.2 m/s and that was enough with the sink and not enough without it.
K***d
South Africa
Verified Purchase
5.0
2025-09-02
Press-fit into a 2.0mm backplane with a sink on top is awkward because the mass is above the board and the ram has to clear the fins. We made a ram with a relief cut for the sink, which cost a day, and now the tails seat first pass on every unit.
G***d
Chile
Verified Purchase
5.0
2025-08-01
A sink cage at 400G is not optional in a 1U with no fan wall. Our module was hitting its throttle point at 35 ambient within twenty minutes on a plain cage, and with this one it sat at 72 and stayed there for 48 hours.
