LP11FC01460S qsfp28 1x1 cage assembly with heat sink emi spring finger

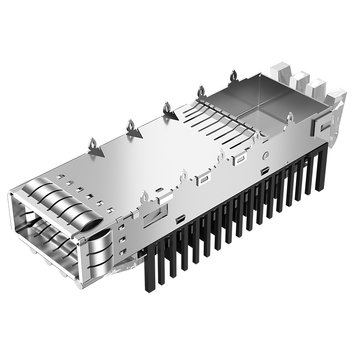

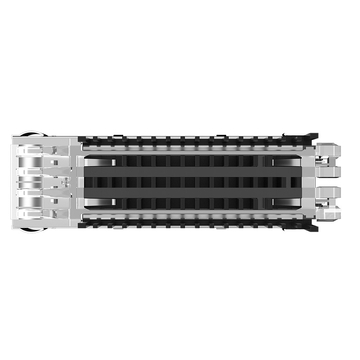

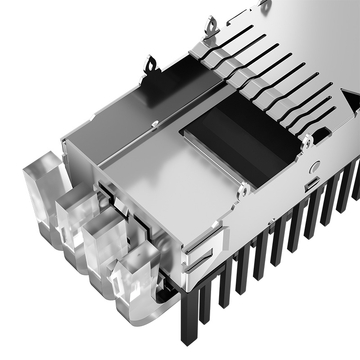

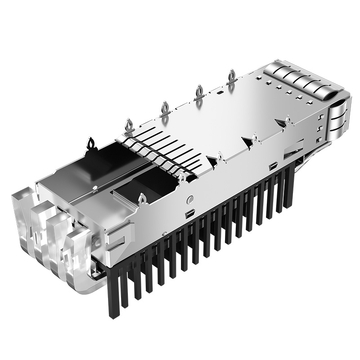

LP11FC01460S QSFP28 1x1 Cage Assembly With Heat Sink EMI Spring Finger

Product summary

Product
LP11FC01460S QSFP28 1x1 Cage Assembly With Heat Sink EMI Spring Finger
SKU
203552
P/N
LP11FC01460S
Price
$ 2.50
Stock
132 in Stock
Sold
8.8K
Unit price $ 2.50
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11FC01460SSKU: 203552

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
Molex
LINK-PP
Compatible P/N:
LP11FC01460S
Volume pricing Online tiers · larger qty or custom price on request
$ 2.500
1–99 pcs
$ 2.415
100–999 pcs
$ 2.310
1,000–4,999 pcs
$ 2.125
5,000–9,999 pcs
$ 1.952
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
132 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 2.50

LINK-PP LP11FC01460S QSFP28 1x1 Cage Assembly With Heat Sink EMI Spring Finger

LINK-PP Part Number LP11FC01460S Part Status Active
Product Type Cage Assembly Form Factor QSFP28
Max Data Rate 100 Gbps Features EMI Shielded
Port Matrix Configuration 1×1 Number of Ports 1
Included Connector No Included Heat Sink Yes
Included Lightpipe Yes EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.081/2.05 Recommended PCB Thickness (Inches/mm) 0.063/1.60 (MIN)
Length (Inches/mm) 2.648/67.25 (REF) Width (Inches/mm) 0.738/18.75 (REF)
Height (Inches/mm) 0.870/22.10 Cage Material Stainless Steel
Contact Plating None Cage Plating None
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11FC01460S.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    No. Use a press with a flat ram and a support plate. The sink makes the part top heavy, so hand pressure tilts it easily, and a tilted cage will not accept a module. A tilted press-fit part cannot be corrected without destroying the plated holes. by LINK-PP Technical Support
  • A:
    Yes, tighter spacing collects dust faster than a low profile sink. On a chassis that runs for years between cleanings, add an intake filter or you will lose most of the thermal gain within about eighteen months. That is a maintenance decision, not a part problem. by LINK-PP Technical Support
  • A:
    On our card it took the module case from 79 to 64 degrees at 40 ambient with 2m/s of airflow, roughly 3.5 degrees per watt. The gain depends on airflow crossing the fins; if the air runs along them the taller sink buys much less. by LINK-PP Technical Support
  • A:
    Mechanically yes, the footprint, tail pattern and 20.92mm width are the same, so the board does not change. What changes is height: 11.07mm against 9.65mm, so you need about 1.4mm of extra clearance to the chassis lid. Measure that before you substitute. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    22 Reviews

  • 5 Stars
    91%
    4 Stars
    9%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (22)
No data
T***y
Portugal
Verified Purchase
4.0
2026-11-16
The foam wrap came in scuffed and one sink had a mark, but the cage was straight. The sink cleared the neighbouring cage and a 100G module went in on the first try.
A***n
Chile
Verified Purchase
5.0
2026-10-17
QSFP28 with a sink, 100G, worth it.
Y***t
South Africa
Verified Purchase
5.0
2026-09-18
The sink adds 11.07 mm on top, handy to plan that gap. :-)
E***t
India
Verified Purchase
5.0
2026-07-21
We compared this with adding a chassis level fan wall. The fan wall was more effective but it added noise and a failure mode, and it cost more than the difference in cage price across the twelve ports on the card.
C***t
Argentina
Verified Purchase
5.0
2025-12-02
Second lot matched the first on tail coplanarity and on overall height within 0.1mm, which matters because the lid clearance is only 1.6mm. A sink that grows 0.3mm between lots would touch the lid and short the whole card.
