LP11FC01050 qsfp28 1x1 cage assembly with heat sink emi spring finger
Click to open expanded view

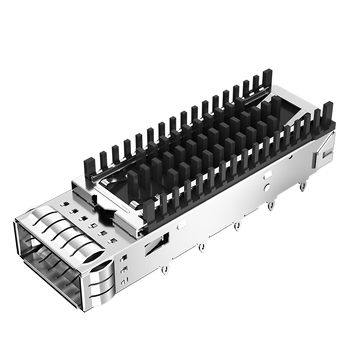

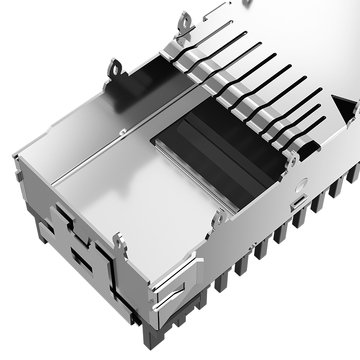

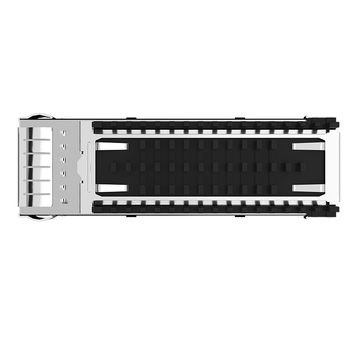

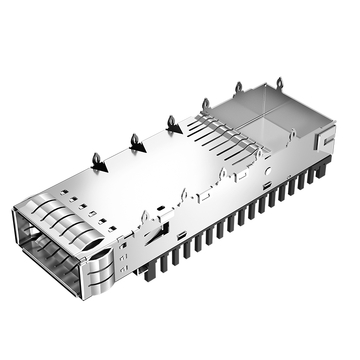

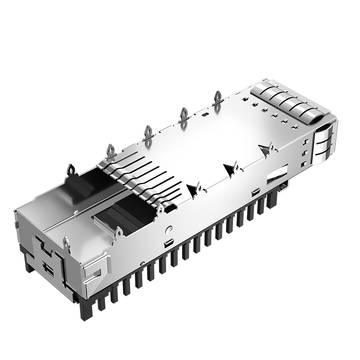

LP11FC01050 QSFP28 1x1 Cage Assembly With Heat Sink EMI Spring Finger

Product summary

Product
LP11FC01050 QSFP28 1x1 Cage Assembly With Heat Sink EMI Spring Finger
SKU
203797
P/N
LP11FC01050
Price
$ 3.23
Stock
130 in Stock
Sold
9.8K
Unit price $ 3.23
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11FC01050SKU: 203797

LINK-PP originalDatasheetAll downloads

Compatible P/N:
LP11FC01050
Volume pricing Online tiers · larger qty or custom price on request
$ 3.230
1–99 pcs
$ 3.124
100–999 pcs
$ 2.988
1,000–4,999 pcs
$ 2.749
5,000–9,999 pcs
$ 2.524
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
130 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 3.23

LINK-PP LP11FC01050 QSFP28 1x1 Cage Assembly With Heat Sink EMI Spring Finger

LINK-PP Part Number LP11FC01050 Part Status Active
Product Type Cage Assembly Form Factor QSFP28
Max Data Rate 100 Gbps Features EMI Shielded
Port Matrix Configuration 1×1 Number of Ports 1
Included Connector No Included Heat Sink Yes
Included Lightpipe Yes EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.081/2.05 Recommended PCB Thickness (Inches/mm) 0.063/1.60 (MIN)
Length (Inches/mm) 2.410/61.22 (REF) Width (Inches/mm) 0.738/18.75 (REF)
Height (Inches/mm) 0.594/15.10 Cage Material Stainless Steel
Contact Plating None Cage Plating None
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11FC01050.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Sink flatness with a straight edge, tail coplanarity, and then a functional check: press a sample, fit a module, run an hour, and look at the witness marks on the thermal paste. Marks on only two sides mean the sink is not sitting flat, and that shows up as throttling rather than as a dead port. by LINK-PP Technical Support
  • A:
    On our card, at 35 ambient with all four 100G ports loaded, the modules settled at 70 to 73 case instead of throttling. A fan wall would have bought about four degrees more, but it added noise and a service item. For a retrofit the sink was the right trade. by LINK-PP Technical Support
  • A:
    No, this is the cage with the heat sink, so the connector is separate. For a retrofit that is an advantage, because the connector already on the card stays qualified and you are only changing the mechanical part. If you want one part, ask for the cage and connector version. by LINK-PP Technical Support
  • A:
    Yes, the tail pattern and the footprint match the standard QSFP28 1x1 cage, so it drops onto a board designed for the plain version. What changes is the height, because the sink sits above the cage, so check the lid clearance before you order. We did the retrofit in a week on that basis. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    23 Reviews

  • 5 Stars
    91%
    4 Stars
    9%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (23)
No data
U***n
Viet Nam
Verified Purchase
5.0
2026-11-16
Glad the springs bite on four sides, seam reads 0.3 ohm. =)
G***y
Philippines
Verified Purchase
5.0
2026-10-30
This is the part we reach for when a 100G port needs a sink and the board is already laid out. The footprint follows the same outline as our last cage, and the press stroke seats it without a tool, so we are glad a supplier swap does not need a new stiffener.
K***y
Hungary
Verified Purchase
4.0
2026-10-12
The label on the box read LP11FC01050 and one of the 10 sinks had a fin scuffed, but the cage worked perfectly in our switch and the module ran at 55℃.
K***y
France
Verified Purchase
5.0
2026-09-25
Handy cage for a 100G single port.
D***t
Colombia
Verified Purchase
5.0
2026-09-25
We keep two spare and the retrofit is a drop-in if the lid has the room.
