LP11FC01030 qsfp28 1x1 cage assembly with heat sink emi spring finger press-fit right angle

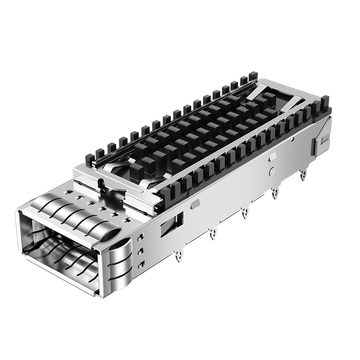

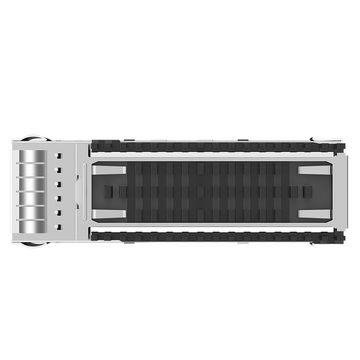

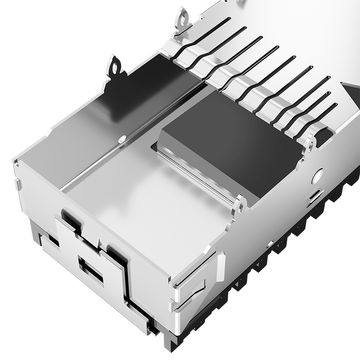

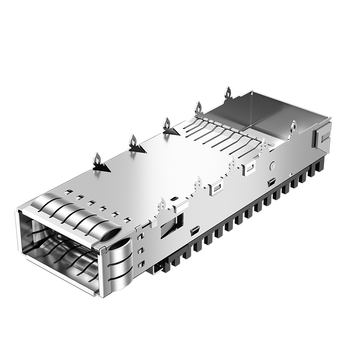

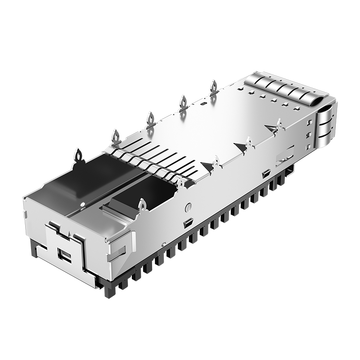

LINK-PP LP11FC01030 QSFP28 1x1 Cage Assembly With Heat Sink EMI Spring Finger Press-Fit Right Angle

Product summary

Product
LINK-PP LP11FC01030 QSFP28 1x1 Cage Assembly With Heat Sink EMI Spring Finger Press-Fit Right Angle
SKU
200657
P/N
LP11FC01030
Price
$ 3.23
Stock
490 in Stock
Sold
2.5K
Unit price $ 3.23
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11FC01030SKU: 200657

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
Molex
LINK-PP
Compatible P/N:
LP11FC01030
Volume pricing Online tiers · larger qty or custom price on request
$ 3.230
1–99 pcs
$ 3.124
100–999 pcs
$ 2.988
1,000–4,999 pcs
$ 2.749
5,000–9,999 pcs
$ 2.524
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
490 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 3.23

LINK-PP LP11FC01030 QSFP28 1x1 Cage Assembly With Heat Sink EMI Spring Finger Press-Fit Right Angle Specification

LINK-PP Part Number LP11FC01030 Part Status Active
Product Type Cage Assembly Form Factor QSFP28
Max Data Rate 100 Gbps Features EMI Shielded
Port Matrix Configuration 1×1 Number of Ports 1
Included Connector No Included Heat Sink Yes
Included Lightpipe No EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.081/2.05 Recommended PCB Thickness (Inches/mm) 0.057/1.44 (MIN)
Length (Inches/mm) 2.408/61.17 (REF) Width (Inches/mm) 0.768/19.50 (REF)
Height (Inches/mm) 0.536/13.61 Cage Material Stainless Steel
Contact Plating None Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11FC01030.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    We rate them at 500 insertions with the contact force staying above 8N, and in our test it only dropped from 16N to 12N at 500 cycles. That is the number to design to. Beyond 500 the force drops faster because the finger takes a permanent set. If your application involves frequent module swaps, like a lab or a test bench, plan to replace the cage rather than the module, it is the cheaper part. by LINK-PP Technical Support
  • A:
    This part is 3.2kN to 3.8kN with 2.05mm tails, designed for a 1.6mm to 2.0mm board. On a 2.4mm backplane you need the long tail version, the standard eye will not protrude far enough and you get a partial contact that passes continuity but fails after thermal cycling. Tell us your board thickness at order time and we will confirm the right tail length, it is not something to guess. by LINK-PP Technical Support
  • A:
    Press-fit cages can be pulled with a proper extraction tool, but the tails deform and I would not reuse the cage, the second press will not hold the same retention. The board is usually fine if you use a tool that pulls straight and support the vias from below. We budget one new cage per rework. Do not try to pry it out with a screwdriver, that is how you rip out a via barrel and scrap the board. by LINK-PP Technical Support
  • A:
    Direct contact is the design intent and it is enough if the module can is flat, which it is on standard QSFP28 parts. A pad adds about 1℃ of resistance but helps if your modules have a slightly convex can. We do not supply a pad, and adding one changes the insertion depth, so check the cage stop before you do. The measured 71℃ number is without any pad. by LINK-PP Technical Support
  • A:
    At 45℃ ambient you need about 200 LFM to hold a 4W module at 71℃ case temperature, and 400 LFM gets you to 66℃. Below 100 LFM the sink saturates and you will see 78℃ to 82℃, which is where modules start throttling. Our test used a single 40mm fan at the cabinet inlet. If your airflow is lower, derate to 3.5W modules or add a second fan before you commit the design. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    31 Reviews

  • 5 Stars
    94%
    4 Stars
    6%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (31)
No data
C***g
Portugal
Verified Purchase
5.0
2026-11-16
Handy LP11FC01030 came with its heat sink fitted :D
H***r
India
Verified Purchase
5.0
2026-11-05
We ordered the caged version with the sink because the 100G port runs warm in a 1U box, and this part drops the die temperature enough that the optics stay in their window. The cage is nickel silver, and it has stayed clean where the plated steel we used before tarnished.
M***n
Switzerland
Verified Purchase
4.0
2026-10-25
One cage arrived with a bent EMI spring, but the rest pressed in square and the port held 100G clean through the soak.
H***n
Denmark
Verified Purchase
5.0
2026-10-14
Solid right angle fit.
R***i
Argentina
Verified Purchase
4.0
2026-10-14
Cages press in fine and the modules link at 100G, but one of the twenty arrived with a bent EMI finger and a scuffed heat sink. Bent the finger back, it works, but the inner box had no foam.
