LP11FC01020S qsfp28 1x1 cage assembly with heat sink emi spring finger

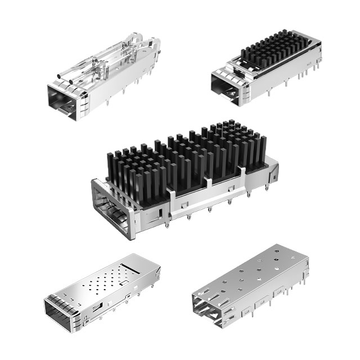

LP11FC01020S QSFP28 1x1 Cage Assembly With Heat Sink EMI Spring Finger

Product summary

Product
LP11FC01020S QSFP28 1x1 Cage Assembly With Heat Sink EMI Spring Finger
SKU
202486
P/N
LP11FC01020S
Price
$ 2.48
Stock
900 in Stock
Sold
2.1K
Unit price $ 2.48
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11FC01020SSKU: 202486

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
TE
LINK-PP
Compatible P/N:
LP11FC01020S
Volume pricing Online tiers · larger qty or custom price on request
$ 2.480
1–99 pcs
$ 2.392
100–999 pcs
$ 2.288
1,000–4,999 pcs
$ 2.105
5,000–9,999 pcs
$ 1.933
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
900 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 2.48

LINK-PP LP11FC01020S QSFP28 1x1 Cage Assembly With Heat Sink EMI Spring Finger

LINK-PP Part Number LP11FC01020S Part Status Active
Product Type Cage Assembly Form Factor QSFP28
Max Data Rate 100 Gbps Features EMI Shielded
Port Matrix Configuration 1×1 Number of Ports 1
Included Connector No Included Heat Sink Yes
Included Lightpipe No EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.081/2.05 Recommended PCB Thickness (Inches/mm) 0.057/1.44 (MIN)
Length (Inches/mm) 2.398/60.92 Width (Inches/mm) 0.768/19.50 (REF)
Height (Inches/mm) 0.504/12.80 Cage Material Stainless Steel
Contact Plating None Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11FC01020S.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    About 1.4kN with a flat tool that covers the full 60.92mm length and both side walls. Press at 0.4 to 0.5mm per second and stop on force. Support the board under the cage, a 1.6mm board will flex at this length. Check that the heat sink is not used as a pressing surface, always press on the cage body flange. by LINK-PP Technical Support
  • A:
    Only partly. The fins run along the insertion axis, so they need front to back flow. With side flow you will see maybe 3 to 4℃ instead of the 9℃ we measured. Options are a small duct to turn the air, or a flat cage with a sink bonded to the module. For a 100G port I would not skip the sink, 3.5W in a sealed box adds up fast. by LINK-PP Technical Support
  • A:
    At 100G the difference is smaller than people expect, we measured under 1dB in our setup. Copper alloy has about three times the conductivity and is stiffer, so it helps if your chassis is marginal on radiated emissions or if the cage takes mechanical abuse. Stainless is cheaper and plenty for a well grounded chassis. Decide based on your EMC margin, not on the datasheet alone. by LINK-PP Technical Support
  • A:
    The sink base sits above the module top with about 0.9mm of gap at full insertion, so the module seats without contact. If you add a thermal pad, use 1.0mm soft pad at 3W/mK, which compresses to about 0.8mm and gives good contact without lifting the module. Do not use a 2mm pad, it will push the module down and the latch may not engage fully. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    29 Reviews

  • 5 Stars
    93%
    4 Stars
    7%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (29)
No data
N***n
Indonesia
Verified Purchase
5.0
2026-11-16
28G module in and it latched on the first push, no trouble.
C***y
France
Verified Purchase
4.0
2026-10-27
One cage had a bent fin on the sink, but the opening was clean and a module seated with the latch flush. 12.80 mm high by 19.50 mm wide fitted the old cutout.
T***e
Israel
Verified Purchase
5.0
2026-10-07
QSFP28 cage with a sink, worth it.
K***n
Colombia
Verified Purchase
5.0
2026-09-17
On a card with no airflow the sink kept the shell cool to the touch. The tails pressed in on one stroke and the modules ran with no trouble. :D
S***m
United States
Verified Purchase
5.0
2026-09-17
One note, the sink gets hot enough to be uncomfortable after a minute of touching at 45℃ ambient. Put a warning label on the bezel if field staff might swap modules with the box running. Not a defect, just physics.
