molex 1000143548 compatible link-pp lp11fc01460s qsfp28 1x1 cage with heat sink emi spring finger

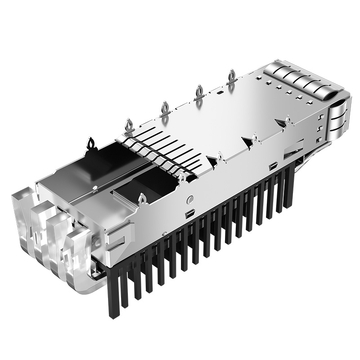

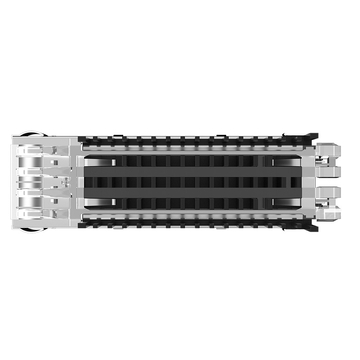

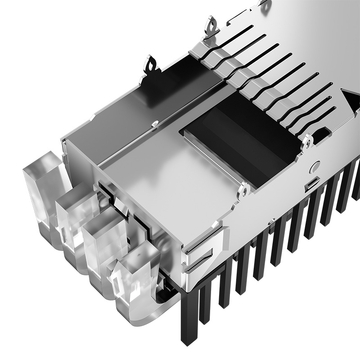

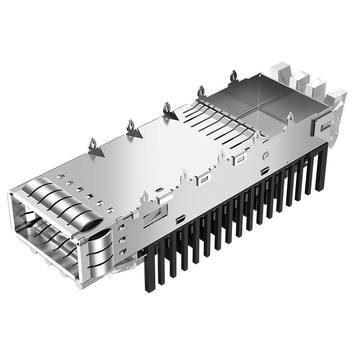

Molex 1000143548 Compatible LINK-PP LP11FC01460S QSFP28 1x1 Cage With Heat Sink EMI Spring Finger

Product summary

Product
Molex 1000143548 Compatible LINK-PP LP11FC01460S QSFP28 1x1 Cage With Heat Sink EMI Spring Finger
SKU
203554
P/N
LP11FC01460S
Price
$ 2.50
Stock
132 in Stock
Sold
8.8K
Unit price $ 2.50
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11FC01460SSKU: 203554

Compatible with Molex 1000143548Datasheet3D ModelAll downloads

Compatible:
Molex
LINK-PP
Compatible P/N:
1000143548
Volume pricing Online tiers · larger qty or custom price on request
$ 2.500
1–99 pcs
$ 2.415
100–999 pcs
$ 2.310
1,000–4,999 pcs
$ 2.125
5,000–9,999 pcs
$ 1.952
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
132 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 2.50

Molex 1000143548 Compatible LINK-PP LP11FC01460S QSFP28 1x1 Cage With EMI Spring Finger Heat Sink

LINK-PP Part Number LP11FC01460S Molex Part Number
1000143548
Product Type Cage with Heat Sink Form Factor QSFP28
Port Matrix Configuration 1x1 Ports Mounting Type Through Hole, Right Angle
Termination Press-Fit Features EMI Shielded
Data Rate (Max)(Gb/s) 100 EMI Containment Feature Type Internal/External EMI Springs
Included Lightpipe No Operating Temperature Range -
Height (Inches/mm) 0.436/11.07 Length (Inches/mm) 2.648/67.25
Width (Inches/mm) 0.824/20.92

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11FC01460S.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    No. Use a press with a flat ram and a support plate. The sink makes the part top heavy, so hand pressure tilts it easily, and a tilted cage will not accept a module. A tilted press-fit part cannot be corrected without destroying the plated holes. by LINK-PP Technical Support
  • A:
    Yes, tighter spacing collects dust faster than a low profile sink. On a chassis that runs for years between cleanings, add an intake filter or you will lose most of the thermal gain within about eighteen months. That is a maintenance decision, not a part problem. by LINK-PP Technical Support
  • A:
    On our card it took the module case from 79 to 64 degrees at 40 ambient with 2m/s of airflow, roughly 3.5 degrees per watt. The gain depends on airflow crossing the fins; if the air runs along them the taller sink buys much less. by LINK-PP Technical Support
  • A:
    Mechanically yes, the footprint, tail pattern and 20.92mm width are the same, so the board does not change. What changes is height: 11.07mm against 9.65mm, so you need about 1.4mm of extra clearance to the chassis lid. Measure that before you substitute. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    10 Reviews

  • 5 Stars
    90%
    4 Stars
    10%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (10)
No data
M***t
Belgium
Verified Purchase
4.0
2025-08-22
Four stars because the page does not give the thermal resistance or the fin height, only the overall height. For a part sold on cooling that is the number a thermal engineer needs, and we had to measure it at about 3.5 degrees per watt with 2m/s of airflow.
F***n
New Zealand
Verified Purchase
5.0
2025-04-18
The interesting thing about this part is that it is a drop-in replacement for the shorter QSFP28 cage in the same family, with the same tail pattern and the same 20.92mm width. That means you can fix a thermal problem on an existing board by changing one part number, provided the chassis has 1.4mm of headroom. On our card it did, and the module case went from 79 to 64 degrees at 40 ambient, which took the port out of throttling entirely.
R***k
Norway
Verified Purchase
5.0
2025-03-28
Second order for the same card. Same thermal result.
A***g
Spain
Verified Purchase
5.0
2025-03-25
Fin spacing is tight enough that dust is a real concern. We added a filter to the intake.
C***s
Thailand
Verified Purchase
5.0
2025-03-07
Press-fit into 2.0mm backplane, all tails seated first pass across 18 units.
