molex 1000143345 compatible link-pp lp11fc01060 qsfp28 1x1 cage with heat sink emi spring finger
Click to open expanded view

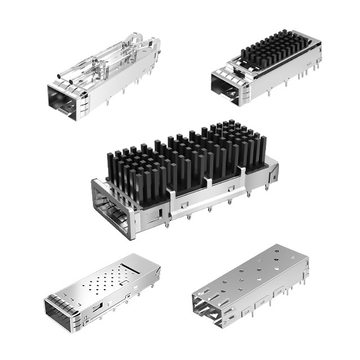

Molex 1000143345 Compatible LINK-PP LP11FC01060 QSFP28 1x1 Cage With Heat Sink EMI Spring Finger

Product summary

Product
Molex 1000143345 Compatible LINK-PP LP11FC01060 QSFP28 1x1 Cage With Heat Sink EMI Spring Finger
SKU
203524
P/N
LP11FC01060
Price
$ 2.31
Stock
90 in Stock
Sold
810
Unit price $ 2.31
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11FC01060SKU: 203524

Compatible with Molex 1000143345DatasheetAll downloads

Compatible:
Molex
LINK-PP
Compatible P/N:
1000143345
Volume pricing Online tiers · larger qty or custom price on request
$ 2.310
1–99 pcs
$ 2.235
100–999 pcs
$ 2.137
1,000–4,999 pcs
$ 1.966
5,000–9,999 pcs
$ 1.806
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
90 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 2.31

Molex 1000143345 Compatible LINK-PP LP11FC01060 QSFP28 1x1 Cage With EMI Spring Finger Heat Sink

LINK-PP Part Number
LP11FC01060 Molex Part Number
1000143345
Product Type Cage with Heat Sink Form Factor QSFP28
Termination Press-Fit Features EMI Shielded
Port Matrix Configuration 1x1 Ports Mounting Type Through Hole, Right Angle
Number of Rear EONs per Port Column 1 Data Rate (Max)(Gb/s) 100
Circuit Application Signal EMI Containment Feature Type EMI Springs
Included Lightpipe NO Operating Temperature Range -40 – 85°C
Height (Inches/mm) 0.380/9.65 Length (Inches/mm) 2.410/61.22
Width (Inches/mm) 0.738/18.75

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11FC01060.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    No. Use a press with a flat ram and a support plate. A single QSFP28 cage is rigid but it has a large tail count, and hand pressure tilts it, which means the module will not seat. A tilted cage cannot be corrected without pulling it, and pulling it damages the plated holes. by LINK-PP Technical Support
  • A:
    The cage body is 9.65mm high and the sink adds above that. On our 1U build we had 2mm of clearance to the lid, which was enough, but on a denser chassis the sink can be the part that sets the lid height. Measure a sample before you finalise the enclosure. by LINK-PP Technical Support
  • A:
    It contacts the module body through the cage top, which is what makes it effective. A sink that only cools the cage does very little because the thermal path from the module to the cage is poor. Check on a sample that the sink touches the module, because a sink sitting 0.3mm high looks correct and cools nothing. by LINK-PP Technical Support
  • A:
    On our card it moved the module case from 78 to 66 degrees at 40 ambient with 2m/s of airflow across the fins, roughly 4 degrees per watt of thermal resistance. The gain depends heavily on airflow direction: if the air runs along the fins instead of across them, most of the benefit disappears. by LINK-PP Technical Support

Customer Reviews

  • 5

    11 Reviews

  • 5 Stars
    100%
    4 Stars
    0%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (11)
No data
R***y
Canada
Verified Purchase
5.0
2026-09-21
We compared this with a plain cage plus a chassis level heat sink over the whole card. The chassis sink was more effective but it needed a thermal pad per port and made module replacement a two person job. The cage sink costs more per port and is easier to live with.
M***n
Netherlands
Verified Purchase
5.0
2026-07-10
Second lot measured the same as the first on tail coplanarity and on the sink contact. We check that the sink actually touches the module body on a sample, because a sink that sits 0.3mm high looks fine and cools nothing.
M***e
Republic of Korea
Verified Purchase
5.0
2026-03-06
Airflow direction matters as much as the sink. Our first build had the fans pulling air along the card rather than across it, and the sink did very little because the fins were parallel to the flow. Rotating the duct so air crosses the fins dropped the case another 6 degrees, which cost nothing and was worth more than a bigger sink.
H***t
Egypt
Verified Purchase
5.0
2026-02-04
The thermal number is the whole story with this part. A 100G QSFP28 module dissipates around 4 to 5 watts, and in a 1U chassis with 12mm port pitch there is not enough surface on the module to get rid of it. The cage sink adds fin area directly over the module body through the cage top, and on our card that moved the case from 78 to 66 degrees at 40 ambient. That is the difference between a port that throttles in summer and one that does not.
E***k
Argentina
Verified Purchase
5.0
2026-01-31
-40 to 85 rating covers our cabinet at 55 ambient. =)
