How does the GP-SFP-10GBX-U-100 module achieve 100km transmission over just one fiber strand?

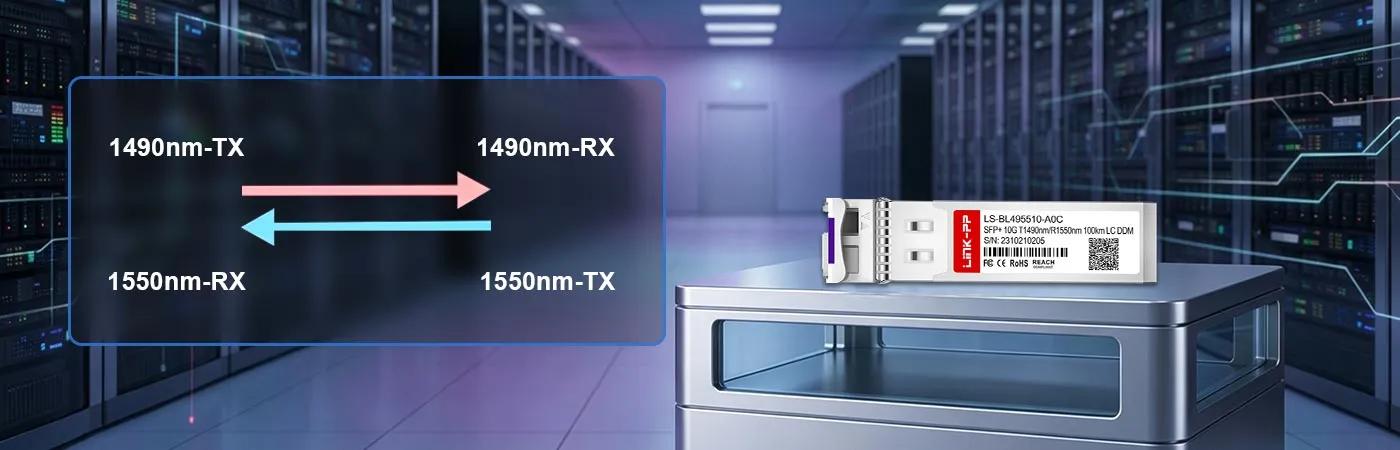

It uses bidirectional technology, splitting the upstream and downstream data onto two separate optical wavelengths (1490nm and 1550nm) to transmit and receive simultaneously over a single optical path.

Can this module operate over multi-mode fiber (MMF)?

No, this transceiver is strictly designed for single-mode fiber (SMF) to achieve its designated 100km long-range transmission.

Does the GP-SFP-10GBX-U-100 BiDi SFP experience more latency than a standard dual-fiber module?

No, the data travels at the same speed of light through the glass. The asymmetric wavelengths (1490nm/1550nm) travel down the single strand simultaneously without colliding or adding any delay.

What happens to the 100km reach if my fiber run has multiple patches and splices?

Every splice and connector adds signal loss. While the GP-SFP-10GBX-U-100 SFP module is rated for 100km on perfect fiber, your actual maximum distance will decrease depending on the total optical loss (power budget) of your specific path.

Can I use regular dual-fiber patch cables with this 10G SFP optical transceiver?

No, the LS-BL495510-A0C is a BiDi module designed exclusively to run over a single strand of fiber using a simplex LC patch cord.

Can our engineering team get a sample pair to test our fiber link before making a big purchase?

We'd be happy to help with that! Please feel free to reach out to our customer team directly, and we will gladly arrange evaluation units for your project testing.

Will the link become unstable or drop packets if the server room temperature hits 40°C?

Not at all, 40°C ambient room temperature is well within the module's 0-70°C safe operational limits, so the link will remain rock solid.

Will this BiDi transceiver read real-time telemetry metrics natively on standard network operating systems?

Absolutely, all key data parameters like TX/RX power levels register instantly under the interface diagnostics tab on compliant host systems.

Does this 10G SFP optical transceiver require a matching 1550nm-TX/1490nm-RX counterpart on the other end?

Yes, it must pair with its complementary wavelength counterpart to establish a functional bi-directional optical link.

Home

Optics Transceivers | SFP Modules

10/25/40G/100G Transceiver Modules

10G SFP+

215344

Dell GP-SFP-10GBX-U-100 Compatible LINK-PP 10G SFP+ BiDi 1490nm-TX/1550nm-RX 100km Simplex LC/UPC DOM SMF Optical Transceiver Module

Name: GP-SFP-10GBX-U-100
Brand: LINK-PP
SKU: 215344
Price: 433.87 USD
Availability: InStock
Rating: 4.9 (32 reviews)

# 215344

For Order Over $1000 Get $15.00 Off , Code:

Linkpp15

For Order Over $3000 Get $50.00 Off , Code:

Linkpp50

For Order Over $5000 Get $100.00 Off , Code:

Linkpp100

New Users: $10 Coupon for Orders , Code:

linkpp2610

: Dell GP-SFP-10GBX-U-100 Compatible LINK-PP 10G SFP+ BiDi 1490nm-TX/1550nm-RX 100km Simplex LC/UPC DOM SMF Optical Transceiver Module

32 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

32 Reviews

5 Questions

Request Stock

904 Sold

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 504.5

100

$ 479.275

1000

$ 464.14

3000

$ 449.005

6000

$ 433.87

Manufacture: LINK-PP

P/N: LS-BL495510-A0C

Compatible:: Cisco; LINK-PP; Arista; Brocade; D-Link; Dell; Extreme; FS; Fortinet; Generic; Juniper

Compatible P/N:: GP-SFP-10GBX-D-10 | 10km; GP-SFP-10GBX-D-10-I | 10km; GP-SFP-10GBX-U-10 | 10km; GP-SFP-10GBX-U-10-I | 10km; GP-SFP-10GBX-D-20 | 20km; GP-SFP-10GBX-D-20-I | 20km; GP-SFP-10GBX-U-20 | 20km; GP-SFP-10GBX-U-20-I | 20km; GP-SFP-10GBX-D-40 | 40km; GP-SFP-10GBX-D-40-I | 40km; GP-SFP-10GBX-U-40 | 40km; GP-SFP-10GBX-U-40-I | 40km; GP-SFP-10GBX-D-60 | 60km; GP-SFP-10GBX-D-60-I | 60km; GP-SFP-10GBX-U-60 | 60km; GP-SFP-10GBX-U-60-I | 60km; GP-SFP-10GBX-D-80 | 80km; GP-SFP-10GBX-D-80-I | 80km; GP-SFP-10GBX-U-80 | 80km; GP-SFP-10GBX-U-80-I | 80km; GP-SFP-10GBX-D-100 | 100km; GP-SFP-10GBX-U-100 | 100km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

Dell GP-SFP-10GBX-U-100 Compatible LINK-PP 10G SFP+ Specifications

Dell GP-SFP-10GBX-U-100 Compatible LINK-PP module is a 10G SFP+ BiDi optical transceiver module that utilizes single-strand single-mode fiber via a simplex LC/UPC connector to deliver long-range 100km connectivity, leveraging integrated DOM capabilities and an asymmetric 1490nm-TX/1550nm-RX wavelength split to maximize spectral efficiency by transmitting and receiving data simultaneously over a single optical path.

Dell Part Number	GP-SFP-10GBX-U-100	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1490nm-TX/1550nm-RX	Max Cable Distance	100km
Connector	Simplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	APD
TX Power	-1 to +5dBm	RX Power	-23 to -6dBm
Receiver Sensitivity	-25dBm	DOM Support	Yes
Operating Temperature Range	0 to 70°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-BL495510-A0C.pdf

Questions & Answers
Ask a Question

No data

Q: Can I use regular dual-fiber patch cables with this 10G SFP optical transceiver? By L***h on 2026-04-22

A: No, the LS-BL495510-A0C is a BiDi module designed exclusively to run over a single strand of fiber using a simplex LC patch cord. By admin on 2026-04-23
Q: Can our engineering team get a sample pair to test our fiber link before making a big purchase? By Z***e on 2026-02-27

A: We'd be happy to help with that! Please feel free to reach out to our customer team directly, and we will gladly arrange evaluation units for your project testing. By admin on 2026-02-28
Q: Will the link become unstable or drop packets if the server room temperature hits 40°C? By E***n on 2025-11-26

A: Not at all, 40°C ambient room temperature is well within the module's 0-70°C safe operational limits, so the link will remain rock solid. By admin on 2025-11-27
Q: Will this BiDi transceiver read real-time telemetry metrics natively on standard network operating systems? By S***s on 2025-07-20

A: Absolutely, all key data parameters like TX/RX power levels register instantly under the interface diagnostics tab on compliant host systems. By admin on 2025-07-21
Q: Does this 10G SFP optical transceiver require a matching 1550nm-TX/1490nm-RX counterpart on the other end? By M***n on 2025-03-04

A: Yes, it must pair with its complementary wavelength counterpart to establish a functional bi-directional optical link. By admin on 2025-03-05

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

G***y

Ukraine

Verified Purchase

5 .0

2026-05-04

High-quality 100km SFP optical modules. We use them to connect our primary datacenter to a remote backup facility. Real-time digital diagnostic monitoring is highly precise.

74 Helpful vote Comments

O***y

Israel

Verified Purchase

5 .0

2026-04-18

When calculating our link budget for a 92km dark fiber span, we were close to the physical limits of standard 10G optics. We decided to test the LINK-PP 100km BiDi SFP+ transceiver. The module's high-sensitivity APD receiver managed to maintain a highly stable connection despite the high cumulative link attenuation. We observed no signal degradation or frame alignment issues. The single-mode simplex LC setup is clean, and the physical latching mechanism is robust, preventing any accidental micro-disconnections in high-vibration rack environments.

85 Helpful vote Comments

X***r

Austria

Verified Purchase

5 .0

2026-04-09

Plugged into our devices and linked up immediately, 100km reach is rock solid!

26 Helpful vote Comments

D***e

Norway

Verified Purchase

5 .0

2026-03-16

Replaced some old dual-fiber optics with these LS-BL495510-A0C BiDi optical modules to free up fiber strands for a new project. Running at 10G over a 75km link seamlessly. DOM data is clear in the CLI.

59 Helpful vote Comments

J***s

South Africa

Verified Purchase

5 .0

2026-02-22

Flawless execution. We bought a bunch of these for a city-wide surveillance network backhaul. No latency issues, no link drops, just pure 10Gbps line-rate throughput.

73 Helpful vote Comments

L***n

Romania

Verified Purchase

5 .0

2026-01-31

Perfect fit for our long-haul networking needs. The 1490nm/1550nm spectral efficiency helps us double our bandwidth capacity over existing single-mode fiber cables.

78 Helpful vote Comments

A***n

Malaysia

Verified Purchase

5 .0

2026-01-18

Simplex LC connection saves so much patch panel space, 10G speeds are stable.

72 Helpful vote Comments

P***r

Canada

Verified Purchase

4 .0

2026-01-07

High spectral efficiency and stable throughput over our 90km infrastructure run. The outer bulk packaging box had some scuff marks from transit, but the transceivers inside were completely untouched and worked flawlessly. Very happy with the actual hardware.

12 Helpful vote Comments

N***h

Hungary

Verified Purchase

5 .0

2025-11-12

Our main challenge was connecting our central data center to a newly established disaster recovery site 95km away. Budget constraints prevented us from deploying active transponders, so we relied on passive single-mode fiber and these 100km SFP+ BiDi transceivers. The 1490nm-TX/1550nm-RX configuration works phenomenally well. We ran a 48-hour continuous RFC 2544 stress test at full 10Gbps line rate; the results showed zero packet loss and a Bit Error Rate perfectly matching the strict 10⁻¹² standard threshold stability requirements. The single LC connector also reduced our patch panel complexity significantly.

121 Helpful vote Comments

U***h

Macao

Verified Purchase

4 .0

2025-10-27

The single LC connector design is fantastic for saving fiber cores, but the dust cap didn't fit tightly on one of the modules in our batch. Not a big deal since we clean the optics before installation anyway, and the 10Gbps link performance is rock solid.

25 Helpful vote Comments
