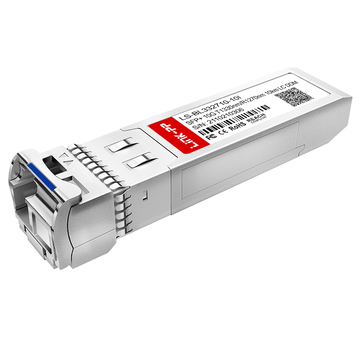

The DELL GP-SFP-10GBX-D-10-I Compatible LINK-PP module is a single-strand 10G BiDi SFP+ optical transceiver module that utilizes a single LC simplex connector to achieve bidirectional data rates up to 10Gbps, operating via 1330nm-TX and 1270nm-RX wavelengths over single-mode fiber for a maximum reach of 10km.
| DELL Part Number | GP-SFP-10GBX-D-10-I | Vendor Name | LINK-PP |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1330nm-TX/1270nm-RX | Max Cable Distance | 10km |
| Connector | Simplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -6.5 to +2dBm | RX Power | -17 to +1dBm |
| Receiver Sensitivity | -14.4dBm | Receiver Overload | 0.5dBm |
| Operating Temperature Range | -40 to 85°C | Protocols | IEEE 802.3ae, SFP+ MSA Compliant, CPRI, eCPRI |
| DDM/DOM | Supported | Warranty | 5 Years |
The DELL GP-SFP-10GBX-D-10-I Compatible LINK-PP module is a reliable 10G BiDi SFP+ module that delivers 10Gbps data rates up to 10km over a single fiber strand using 1330nm/1270nm wavelengths. It combines a simplex LC interface with built-in DOM features to provide a highly efficient and easily monitored optical solution.
This hot-pluggable optical module is built for industrial applications, offering reliable 10Gbps speeds even in harsh temperature environments. It is engineered by LINK-PP to provide steady data transmission and full compatibility with standard SFP+ ports.
Using advanced BiDi technology, this transceiver transmits and receives data simultaneously over only one fiber strand. This reduces physical cabling requirements by 50% and lowers infrastructure setup costs.
The BiDi SFP+ module operates at 1330nm for transmitting (TX) and 1270nm for receiving (RX) on a single fiber line. To create a working link, it must be connected to a matching module that uses 1270nm-TX and 1330nm-RX on the other side.
GP-SFP-10GBX-D-10-I SFP module supports a transmission reach of 10km over SMF, making it perfect for enterprise uplinks. Built to withstand wide temperature ranges, it delivers steady long-distance performance in demanding industrial infrastructures.
Equipped with a simplex LC/UPC connector, the module ensures a tight, secure physical connection with minimal signal loss. The single-port design allows for quick installation in high-density patch panels.
With Digital Optical Monitoring (DOM) support, network operators can track the module's health status in real time. It allows you to check critical metrics like operating temperature, voltage, and optical power to prevent network downtime.
The DELL GP-SFP-10GBX-D-10-I Compatible LINK-PP meets strict global standards and holds official ISO 9001, CE, RoHS, and FCC certifications to guarantee safety, quality, and environmental compliance.
Every single module undergoes rigorous factory testing, including signal integrity and temperature stress tests, to ensure zero-defect performance before shipment.
These international credentials prove that the optical transceiver is manufactured under strict quality control management and complies with all global industry regulations.
The module is fully certified and programmed to ensure seamless plug-and-play interoperability with switches, routers, and servers from major networking brands.
Every module undergoes strict testing to guarantee optimal network reliability. Learn more about these quality checks at the [Link-PP Test Support Center].
Verify precise center wavelengths for stable, error-free laser emission.
Measure optical signal shapes to guarantee clean network transmissions.
Check for zero packet loss during continuous high-speed data flow.
Validate hardware performance across demanding operating environments.
We ensure safe and efficient delivery for all LINK-PP optical transceiver orders. Our team utilizes secure packaging and reliable global carriers to guarantee top product quality.
Use ESD bags to prevent static damage.
Apply reinforced outer boxes for secure transit.
Ship all orders within the promised timeframe.
Deliver products worldwide through trusted express carriers.
The DELL GP-SFP-10GBX-D-10-I Compatible LINK-PP 10G SFP+ module connects enterprise switches, routers, and industrial firewalls over a single fiber strand. It optimizes bandwidth for campus uplinks, metro networks, and high-density data centers, providing reliable, long-distance data transmission up to 10km in demanding environments.
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Professional guidance to help you select the optimal GP-SFP-10GBX-D-10-I module for your network design and application needs.
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
Find quick answers about this industrial 10G BiDi SFP+ module's single-fiber operation, wavelength pairing, and fiber cabling requirements.
![]() Current Model GP-SFP-10GBX-D-10-I |
|---|
Compatible | DELL | Dell |
Data Rate (Max) | 10.7Gbps | 10.7Gbps |
Wavelength | 1330nm-TX/1270nm-RX | 1550nm-TX/1490nm-RX |
Connector | Simplex LC | Simplex LC |
Cable Distance (Max) | 10km | 100km |
Cable Type | SMF | SMF |
TX Power | -6.5 to +2dBm | -1 to +5dBm |
Receiver Sensitivity | -14.4dBm | -25dBm |
Operating Temperature | -40 to 85°C | 0 to 70°C |
Vendor Name | LINK-PP | LINK-PP |
Form Factor | SFP+ | SFP+ |
Transmitter Type | DFB | EML |
Receiver Type | PIN | APD |
Receiver Overload | 0.5dBm | |
Protocols | IEEE 802.3ae, SFP+ MSA Compliant, CPRI, eCPRI | SFP+ MSA Compliant, CPRI, eCPRI |
DDM/DOM | Supported | Yes |
Warranty | 5 Years |
| Pictures | ID# | Description | Price | Stock | Add to Cart |
Q: Do I need single-mode or multi-mode fiber patch cords for this module, and what is the connector type? By R***m on 2026-01-29
A: This is a 10G SFP+ BiDi module designed exclusively for single-mode fiber with standard simplex LC duplex connectors. It does not support multi-mode fiber. By admin on 2026-01-30
Q: Can this transceiver handle the summer heatwaves inside unconditioned outdoor cabinets? By P***k on 2025-10-21
A: Yes, it can. This is an industrial-grade 10G SFP module fully hardened to operate flawlessly in harsh environments from -40°C all the way up to 85°C . By admin on 2025-10-22
Q: Do I need to buy two identical modules for both ends of the fiber link, or do they need to be paired differently? By T***e on 2025-09-18
A: You must use a matching pair. One side must be TX1270nm/RX1330nm, and the other side must be TX1330nm/RX1270nm for the link to work. By admin on 2025-09-19
Q: Does the DDM function track live optical power and temperature, and will it show up in our standard CLI? By S***n on 2025-06-11
A: Yes, it features full SFF-8472 compliant DDM/DOM monitoring. You can view real-time TX/RX power levels and temperatures directly via your switch's CLI or SNMP dashboard. By admin on 2025-06-12
