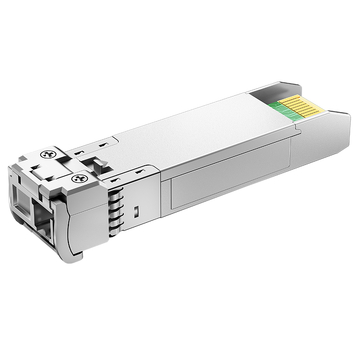

Elevate your network with the DELL GP-SFP-10GBX-U-20-I Compatible LINK-PP 10G SFP+ BIDI transceiver. Engineered for demanding industrial environments (-40°C to +85°C) , this high-performance module delivers robust 10.3Gbps data rates over single-mode fiber up to 20km. Featuring a 1270nm TX/1330nm RX single LC interface and real-time Digital Diagnostic Monitoring (DDM) , it ensures cost-effective, reliable long-reach connectivity.
| DELL Part Number | GP-SFP-10GBX-U-20-I | Vendor Name | LINK-PP |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1270nm-TX/1330nm-RX | Max Cable Distance | 20km |
| Connector | Simplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -6.5 to +2dBm | RX Power | -17 to +1dBm |
| Receiver Sensitivity | -14.4dBm | Receiver Overload | 0.5dBm |
| Operating Temperature Range | -40 to 85°C | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
| DDM/DOM | Supported | Warranty | 5 Years |
Unlock high-efficiency networking with the industrial-grade GP-SFP-10GBX-U-20-I transceiver. Operating between -40°C and +85°C, this robust module integrates a 1270nm DFB laser and PIN photodiode, delivering a hot-pluggable, RoHS-compliant solution designed for ultimate reliability in harsh 10Gbps optical systems.
Experience premier data transmission with this hot-pluggable SFP+ optical module. Compliant with standard SFP+ MSA guidelines, it runs on a single +3.3V power supply and consumes minimal power, ensuring seamless compatibility and excellent thermal efficiency for next-generation 10Gbps enterprise and telecom network platforms.
Optimized for high-capacity wireless backhaul and LTE mobile networks, this module delivers reliable 10.3Gbps transport between cell sites and core infrastructures. Its wide industrial temperature tolerance ensures resilient performance in exposed, outdoor base station environments.
Engineered with bi-directional wavelengths, this module transmits at 1270nm via a DFB laser and receives at 1330nm. This precise spectral separation guarantees zero crosstalk and reliable, interference-free data pathways.
Bridge long distances effortlessly with a 20km reach over single-mode fiber (SMF). Backed by a high-performance trans-impedance preamplifier, it maintains superb signal integrity, making it perfect for metropolitan and backhaul deployments.
Featuring a compact, simplex LC receptacle, this transceiver ensures tight, secure optical connections. The standardized design minimizes insertion loss, simplifies patching, and seamlessly fits high-density patch panels and network switches.
Take full control of your link health with real-time Digital Diagnostic Monitoring (DDM/DOM). It instantly tracks critical metrics like temperature, supply voltage, bias current, and optical power via an I2C serial interface.
The GP-SFP-10GBX-U-20-I transceiver complies with global industry standards, boasting essential certifications that guarantee safety, environmental responsibility, and reliable performance in high-speed optical network architectures.
Every module undergoes rigorous testing, including precise internal calibration checks and temperature monitoring, ensuring absolute stability and zero faults across demanding industrial environments.
This SFP+ transceiver is officially FCC, CE, and RoHS certified. It also meets strict Class I laser safety standards, fulfilling international criteria for operational security.

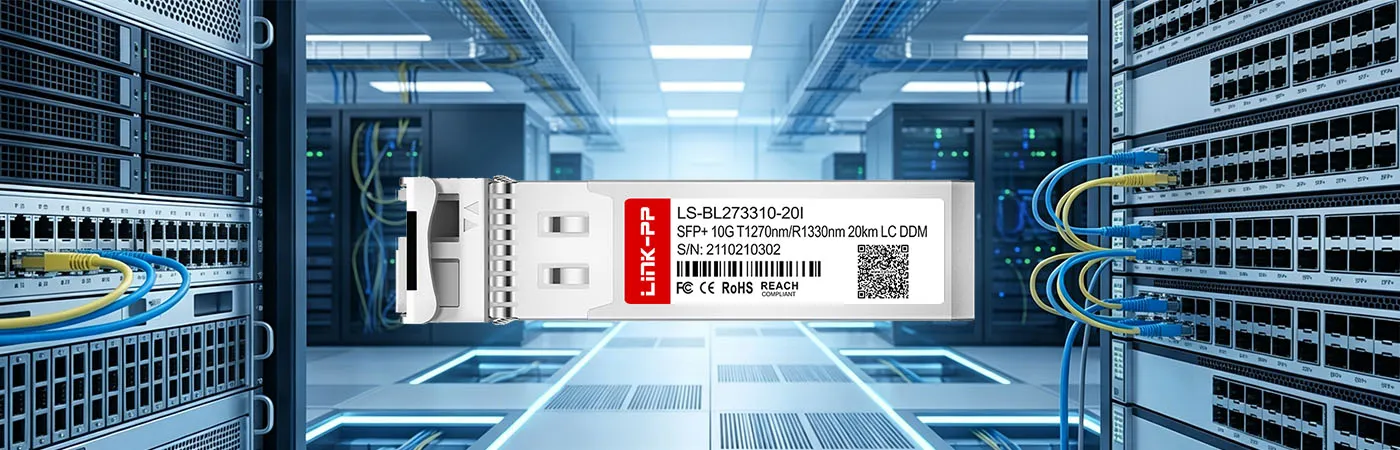

Fully compliant with SFP+ MSA and SFF-8472 specifications, this module guarantees plug-and-play host-device compatibility, offering flawless real-time diagnostic monitoring across diverse network systems.
Comprehensive verification protocols validate every optical and electrical parameter, guaranteeing that each industrial transceiver delivers robust, fail-safe field operation.
Validates the 1270nm center wavelength and 1nm maximum spectral width for zero crosstalk.
Ensures excellent signal transmitter compliance, proper extinction ratios, and clean differential data input swings.
Confirms excellent receiver sensitivity of -14.4dBm using standard PRBS 2^31-1 data test patterns.
Guarantees flawless data transmission across extreme industrial ranges spanning from -40°C to +85°C.
Our optimized fulfillment system ensures secure, efficient transport, delivering sensitive optical components quickly and safely to global industrial sites.
Shields delicate ESD-sensitive integrated circuits and laser electronics from electrostatic damage.
Cushions modules against heavy physical vibrations during multi-stage transit.
Accelerates logistics handling to guarantee rapid inventory dispatch.
Ensures dependable cross-border shipping through premium worldwide carrier networks.

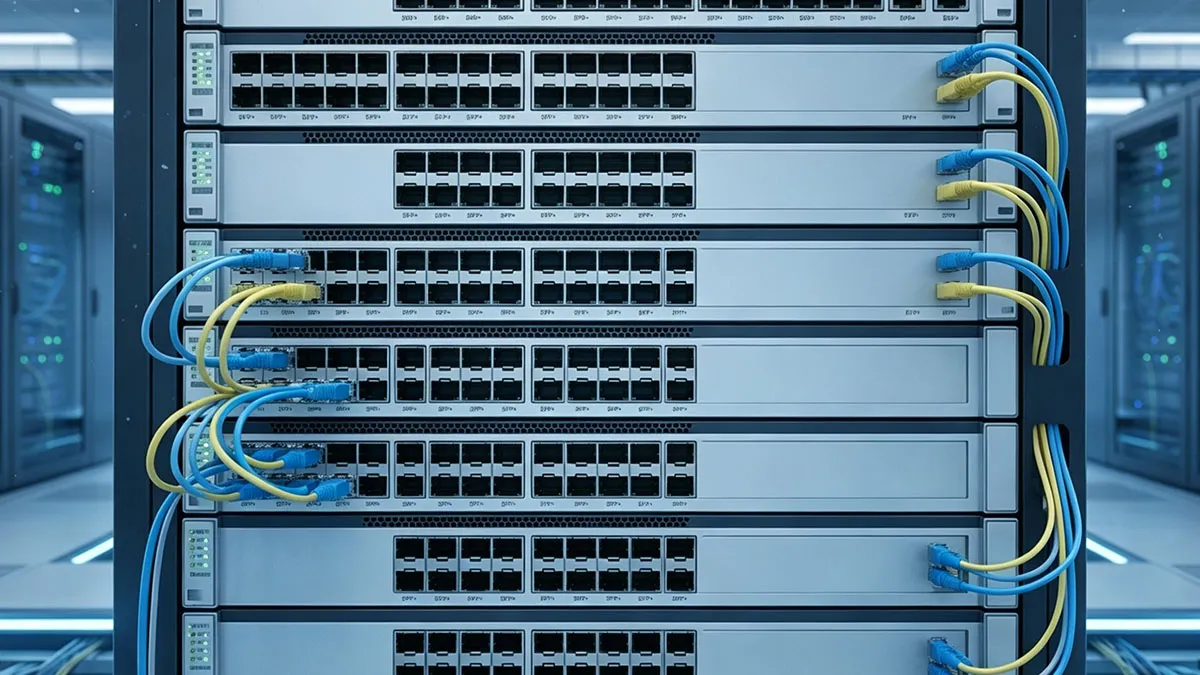

This demonstration guides you through the seamless installation, proper host interfacing, and real-time operational tracking of the GP-SFP-10GBX-U-20-I transceiver in live 10Gbps environments. Follow these steps to ensure peak single-fiber performance.
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Professional technical guidance to help customers select the most suitable GP-SFP-10GBX-U-20-I modules based on network architecture and application requirements.
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
This frequently asked questions section provides quick, direct answers of the industrial-grade GP-SFP-10GBX-U-20-I BIDI transceiver module.
![]() Current Model GP-SFP-10GBX-U-20-I |
|---|
Compatible | DELL | Dell |
Data Rate (Max) | 10.7Gbps | 10.7Gbps |
Wavelength | 1270nm-TX/1330nm-RX | 1550nm-TX/1490nm-RX |
Connector | Simplex LC | Simplex LC |
Cable Distance (Max) | 20km | 100km |
Cable Type | SMF | SMF |
TX Power | -6.5 to +2dBm | -1 to +5dBm |
Receiver Sensitivity | -14.4dBm | -25dBm |
Operating Temperature | -40 to 85°C | 0 to 70°C |
Vendor Name | LINK-PP | LINK-PP |
Form Factor | SFP+ | SFP+ |
Transmitter Type | DFB | EML |
Receiver Type | PIN | APD |
Receiver Overload | 0.5dBm | |
Protocols | SFP+ MSA Compliant, CPRI, eCPRI | SFP+ MSA Compliant, CPRI, eCPRI |
DDM/DOM | Supported | Yes |
Warranty | 5 Years |
| Pictures | ID# | Description | Price | Stock | Add to Cart |
Q: We run a mix of Cisco core switches and Fortinet firewalls in our setup. Will this transceiver play nice with both without throwing unsupported module errors? By J***z on 2026-01-05
A: Absolutely. This module is fully OEM compatible and has been heavily tested to work seamlessly across major switch brands, including Cisco, Fortinet, Arista, and Dell. You won't run into any of those pesky vendor lock-in codes. By admin on 2026-01-05
