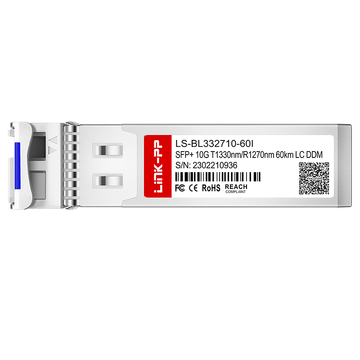

Dell GP-SFP-10GBX-D-60-I Compatible LINK-PP SFP+ BiDi maximizes fiber utilization by leveraging advanced bidirectional technology to transmit and receive data simultaneously over a single strand of single-mode fiber, delivering robust 10Gbps performance across a 60km span via a 1330nm-TX/1270nm-RX wavelength split, an industrial-grade temperature tolerance, and real-time DOM diagnostics with a simplex LC interface.
Dell Part Number
GP-SFP-10GBX-D-60-I
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1330nm-TX/1270nm-RX
Max Cable Distance
60km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-20 to -6dBm
Receiver Sensitivity
-20dBm
Receiver Overload
-6dBm
Operating Temperature Range
-40 to 85°C
Protocols
IEEE 802.3ae, SFF-8472, SFF-8431, 10GBASE-ZR/ZW
Key Features of Dell GP-SFP-10GBX-D-60-I Compatible LINK-PP 10G SFP+
Dell GP-SFP-10GBX-D-60-I Compatible LINK-PP module is an industrial-grade SFP BiDi transceiver that combines single-fiber bidirectional efficiency, 60km extended reach, and digital diagnostics to ensure dependable data transmission in harsh environments. This robust module integrates advanced optical specifications into a compact hot-pluggable form factor to optimize long-distance network infrastructure.
Built for extreme reliability, this rugged industrial-grade 10G BiDi transceiver operates seamlessly under wide temperature fluctuations. Its hardened design ensures continuous, stable network connectivity where standard commercial optics fail.
GP-SFP-10GBX-D-60-I: 10 Gbps Connectivity for Industrial Deployments
This module delivers steady 10Gbps data throughput for critical factory automation and heavy-duty industrial networks. It provides the necessary bandwidth to handle demanding data traffic without compromising link stability.
GP-SFP-10GBX-D-60-I Module with 1330nm-TX and 1270nm-RX Wavelength
By utilizing a 1330nm-TX and 1270nm-RX wavelength split, this 10GBASE-BX transceiver transmits and receives data simultaneously over a single optical strand. This BiDi capability allows network operators to double their fiber capacity instantly.
Equipped with a powerful laser, the module maintains strong signal integrity over distances up to 60km on standard single-mode fiber. It is ideal for bridging remote industrial sites and long-range telecommunication nodes.
GP-SFP-10GBX-D-60-I Module with Simplex LC/UPC Interface
The simplex LC/UPC connector provides a secure physical connection while cutting optical cabling requirements in half. This single-port design simplifies cable management and reduces deployment costs.
GP-SFP-10GBX-D-60-I Module with DOM for Real-Time Monitoring
Integrated Digital Optical Monitoring (DOM) tracks critical internal metrics like temperature, voltage, and laser power in real time. This allows network administrators to identify potential issues and perform preventive maintenance before a link failure occurs.
Dell GP-SFP-10GBX-D-60-I Compatible LINK-PP SFP BiDi transceiver is fully certified under ISO 9001, CE, RoHS, and FCC standards to guarantee exceptional safety, quality, and environmental compliance.
Every industrial SFP 60km 10G module undergoes rigorous environmental and optical traffic stress tests to ensure stable long-term performance.
GP-SFP-10GBX-D-60-I Quality Certifications
These global industry credentials verify that the transceiver meets strict international manufacturing and reliability guidelines.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
GP-SFP-10GBX-D-60-I Certified for Reliable Host-Device Compatibility
The module is comprehensively verified to ensure seamless, plug-and-play interoperability with major networking hardware brands.
Each LINK-PP optical module undergoes strict quality screening to guarantee absolute network stability and eliminate packet loss. Learn more about our validation processes at the LINK-PP Test Support Center.
Optical Spectrum Test
Measure central wavelengths to ensure precise fiber-optic signal accuracy.
Eye Pattern Test
Analyze signal transmitter quality to verify optimal wave performance.
Bit Error Rate Test
Evaluate data transmission integrity over maximum link distances.
Temperature Test
Validate module reliability under harsh, industrial-grade thermal conditions.
Product Shipping for Dell GP-SFP-10GBX-D-60-I Compatible LINK-PP 10G SFP+
We use secure packaging and reliable global carriers to protect your order. Your optical modules arrive safely and on time.
Anti-Static Protective Packaging
Prevent electrostatic discharge damage during transit using specialized bags.
Shock-Resistant Transport Protection
Shield delicate optical components from drops and vibration during transit.
Fast Order Processing and Dispatch
Prepare and ship orders quickly to reduce network downtime.
Global Logistics and International Delivery
Deliver orders worldwide efficiently through our trusted shipping partners.
The Dell GP-SFP-10GBX-D-60-I Compatible LINK-PP 10G SFP+ module is engineered for long-range telecommunications, metro Ethernet links, and factory automation networks. It deploys seamlessly in high-density switches and routers, offering hot-pluggable utility to optimize single-fiber infrastructure and provide reliable, real-time monitored data transmission in harsh environments.
GP-SFP-10GBX-D-60-I Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal GP-SFP-10GBX-D-60-I module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
Get expert insights on deployment, physical interface compatibility, and structural reliability for this 60km industrial-grade 10G SFP+ transceiver.
It supports a standard data rate of 10Gbps and is backward compatible with lower rates if supported by the host switch.
No. This module has a blue LC/UPC (Ultra Physical Contact) receptacle. Plugging a green LC/APC patch cable into it will cause high insertion loss and severe optical back-reflection, which degrades performance.
It is built with hardened components to operate reliably in harsh environments, supporting an extended temperature range from -40°C to 85°C.
The GP-SFP-10GBX-D-60-I is housed in a fully enclosed, zinc alloy ESD-shielded metal housing. It complies with strict international EMI standards (like FCC and CE), preventing data corruption from nearby heavy machinery or high-voltage lines.
A:
No, BiDi transceivers must be deployed in pairs. You must pair this 1330nm-TX/1270nm-RX module with its matching counterpart (1270nm-TX/1330nm-RX) at the remote site. By
admin
A:
It features a reinforced zinc alloy housing and a heavy-duty bail latch mechanism specifically designed to withstand structural vibrations and mechanical shock. By
admin
A:
Not at all, as this is an industrial-grade BiDi optical transceiver rated up to 85°C that utilizes temperature-stabilized lasers to prevent spectral drifting under extreme heat. By
admin
A:
An isolated drop in RX power while TX power remains steady almost always points to fiber micro-bends, cable degradation, or dust contamination at the patch panel. By
