tyco 1-6610005-5 compatible lpjg28831a115nl 1x2 port rj45 magnetic jacks 1000 base-t tab up green yellow&green leds
Click to open expanded view

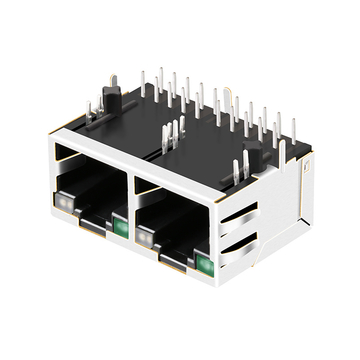

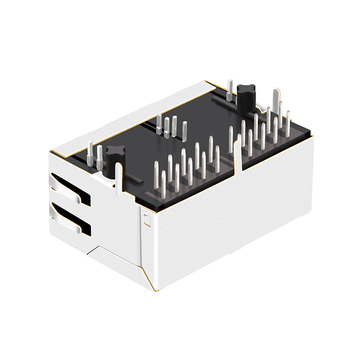

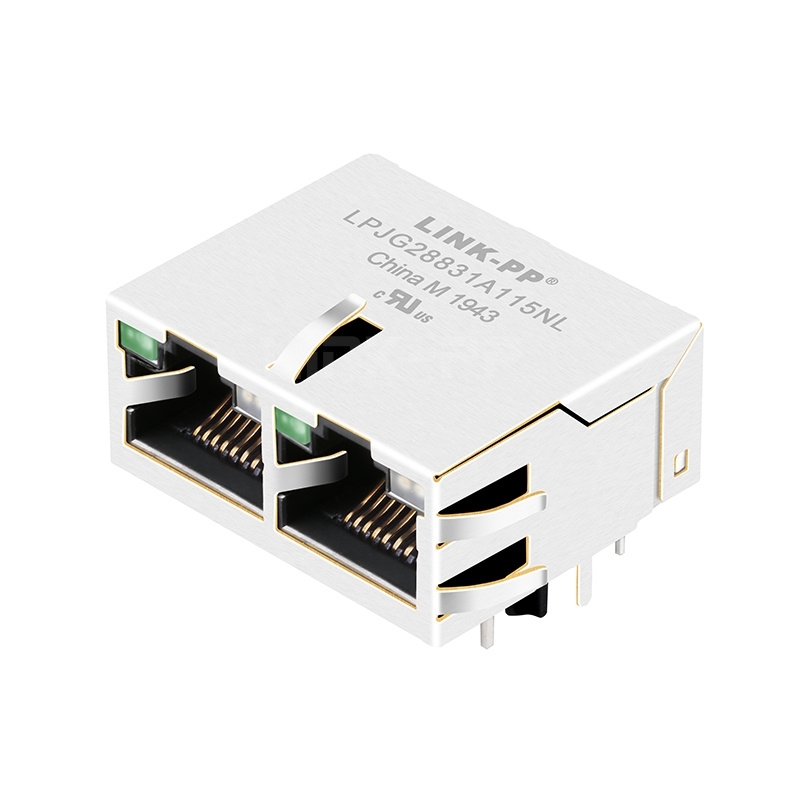

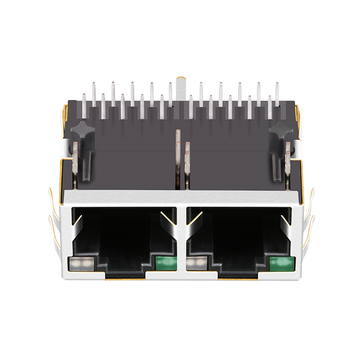

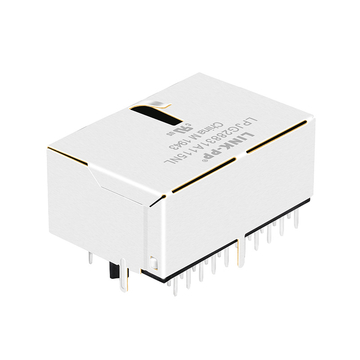

Tyco 1-6610005-5 Compatible LPJG28831A115NL 1x2 Port RJ45 magnetic Jacks 1000 Base-T Tab Up Green/Yellow&Green Leds

Product summary

Product
Tyco 1-6610005-5 Compatible LPJG28831A115NL 1x2 Port RJ45 magnetic Jacks 1000 Base-T Tab Up Green/Yellow&Green Leds
SKU
177553
P/N
LPJG28831A115NL
Price
$ 6.98
Stock
2800 in Stock
Sold
17.2K
Unit price $ 6.98
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG28831A115NLSKU: 177553

Compatible with Tyco 1-6610005-5DatasheetAll downloads

Compatible:
Tyco
LINK-PP
Compatible P/N:
1-6610005-5
Volume pricing Online tiers · larger qty or custom price on request
$ 6.980
1–99 pcs
$ 5.722
100–599 pcs
$ 5.024
600–1,199 pcs
$ 3.838
1,200–5,999 pcs
$ 3.280
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2800 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 30
Total Price:
$ 6.98
Packaging Details
30 pcs
600 pcs
Tray
37×30×30 cm
0.17 kg
10 kg

Tyco 1-6610005-5 Compatible LINK-PP LPJG28831A115NL 100/1000 Base-T RJ45 1x2 Port magnetic Jacks for Network Firewall and SMPS (Tab Up,Green/Yellow&Green Led)


The LPJG28831A115NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Intercom, Network Firewall, Industrial PC and Embedded Main Board.


LINK-PP Part Number
LPJG28831A115NL Tyco Part Number
1-6610005-5
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x2 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow&Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.535/13.60Package Length (Inches/mm)

1.00/25.40

Package Width (Inches/mm)
1.238/31.45
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG28831A115NL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Two contacts sit outside the eight signal positions. On our board they carry a status line to the plant controller. A plain 8p8c part would have needed a separate header. That kept the comms face to one connector. by LINK-PP Technical Support
  • A:
    It can, if the mask stays clear around the posts. We fitted ours before the second reflow on a 32 mm window. Late hand fitting also worked on two repair units. The body is 13.60 mm tall, so access from above is easy. by LINK-PP Technical Support
  • A:
    The comms face sits about 200 mm from the bridge. Our shielded shell with bonded tabs held 1000 Base-T through a full power sweep. We saw no retrain at 50 kW output. A closer layout would be worth your own scan. by LINK-PP Technical Support
  • A:
    The first mouth has green with yellow and the second is green only. Our techs read the plant LAN from the service port at a glance. Both sit behind the same door, which is why we wanted a difference. It has saved a few wrong cables. by LINK-PP Technical Support
  • A:
    The control board has a 32 mm opening for the comms face. One body covers the plant LAN and the service port. Shielding the pair together saved a second bonding ring. Our cabinet passed its scan on the first run. by LINK-PP Technical Support

Customer Reviews

  • 5

    28 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (28)
No data
C***a
Verified Purchase
5.0
2026-11-15
One window is green alone, so it reads link without a traffic blink. That suits our spare port, where nothing is plugged. Both mouths took a plug on the first try. :-)
T***s
Verified Purchase
4.0
2026-02-20
The box came creased on one corner, but both mouths were straight. The pair trained at gigabit and the second window read link only, as drawn. It arrived within spec against the sample.
R***e
Verified Purchase
5.0
2025-12-02
31.45 mm across, two mouths side by side. It cleared the rail as advertised.
A***s
Greece
Verified Purchase
5.0
2025-07-30
We had one port that dropped to 100 megabit and blamed the jack, but it was the cable. The 10p8c mouth with eight cores trained at gigabit once we swapped the patch lead, and the tabs bit the plate at both sides. 200 insertions on the top port and nothing bent. 7 units built, good.
Q***n
Verified Purchase
5.0
2025-03-27
Two mouths, one window green only. The lamps matched the sheet on colour.
