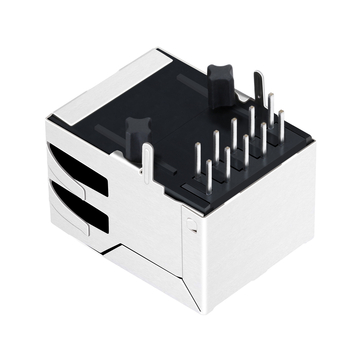

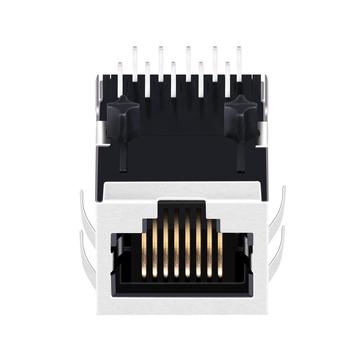

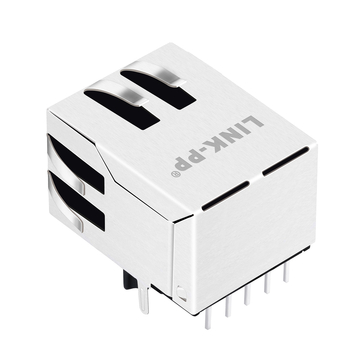

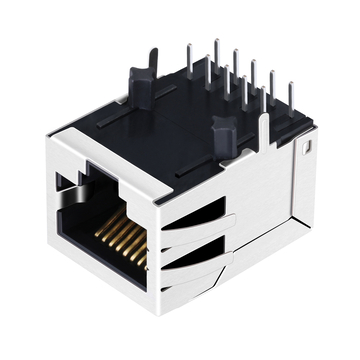

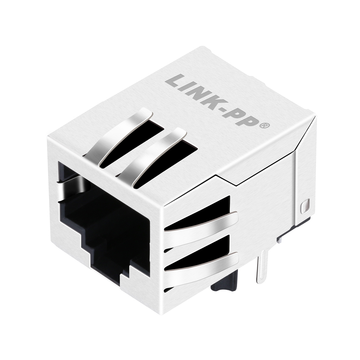

LPJG26943-8CNL 1000 base-t 1x2 port rj45 magjack tab down without led
Click to open expanded view

LPJG26943-8CNL 1000 Base-T 1x2 Port RJ45 Magjack Tab Down Without LED

Product summary

Product
LPJG26943-8CNL 1000 Base-T 1x2 Port RJ45 Magjack Tab Down Without LED
SKU
179683
P/N
LPJG26943-8CNL
Price
$ 6.78
Stock
1300 in Stock
Sold
9.7K
Unit price $ 6.78
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG26943-8CNLSKU: 179683

LINK-PP originalDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJG26943-8CNL
Volume pricing Online tiers · larger qty or custom price on request
$ 6.780
1–99 pcs
$ 5.558
100–599 pcs
$ 4.880
600–1,199 pcs
$ 3.728
1,200–5,999 pcs
$ 3.186
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1300 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 30
Total Price:
$ 6.78
Packaging Details
30 pcs
600 pcs
Tray
37×30×30 cm
0.017 kg
10 kg

LINK-PP LPJG26943-8CNL 1000 Base-T RJ45 1x2 Port MagJack PCB Connectors (Tab Down,Without LED)

The LPJG26943-8CNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Optical Terminal ,Game Controller and Automation.

LINK-PP Part Number LPJG26943-8CNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x2 Port Speed 10/100/1000 Base-T
Latch Down Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Without

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.527/13.39 Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm) 1.213/30.80 Temperature -40℃ TO 85℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG26943-8CNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The shell is 13.39 mm high and 30.80 mm wide. Our 1U panel is 44 mm tall, so the jack sits with room above. The mouths line up with the cutout. The label sits beside them. by LINK-PP Technical Support
  • A:
    The console sends sACN at about 8 Mb/s across the rig. Our nodes are gigabit capable, so the port is never the limit. We run them at 1000 with room for a second universe. The rig has 24 nodes in total. by LINK-PP Technical Support
  • A:
    Our lighting rig runs in blackout and any light on the rack is a problem. A lamp free shell stays dark at the front. Two mouths still give us the main and backup paths. No tape over the lenses. by LINK-PP Technical Support

Customer Reviews

  • 5

    27 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (27)
No data
M***d
Verified Purchase
5.0
2026-11-15
Latch down, both boots hidden behind the rail. The second order had the same feel.
H***t
Verified Purchase
5.0
2026-06-21
Eight cores each. It sat within spec at both temperature ends.
M***i
Verified Purchase
5.0
2026-03-14
One body, two mouths, one shield can, which cut our part count on the line. It dropped in with the same pin out. =)
B***g
Verified Purchase
5.0
2025-10-17
Ten positions, eight loaded. It matched the old footprint, as described.
E***g
Verified Purchase
5.0
2025-06-02
Shield tabs bit the panel on the first press. It matched the sheet on every dimension.
