LPJG27305A47NL 10 100 1000 base-t 1x2 port gigabit rj45 magjack tab up green&yellow green&yellow led

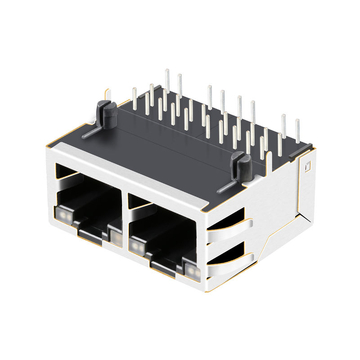

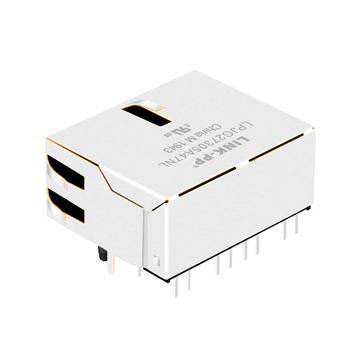

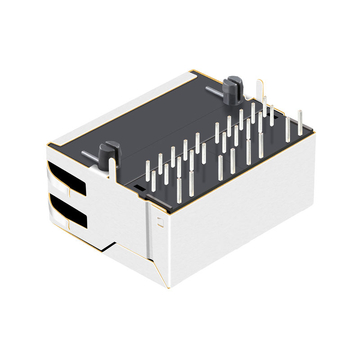

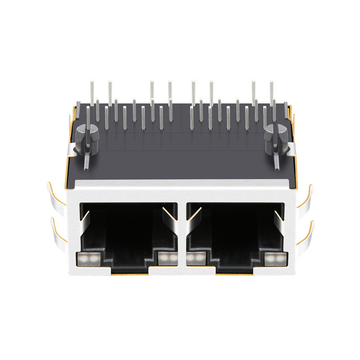

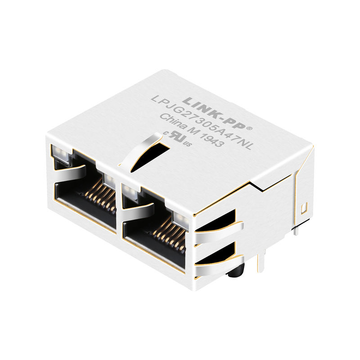

LPJG27305A47NL 10/100/1000 Base-T 1x2 Port Gigabit RJ45 Magjack Tab Up Green&Yellow/Green&Yellow LED

Product summary

Product
LPJG27305A47NL 10/100/1000 Base-T 1x2 Port Gigabit RJ45 Magjack Tab Up Green&Yellow/Green&Yellow LED
SKU
104394
P/N
LPJG27305A47NL
Price
$ 7.94
Stock
2406 in Stock
Sold
21.5K
Unit price $ 7.94
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJG27305A47NLSKU: 104394

LINK-PP original3D ModelAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJG27305A47NL
Volume pricing Online tiers · larger qty or custom price on request
$ 7.940
1–99 pcs
$ 6.508
100–599 pcs
$ 5.715
600–1,199 pcs
$ 4.365
1,200–5,999 pcs
$ 3.730
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2406 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 18
Total Price:
$ 7.94
Packaging Details
18 pcs
324 pcs
Tray
37×30×30 cm
0.017 kg
11 kg

1X2 Port Ethernet RJ45 Jack with 10/100/1000 Base-T Integrated Magnetics, Green&Yellow/Green&Yellow LED,Tab Up,RoHS

LINK-PP Part Number: LPJG27305A47NL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 10p10c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x2 Port Speed 10/100/1000 Base-T
Latch Up Cores per Port 12
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green&Yellow/Green&Yellow Leds

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.531/13.50 Package Length (Inches/mm)

1.00/25.40

Package Width (Inches/mm) 1.165/29.6 Temperature 0℃ TO 70℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

3D Model LPJG27305A47NL.zip
3D Model LPJG27305A47NL.glb

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Each tier carries its own pair of colour lenses, so firmware must assign what each one means before the panel is released. We made green a steady link and yellow a blink on activity, noting it on the legend and in the operator guide. A reversed emitter on a first article stayed off until a cable went live and showed it, so we now check every window on its own. Reusing one colour rule for the whole range spares field crews the guesswork. by LINK-PP Technical Support
  • A:
    A port that handles ten, hundred and gigabit rates negotiates the speed with its partner, so the board never chooses it. We exercised the port at all three rates on the bench and read the PHY reported speed, then kept auto negotiation on rather than fixing a rate. On one early build a pair fell back to a hundred megabits and remained there, something the error counters explained afterwards. Keep the termination matched for the fastest link so the gigabit rate is not the one that suffers. by LINK-PP Technical Support
  • A:
    A tab that lifts upward needs room above the opening, or a part mounted over the port will block the technician's thumb. We drew the cable boot path in the mechanical review and left the bezel lip short at that spot, then fitted a plugged lead with the board in place. Our early prototype had a cross member sitting above the opening, and moving it meant one sheet metal tweak instead of a board respin. Leave the clearance on the drawing so later enclosures do not quietly trim it away. by LINK-PP Technical Support
  • A:
    Two ports sit one above the other in a single column, so the order must be fixed before the artwork is drawn. We read the upper opening as port one and the lower as port two, then matched the silkscreen, the PHY map and the patch label to that rule. A build once wired the cable to the wrong tier because the order was unclear, which cost a tracing session. We mark the split with a notch on the legend. Settle the tier order before the labels reach the vendor. by LINK-PP Technical Support

Customer Reviews

  • 5

    64 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (64)
No data
I***y
Canada
Verified Purchase
5.0
2026-11-16
A handy twin gigabit block.
A***n
Thailand
Verified Purchase
4.0
2026-02-07
One of the two units had a scratched bezel around the top row, yet both ports trained a clean 1G link on the gateway.
E***d
Indonesia
Verified Purchase
5.0
2025-08-05
We have run this pair through three gateway revisions and both ports have been reliable at 1G. :-)
J***r
Hungary
Verified Purchase
5.0
2024-10-13
Two gigabit ports on a 29.6 mm body went into our gateway board and saved us a second jack. Ten contacts per port took the extra pair our design needed for the 1G link. EMI tabs are fitted, which our EMC guy wanted from the start, and both rows show green and yellow.
H***n
France
Verified Purchase
5.0
2024-02-16
Both rows light green and yellow with clean separation.
