halo hfj12-1g46er-l11rl compatible lpjg26818-8afnl 1000 base-t rj45 1x2 port gigabit magnetic jacks tab down green green led
Click to open expanded view

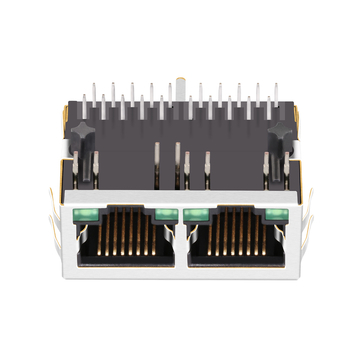

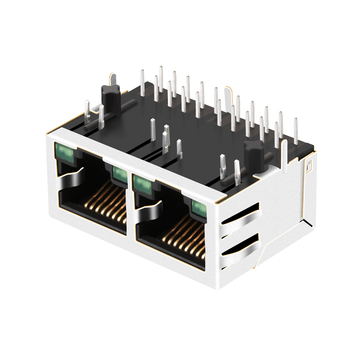

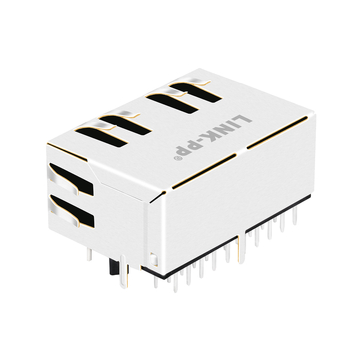

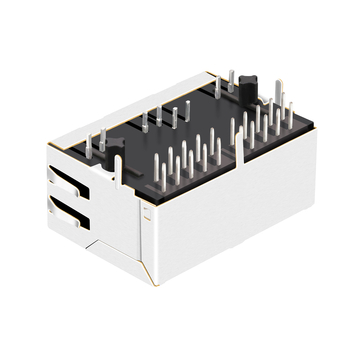

Halo HFJ12-1G46ER-L11RL Compatible LPJG26818-8AFNL 1000 Base-T RJ45 1x2 Port gigabit magnetic jacks Tab Down Green/Green Led

Product summary

Product
Halo HFJ12-1G46ER-L11RL Compatible LPJG26818-8AFNL 1000 Base-T RJ45 1x2 Port gigabit magnetic jacks Tab Down Green/Green Led
SKU
180581
P/N
LPJG26818-8AFNL
Price
$ 6.72
Stock
999 in Stock
Sold
9.1K
Unit price $ 6.72
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG26818-8AFNLSKU: 180581

Compatible with Halo HFJ12-1G46ER-L11RLDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
HFJ12-1G46ER-L11RL
Volume pricing Online tiers · larger qty or custom price on request
$ 6.720
1–99 pcs
$ 5.510
100–599 pcs
$ 4.838
600–1,199 pcs
$ 3.696
1,200–5,999 pcs
$ 3.158
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
999 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 30
Total Price:
$ 6.72
Packaging Details
30 pcs
600 pcs
Tray
37×30×30 cm
0.017 kg
10 kg

Halo HFJ12-1G46ER-L11RL Compatible LINK-PP LPJG26818-8AFNL 1000 Base-T RJ45 1x2 Port gigabit magnetic jacks (Tab Down,Green/Green LED)


The LPJG26818-8AFNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Optical Terminal ,Game Controller and Automation.


LINK-PP Part Number
LPJG26818-8AFNL Halo Part Number
HFJ12-1G46ER-L11RL
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x2 PortSpeed
10/100/1000 Base-T
Latch
DownCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.527/13.39Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
1.213/30.80
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG26818-8AFNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Yes, either jack can be used on its own; the other port simply stays unconnected, and the page lists no strap that has to be fitted to enable one side. AutomDX is marked YES for the variant, so straight and crossover cables both negotiate without changing the board. Keep the unused pair terminations and centre taps handled as the PHY vendor specifies rather than leaving the pins floating at the connector. Both green indicators still work independently, which helps when only one link is live. by LINK-PP Technical Support
  • A:
    Bst Circuit Yes means the Bob Smith common mode termination is already inside the jack, so you do not add the 75 ohm network on the unused pairs. Diodes No only says there are no clamping diodes on those lines; put such parts on the host board if needed. Keep each centre tap decoupled as the PHY datasheet requires and do not join the two ports together. Our layout followed the 1CT:1CT ratio and passed the noise scan without extra parts. Check it on your chassis. by LINK-PP Technical Support
  • A:
    The latch points down and the plug enters from the side, so the body lies flat on the board with the opening facing the chassis front. Put the part at the board edge, keep the 30.80mm width along the front rail, and leave the 21.30mm length clear behind the panel for the cable bend. Check that PCB Mount Angle reads SIDE ENTRY on your drawing, and confirm the retaining post holes before releasing Gerbers; a reversed footprint puts both green indicators on the wrong side of the faceplate. by LINK-PP Technical Support
  • A:
    These LEDs are indicators inside the jack, so they still need current limiting from the host. Route each anode through its own resistor from the PHY supply and sink the cathode at the PHY LED pin, rather than tying both to one pin. Check the forward voltage before choosing the resistor and confirm the sink current allowed. Both indicators are green, so one resistor value normally suits both ports. Keep these pins away from the centre tap, which belongs to the data pair termination. by LINK-PP Technical Support
