LPJG26820B32NL 1000 base-t rj45 1x2 connector magnetic jacks tab down with green green&yellow led
Click to open expanded view

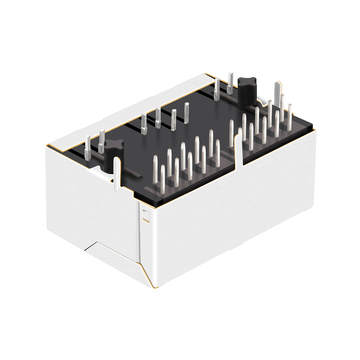

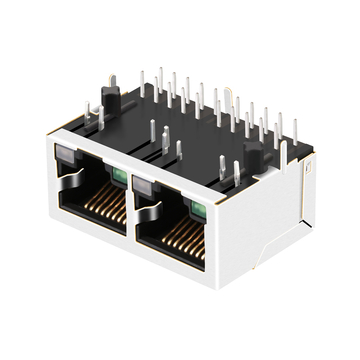

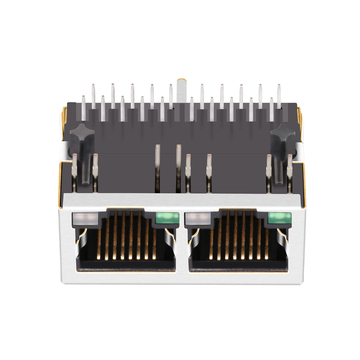

LINK-PP LPJG26820B32NL 1000 Base-T RJ45 1x2 Connector magnetic jacks Tab Down With Green/Green&Yellow Led

Product summary

Product
LINK-PP LPJG26820B32NL 1000 Base-T RJ45 1x2 Connector magnetic jacks Tab Down With Green/Green&Yellow Led
SKU
212999
P/N
LPJG26820B32NL
Price
$ 6.80
Stock
10 in Stock
Sold
9.1K
Unit price $ 6.80
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG26820B32NLSKU: 212999

LINK-PP originalDatasheetAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJG26820B32NL
Volume pricing Online tiers · larger qty or custom price on request
$ 6.800
1–99 pcs
$ 5.576
100–599 pcs
$ 4.896
600–1,199 pcs
$ 3.740
1,200–5,999 pcs
$ 3.196
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
10 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 30
Total Price:
$ 6.80
Packaging Details
30 pcs
600 pcs
Tray
37×30×30 cm
0.017 kg
10 kg

LINK-PP LPJG26820B32NL 1000 Base-T RJ45 1x2 Connector magnetic jacks (Tab Down,Green/Green&Yellow Led)

The LINK-PP LPJG26820B32NL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Optical Terminal ,Game Controller and Automation.

LINK-PP Part Number LPJG26820B32NL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x2 Port Speed 10/100/1000 Base-T
Latch Down Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green/Green&Yellow

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.527/13.39 Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm) 1.213/30.80 Temperature 0℃ TO 70℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG26820B32NL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    It means the release clip is on the underside of the plug when mated, so the cable naturally runs down and away. On a rear panel at bench height that keeps the clip out of the way of whatever sits above the port, which on our chassis was a fan tray. by LINK-PP Technical Support
  • A:
    The page does not state a PoE rating, so I would not assume one. The magnetics inside are sized for the data path, and PoE current adds heating in the centre taps. If you need PoE, ask LINK-PP for the rating in writing rather than inferring it from a gigabit magjack. by LINK-PP Technical Support
  • A:
    The page does not say, and with green on both ports the listing alone will not tell you. On our samples the left LED is link and the right one blinks with traffic on both ports. Buzz out a sample before you commit silkscreen labels, because this is the kind of thing that gets printed wrong once and stays. by LINK-PP Technical Support
  • A:
    Yes, this is a magjack, so the isolation transformers and the common mode chokes are inside the shielded can. That is why the height is 13.39mm rather than the 11mm you would see on a plain jack. You still need the PHY side termination on your board. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    23 Reviews

  • 5 Stars
    91%
    4 Stars
    9%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (23)
No data
H***p
Verified Purchase
4.0
2026-11-16
One reel had a torn cover tape, yet both ports linked at 1G and the lamps held up reading link.
N***h
Verified Purchase
5.0
2026-11-05
Our switch board needed a pair of 1G ports in one part, and this jack puts both in 21.30 mm of length. Magnetics with 8 cores per port sit inside, which keeps the PHY side clean. Latch down suits a cable run from the top of the rack and lets the patch leads stay short.
C***y
Verified Purchase
5.0
2026-10-24
One 1x2 jack, two clean gigabit ports.
V***g
Verified Purchase
5.0
2026-10-13
Latch down cleared the rack rail and both ports came up first time. :-)
R***n
Hungary
Verified Purchase
4.0
2026-10-13
Four stars because the page never says which LED is link and which is activity, and with green on both sides you cannot tell from the listing. We had to buzz it out on a sample.
