LPJG26818-8CNL 1000 base-t rj45 1x2 port magnetic jacks tab down without led
Click to open expanded view

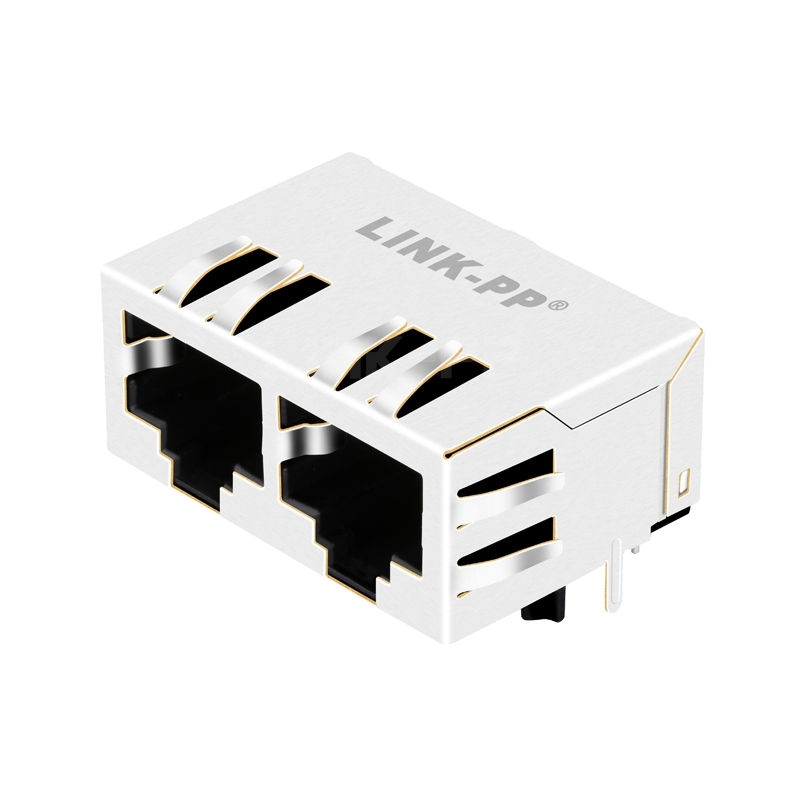

LPJG26818-8CNL 1000 Base-T RJ45 1x2 Port magnetic jacks Tab Down Without Led

Product summary

Product
LPJG26818-8CNL 1000 Base-T RJ45 1x2 Port magnetic jacks Tab Down Without Led
SKU
180421
P/N
LPJG26818-8CNL
Price
$ 6.60
Stock
2100 in Stock
Sold
9.9K
Unit price $ 6.60
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG26818-8CNLSKU: 180421

LINK-PP originalDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJG26818-8CNL
Volume pricing Online tiers · larger qty or custom price on request
$ 6.600
1–99 pcs
$ 5.412
100–599 pcs
$ 4.752
600–1,199 pcs
$ 3.630
1,200–5,999 pcs
$ 3.102
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2100 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 30
Total Price:
$ 6.60
Packaging Details
30 pcs
600 pcs
Tray
37×30×30 cm
0.017 kg
10 kg

LINK-PP LPJG26818-8CNL 1000 Base-T RJ45 1x2 Port magnetic jacks (Tab Down,Without LED)


The LPJG26818-8CNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Optical Terminal ,Game Controller and Automation.


LINK-PP Part Number
LPJG26818-8CNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x2 PortSpeed
10/100/1000 Base-T
Latch
DownCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.527/13.39Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
1.213/30.80
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG26818-8CNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Both mouths are wired for all four pairs and each has its own magnetics block. The player pushes a gigabit stream to the screen and a hundred megabit log to the office. One part covers both jobs. by LINK-PP Technical Support
  • A:
    The plug goes in from below with the clip underneath. A technician reaches behind the shelf and pulls the boot free. Nothing on the cabinet needs a screwdriver for that swap. The room is back on air in under a minute. by LINK-PP Technical Support
  • A:
    One mouth feeds the room screen and the other feeds the back office log. Buying one body with two sockets saved a bracket and a cable run. The installer finishes a room in one pass. by LINK-PP Technical Support
  • A:
    The box stands in a dark rack and the lamps would only shine at the wall. We skipped the lens and kept the front as a clean moulding. Guests never see a port or a lamp on this unit anyway. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    31 Reviews

  • 5 Stars
    94%
    4 Stars
    6%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (31)
No data
F***e
Verified Purchase
5.0
2026-11-15
Ten contacts per opening, both openings populated, so the board gets two full gigabit ports from one placement. We moved a wall cabinet off two separate jacks, and the wiring behind it got simpler. No surprises on the insertion loss.
D***n
Verified Purchase
4.0
2026-05-29
LPJG26818-8CNL came in a carton that had been scuffed in transit, though the blocks were fine. Same outline as the lamp version, so the plate does not change.
B***y
Verified Purchase
5.0
2025-11-30
Gigabit pair block, no lamp. It held up at full rate through the burn-in.
R***g
Verified Purchase
5.0
2025-07-15
Tab down on both, same as the lamp part. The tab cleared the housing as expected.
H***n
Verified Purchase
5.0
2025-03-28
Two openings on one body, one press. No fuss seating it on the header.
