hanrun hr971475c compatible lpjg48853awnl rj45 1x4 port gigabit magnetic jacks 1000 base-t tab up green green led
Click to open expanded view

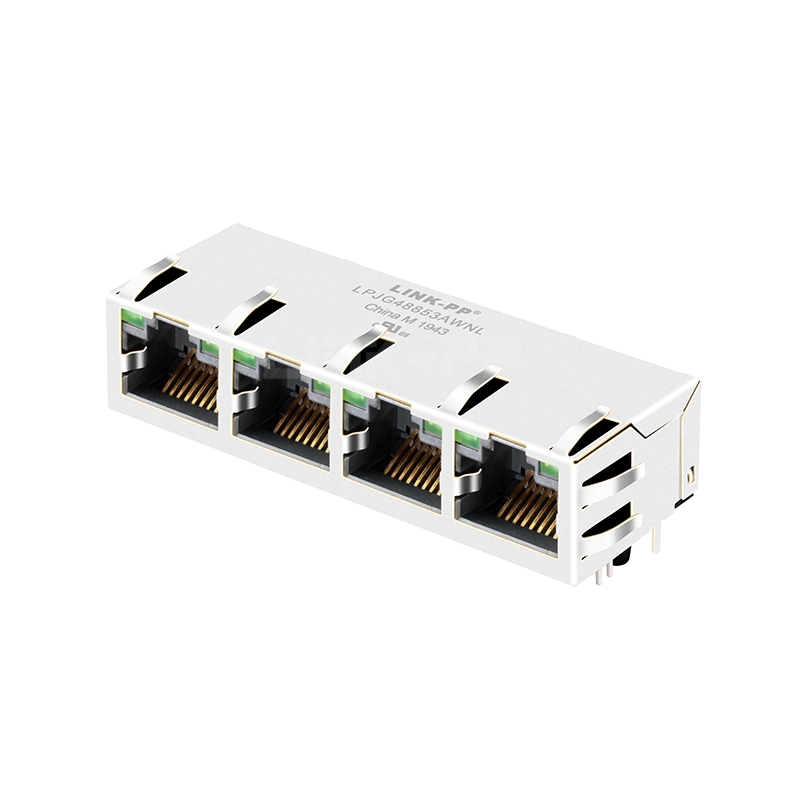

Hanrun HR971475C Compatible LPJG48853AWNL RJ45 1x4 Port Gigabit Magnetic Jacks 1000 Base-T Tab Up Green/Green Led

Product summary

Product
Hanrun HR971475C Compatible LPJG48853AWNL RJ45 1x4 Port Gigabit Magnetic Jacks 1000 Base-T Tab Up Green/Green Led
SKU
177473
P/N
LPJG48853AWNL
Price
$ 10.16
Stock
2100 in Stock
Sold
11.9K
Unit price $ 10.16
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG48853AWNLSKU: 177473

Compatible with Hanrun HR971475CDatasheetAll downloads

Compatible P/N:
HR971475C
Volume pricing Online tiers · larger qty or custom price on request
$ 10.160
1–99 pcs
$ 8.432
100–599 pcs
$ 7.213
600–1,199 pcs
$ 6.400
1,200–5,999 pcs
$ 5.689
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2100 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 20
Total Price:
$ 10.16
Packaging Details
20 pcs
400 pcs
Tray
37×30×30 cm
0.025 kg
10 kg

Hanrun HR971475C Compatible LINK-PP LPJG48853AWNL 10/100/1000 Base-T RJ45 1x4 Gigabit Magnetic Jacks for Optical Terminal and Bluray (1x4 Port ,Tab Up,Green/Green LED)


The LPJG48853AWNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Optical Terminal, Bluray,DVD and Webcams.


LINK-PP Part Number:
LPJG48853AWNL Hanrun Part Number
HR971475C
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x4 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.000/25.40

Package Width (Inches/mm)
2.330/59.20
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG48853AWNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The row is 59.20 mm across and the body stands 13.50 mm tall. Depth is 25.40 mm behind the cover plate. That matched the old sheet metal, so we reused the existing enclosure. Retrofitting a gantry took one night shift. by LINK-PP Technical Support
  • A:
    Both lenses are green and sit at the outer ends. We drive the left one from the uplink and the right one from lane traffic. A technician standing on the deck reads them from either side. by LINK-PP Technical Support
  • A:
    The gantry sits near a coastal toll plaza and salt fog covers it in winter. Gold plating on the contacts and a full shield have held for three years. Our yearly inspection found no green on the tails or the shell. The readers still link at full speed. by LINK-PP Technical Support
  • A:
    The lane readers sit below the board and their leads rise into the box. With the clip on top the plug drops in from above. The cover then closes over all four boots without pinching one. We fitted sixteen gantries that way. by LINK-PP Technical Support
  • A:
    The gantry box collects four lane readers into one uplink. One block gives four mouths on a single controller board. A separate jack per lane would mean four cutouts and four seals. The weatherproof lid only has one opening to gasket. by LINK-PP Technical Support

Customer Reviews

  • 5

    59 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (59)
No data
B***y
Verified Purchase
5.0
2026-06-19
A green lens at each of the four, so every port reports for itself and you do not have to trace a cable to know which drop is live. Both lamps lit first try. =)
B***d
Verified Purchase
4.0
2025-10-30
The pallet had a missing corner board, though the row inside was straight. 13.50 mm matches the other four port part here, so one cutout template works for both. It matched the sheet on pitch.
M***k
Verified Purchase
5.0
2025-05-05
59.20 mm, the window length to check. It matched the sheet on every dimension.
Y***n
Verified Purchase
5.0
2025-01-22
LPJG48853AWNL, the four port row. The pin out matched the drawing line for line.
T***r
Verified Purchase
5.0
2024-05-09
Four openings in a line, one moulding. It pinned out first time.
