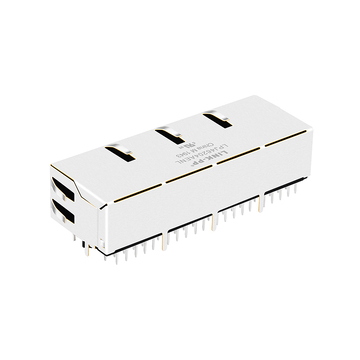

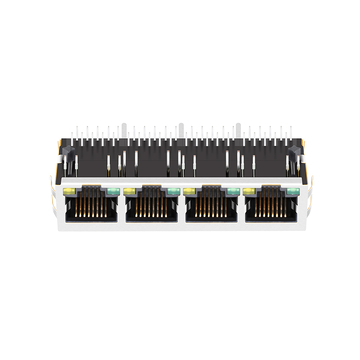

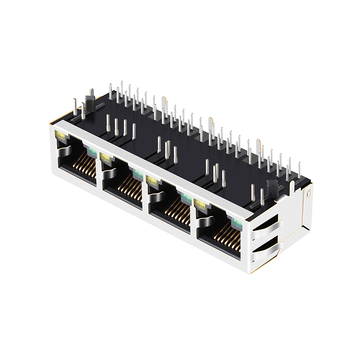

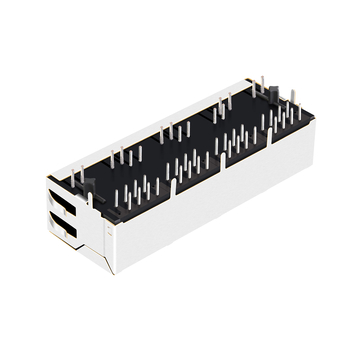

Hanrun HY911409B Compatible LPJ46204AENL 10/100 Base-T RJ45 1x4 Magnetic Jacks Tab Down Green/Yellow LED

Product summary

Product
Hanrun HY911409B Compatible LPJ46204AENL 10/100 Base-T RJ45 1x4 Magnetic Jacks Tab Down Green/Yellow LED
SKU
177462
P/N
LPJ46204AENL
Price
$ 7.58
Stock
1290 in Stock
Sold
18.7K
Unit price $ 7.58
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ46204AENLSKU: 177462

Compatible with Hanrun HY911409BDatasheet3D ModelAll downloads

Compatible P/N:
HY911409B
Volume pricing Online tiers · larger qty or custom price on request
$ 7.580
1–99 pcs
$ 6.219
100–599 pcs
$ 5.460
600–1,199 pcs
$ 4.171
1,200–5,999 pcs
$ 3.564
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1290 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 40
Total Price:
$ 7.58
Packaging Details
40 pcs
360 pcs
Tray
33×33×21 cm
0.023 kg
8.3 kg

Hanrun HY911409B Compatible LINK-PP LPJ46204AENL 10/100 Base-T RJ45 1x4 Magnetic Jacks for Network Firewall and SMPS (Tab Down ,Green/Yellow LED)


The LPJ46204AENL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Firewall, SMPS,Server and Switches.


LINK-PP Part Number:
LPJ46204AENL Hanrun Part Number HY911409B
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x4 PortSpeed
10/100 Base-T
Latch
DownCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.533/13.55Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
2.328/59.12
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ46204AENL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    That the tabs really contact the chassis and that the chassis-to-digital-ground strategy was decided during layout. The integrated magnetics and the built-in termination already shorten and match the signal side, but a shield with a long or intermittent return does very little against common mode noise. Test the error counters with the supply at full load, since that is the condition the product ships into. by LINK-PP Technical Support
  • A:
    Mostly, but verify it once against every PHY and every legacy device you expect to meet. Auto-MDIX is a negotiation between two ends, and some older management ports are fixed to one polarity. Keeping a single clearly labelled crossover in the kit is cheap insurance against a long drive for a problem that is not really a fault. by LINK-PP Technical Support
  • A:
    A four way block means one placement, one cutout and guaranteed port alignment, but a damaged contact takes the whole housing off the board. Four singles cost more to assemble and need four part numbers, yet a technician can swap one port in the field. For a high volume product that is never serviced in the field, the block usually wins; for low volume equipment with a long service life, the calculus can flip. by LINK-PP Technical Support
  • A:
    They describe different things. 8p8c is the mechanical interface of the plug, while four cores is how many contacts are actually brought through the magnetics for a 10/100 PHY, which uses two pairs. Reading the contact count as a gigabit capability is a common and expensive mistake. Select on the speed line and the cores line together, and confirm against the schematic. by LINK-PP Technical Support
