halo hfj14-1g01erl compatible link-pp lpjgf46813cnl 10 100 1000 base-t tab down without led 1x4 port rj45 female connectors

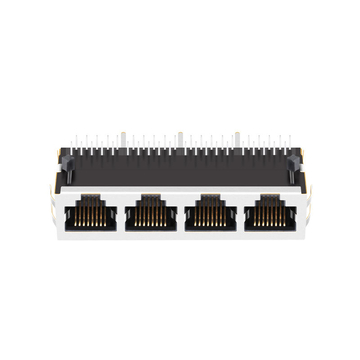

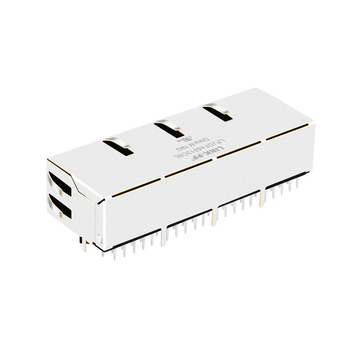

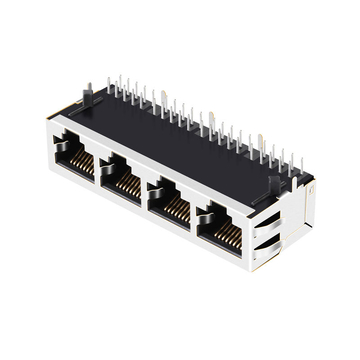

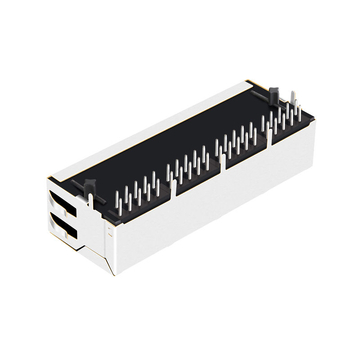

Halo HFJ14-1G01ERL Compatible LINK-PP LPJGF46813CNL 10/100/1000 Base-T Tab Down Without LED 1x4 Port RJ45 Female Connectors

Product summary

Product
Halo HFJ14-1G01ERL Compatible LINK-PP LPJGF46813CNL 10/100/1000 Base-T Tab Down Without LED 1x4 Port RJ45 Female Connectors
SKU
145762
P/N
LPJGF46813CNL
Price
$ 11.11
Stock
1200 in Stock
Sold
6K
Unit price $ 11.11
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJGF46813CNLSKU: 145762

Compatible with Halo HFJ14-1G01ERLDatasheet3D ModelAll downloads

Compatible P/N:
HFJ14-1G01ERL
Volume pricing Online tiers · larger qty or custom price on request
$ 11.110
1–99 pcs
$ 8.889
100–599 pcs
$ 7.444
600–1,199 pcs
$ 6.333
1,200–5,999 pcs
$ 5.556
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1200 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 20
Total Price:
$ 11.11
Packaging Details
20 pcs
400 pcs
Tray
37×30×30 cm
0.025 kg
10 kg

Halo HFJ14-1G01ERL Compatible LINK-PP LPJGF46813CNL 10/100/1000 Base-T Filtered Connectors for Switching Power and Network Firewall (1x4 Port , Tab Down ,Without LED)


The LPJGF46813CNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as VoIP Gateways, PoE Repeater,Switching Power and Network Firewall.


LINK-PP Part Number:
LPJGF46813CNL Halo Part Number HFJ14-1G01ERL
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x4 PortSpeed
10/100/1000 Base-T
Latch
DownCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.533/13.55Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
2.328/59.12
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJGF46813CNL Drawing LPJGF46813CNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Rated range is 0℃ to 70℃, which covers indoor switch and firewall chassis. Gold plating on the mating area is offered at 6, 15 or 30 micro inches. Through hole tails take the usual wave solder process. by LINK-PP Technical Support
  • A:
    The LPJGF46813CNL is listed for Ethernet without PoE, so power over the cable is outside its rating. Current carrying parts are sized for signal level loads. A PoE rated jack in the same family covers that case. by LINK-PP Technical Support
  • A:
    Tab down means the latch side faces the board, so the cable release points downward. The 1x4 row sits at a right angle to the PCB edge. Ports line up with one panel cutout across four positions. by LINK-PP Technical Support
  • A:
    This version has no LEDs, which keeps the front panel plain. Boards that already drive panel indicators elsewhere often pick it for that reason. The same family is offered with LED options. Part numbers with LEDs share the same footprint. by LINK-PP Technical Support
  • A:
    Magnetics are built into the jack, so the LPJGF46813CNL is a filtered connector. Eight cores per port handle the 10/100/1000 Base-T signal path. No external transformer is needed on the board. The filtered body takes the place of a transformer block. by LINK-PP Technical Support
