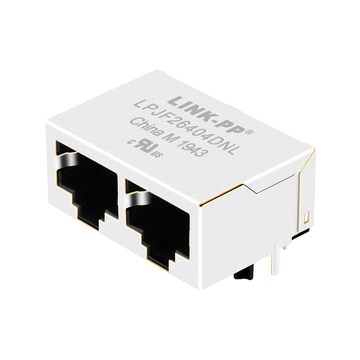

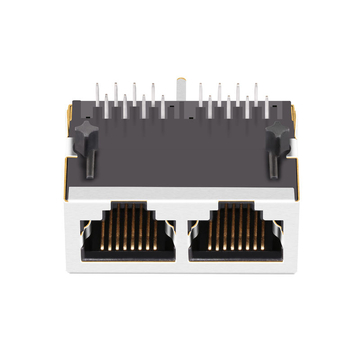

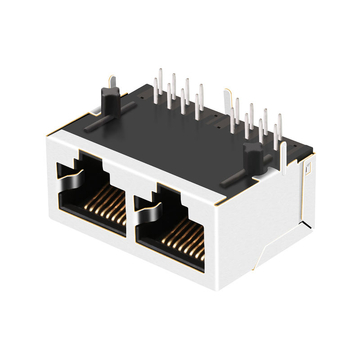

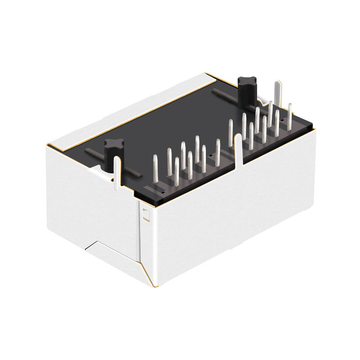

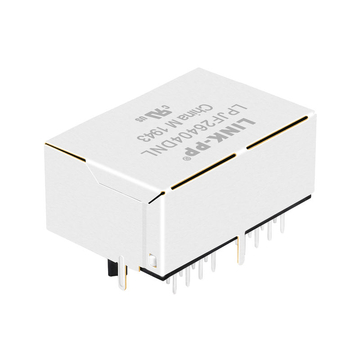

Moxie MOX-RJ45-204G Compatible LINK-PP LPJF26404DNL 10/100 Base-T 1x2 RJ45 Magjack Tab Down Without LED

Product summary

Product
Moxie MOX-RJ45-204G Compatible LINK-PP LPJF26404DNL 10/100 Base-T 1x2 RJ45 Magjack Tab Down Without LED
SKU
101827
P/N
LPJF26404DNL
Price
$ 4.31
Stock
1520 in Stock
Sold
3.9K
Unit price $ 4.31
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJF26404DNLSKU: 101827

Compatible with Moxie MOX-RJ45-204GDatasheet3D ModelAll downloads

Compatible P/N:
MOX-RJ45-204G
Volume pricing Online tiers · larger qty or custom price on request
$ 4.310
1–99 pcs
$ 3.533
100–599 pcs
$ 3.102
600–1,199 pcs
$ 2.370
1,200–5,999 pcs
$ 2.025
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1520 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 30
Total Price:
$ 4.31
Packaging Details
30 pcs
600 pcs
Tray
37×30×30 cm
0.015 kg
9 kg

Moxie MOX-RJ45-204G Compatible LINK-PP LPJF26404DNL 10/100 Base-T Lan Jack RJ45 for Ethernet Control and Switches (1x2 Port , Tab Down,Without LED)

The LPJF26404DNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Server, Network Firewall,Ethernet Control and Switches.

LINK-PP Part Number: LPJF26404DNL Moxie Part Number MOX-RJ45-204G
Part Status Active Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x2 Port Speed 10/100 Base-T
Latch Down Cores per Port 4
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs Without LED Option

Without Led

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.531/13.50 Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm) 1.231/31.28 Temperature -40℃ TO 85℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJF26404DNL Drawing LPJF26404DNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    As soon as the opening was tooled for a different length, even by a few tenths of a millimetre. Measure the 31.28mm width and the port to port pitch against the panel drawing before assuming a drop in replacement; the 8p8c contacts and the 1CT:1CT windings can be identical while the outline is not. We found 0.15mm clearance per side on our panel, enough for the Tab Down latches to release. Electrical testing will pass a block that later binds in the bezel. by LINK-PP Technical Support
  • A:
    From the switch counters and the PHY registers, since the housing gives no visual state. Read the negotiated rate and error counts on each port first, then check the centre tap bias and the Bst network on the board before suspecting the jack. On a shared 1x2 housing a single unconnected tap can leave one port dark while the other links normally, which looks like a dead connector. Our bring up script logs both ports rather than trusting a first day traffic test. by LINK-PP Technical Support
  • A:
    When cables approach from below or the panel is patched often. A downward pull on a Tab Down latch pushes the plug into its seated position instead of levering it out, which is why we picked this 1x2 for a lower row of ports. Tab Up is easier to release when there is free space above the connector. Neither changes the 100M electrical behaviour; it is a mechanical choice fixed by the enclosure, so confirm the cutout orientation before the layout freeze. by LINK-PP Technical Support
  • A:
    No. This variant carries Bst Circuit=Yes, so the Bob Smith resistors are built into the jack and a duplicate set on the host board would double the common mode load. Route the centre taps to the PHY bias as usual and leave the termination network off the BOM. What you do need to add is the chassis bond, because this part ships without shield tabs; mask a contact land on the panel and verify continuity at each end of the row. by LINK-PP Technical Support
